Mounting
3.1 Mounting the drive
SINAMICS V90, SIMOTICS S-1FL6
82 Operating Instructions, 04/2019, A5E36037884-007
Mounting orientation and clearance
The SINAMICS V90 200 V variant servo drives with rated power of 400 W and 750 W
support vertical mounting and horizontal mounting. Other drives support vertical mounting
only.

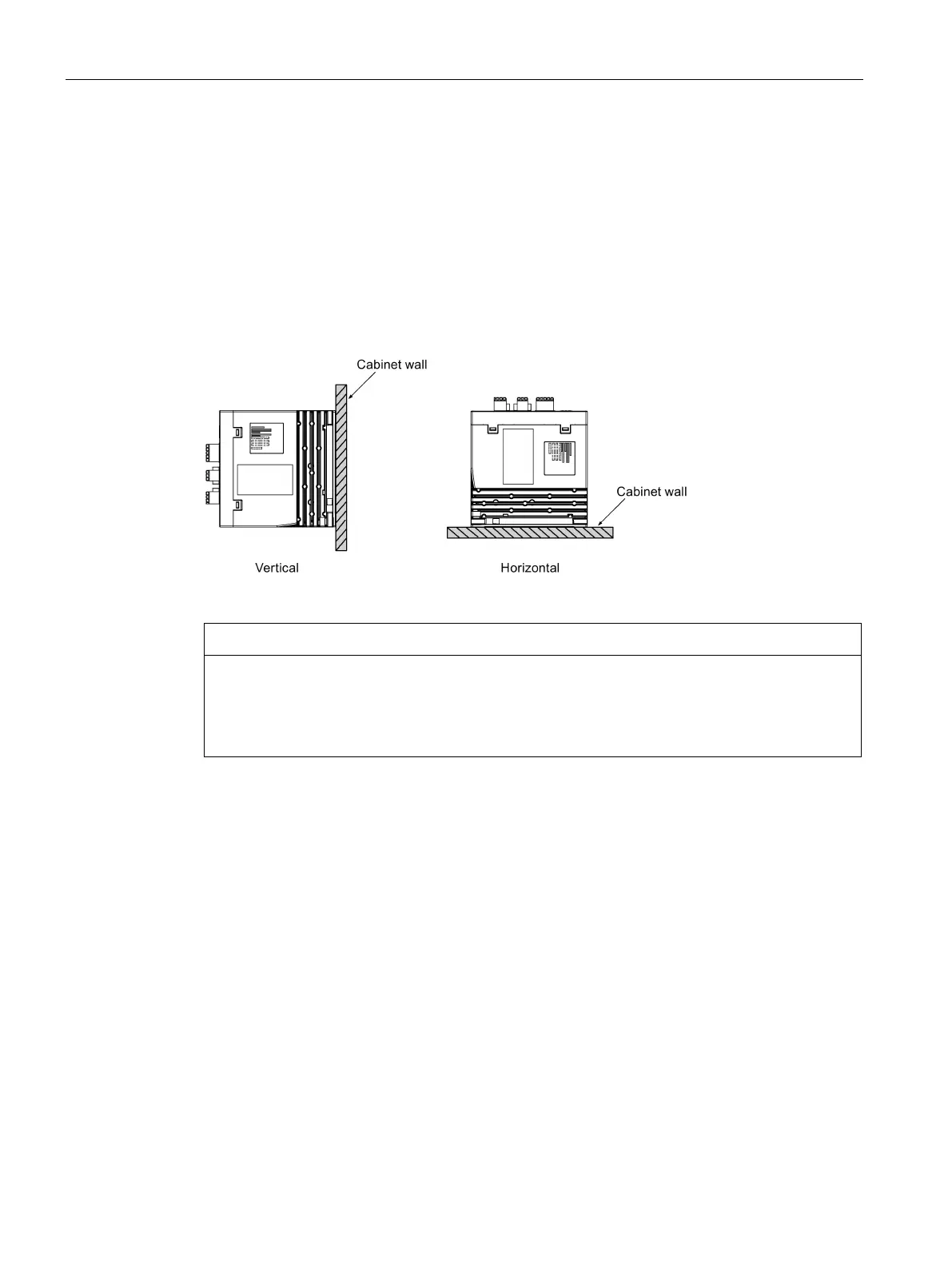

Mount the drive in a shielded cabinet by observing the mounting orientation and clearance
specified in the following illustrations.
Overheating due to inadmissible mounting orientation
If you use an inadmissible mounting orientation, the drives can overheat and therefore be
damaged.
• Always observe the mounting orientation required in the instruction.
