Basic operator panel (BOP)
6.1 BOP overview
SINAMICS V90, SIMOTICS S-1FL6
192 Operating Instructions, 04/2019, A5E36037884-007

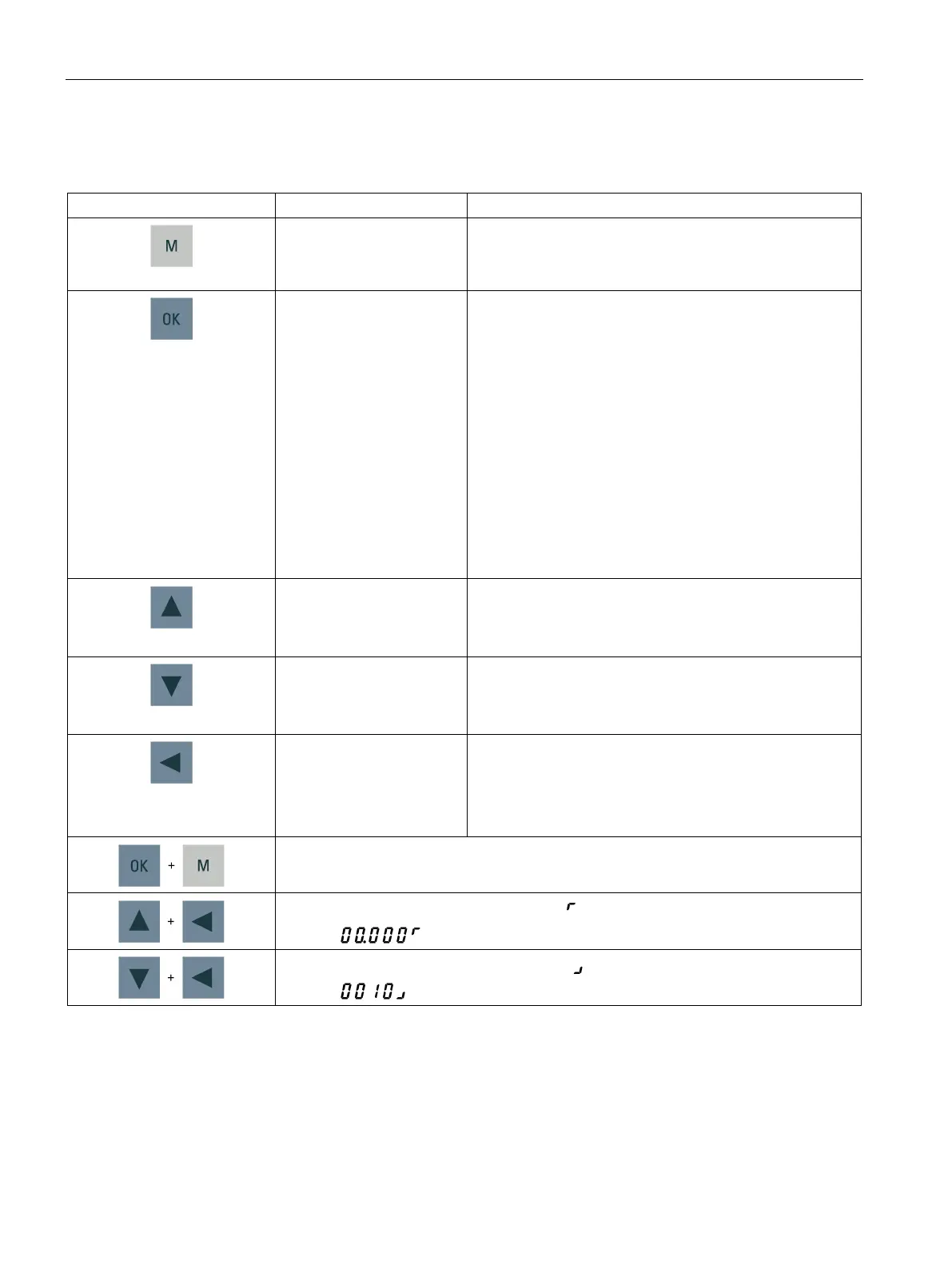

6.1.3
Control buttons
Button
Description
Functions
M button
• Exits from the current menu
• Switches between operating modes in the top level
menu
OK button Short-pressing:
• Confirms selection or input
• Enters sub menu
• Acknowledges faults
Long-pressing:
Activates auxiliary functions
• JOG
• Saves parameter set in drive (RAM to ROM)
• Sets parameter set to default
• Transfers data (drive to micro SD card/SD card)
• Transfers data (micro SD card/SD card to drive)
• Updates firmware
UP button
• Navigates to the next item
• Increases a value
• JOG in CW (clockwise)
DOWN button
• Navigates to the previous item
• Decreases a value
• JOG in CCW (counter-clockwise)
SHIFT button Moves the cursor from digit to digit for single digit editing,
including the digit of positive/negative sign
Note:
When the sign is edited, "_" indicates positive and "-" indi-
cates negative.
Press the key combination for four seconds to restart the drive
Moves current display to the left page when is displayed at the upper right corner, for
example
.
Moves current display to the right page when is displayed at the lower right corner, for
example
.
