Mounting
3.2 Mounting the motor
SINAMICS V90, SIMOTICS S-1FL6
Operating Instructions, 04/2019, A5E36037884-007
89
3.2.1
Mounting orientation and dimensions
Mounting orientation

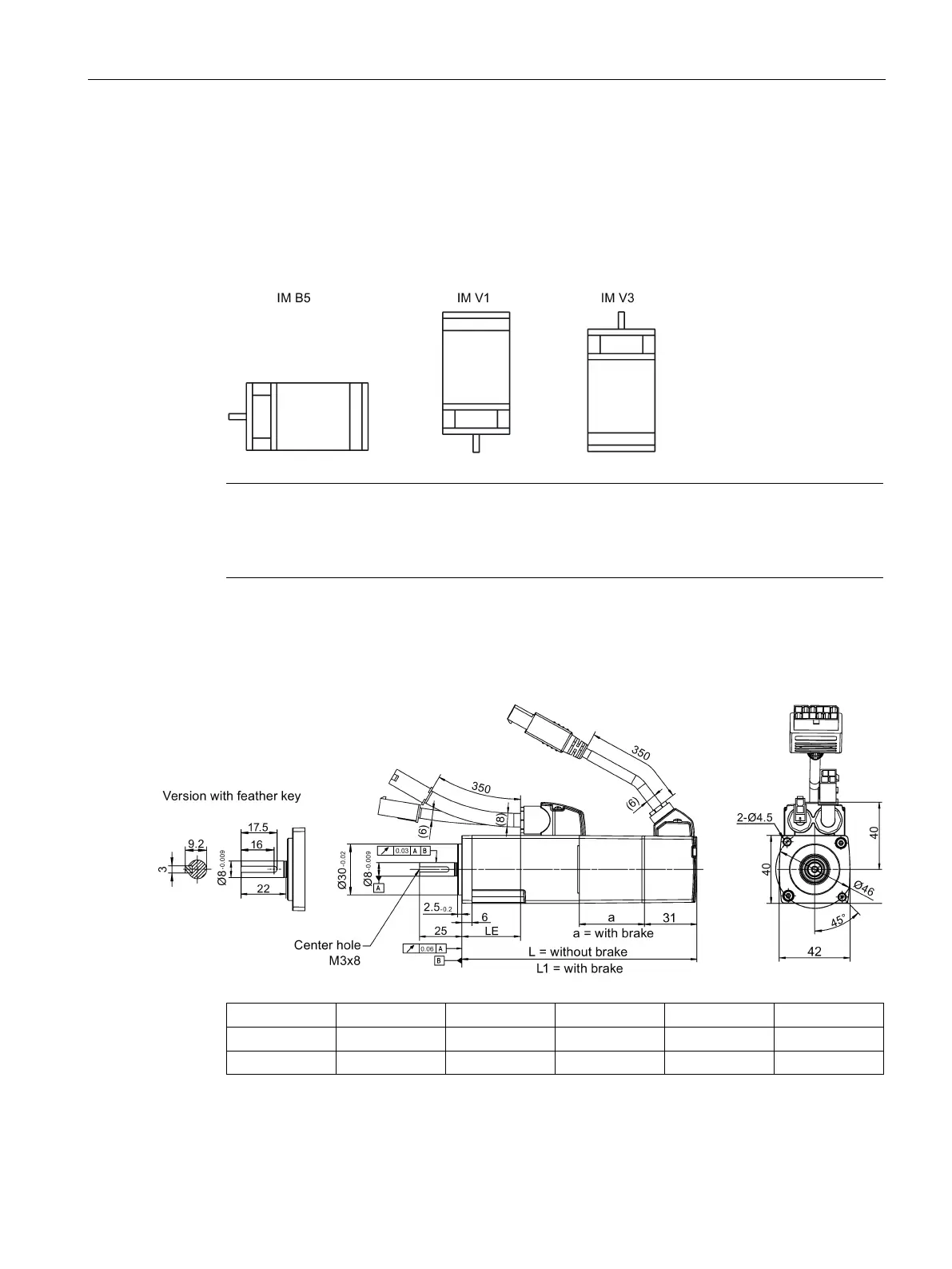

SIMOTICS S-1FL6 supports flange mounting only and three types of constructions, so it can
be installed in three orientations as shown in the following figure.
Note
When configuring the IM V3 type of construction, you need to pay particular attention to the
permissible axial fo
rce (weight force of the drive elements) and the necessary degree of
protection.
SIMOTICS S-1FL6 Low inertia servo motors (unit: mm)
Shaft height 20 mm
Rated power
Rated torque
a
L
L1
LE
0.05 kW 0.16 Nm 38.5 86 119 15
0.1 kW
0.32 Nm
38.5
106
139
35
