2.7 Technical data
SINAMICS V90, SIMOTICS S-1FL6
Operating Instructions, 04/2019, A5E36037884-007
61
2.7
Technical data
2.7.1

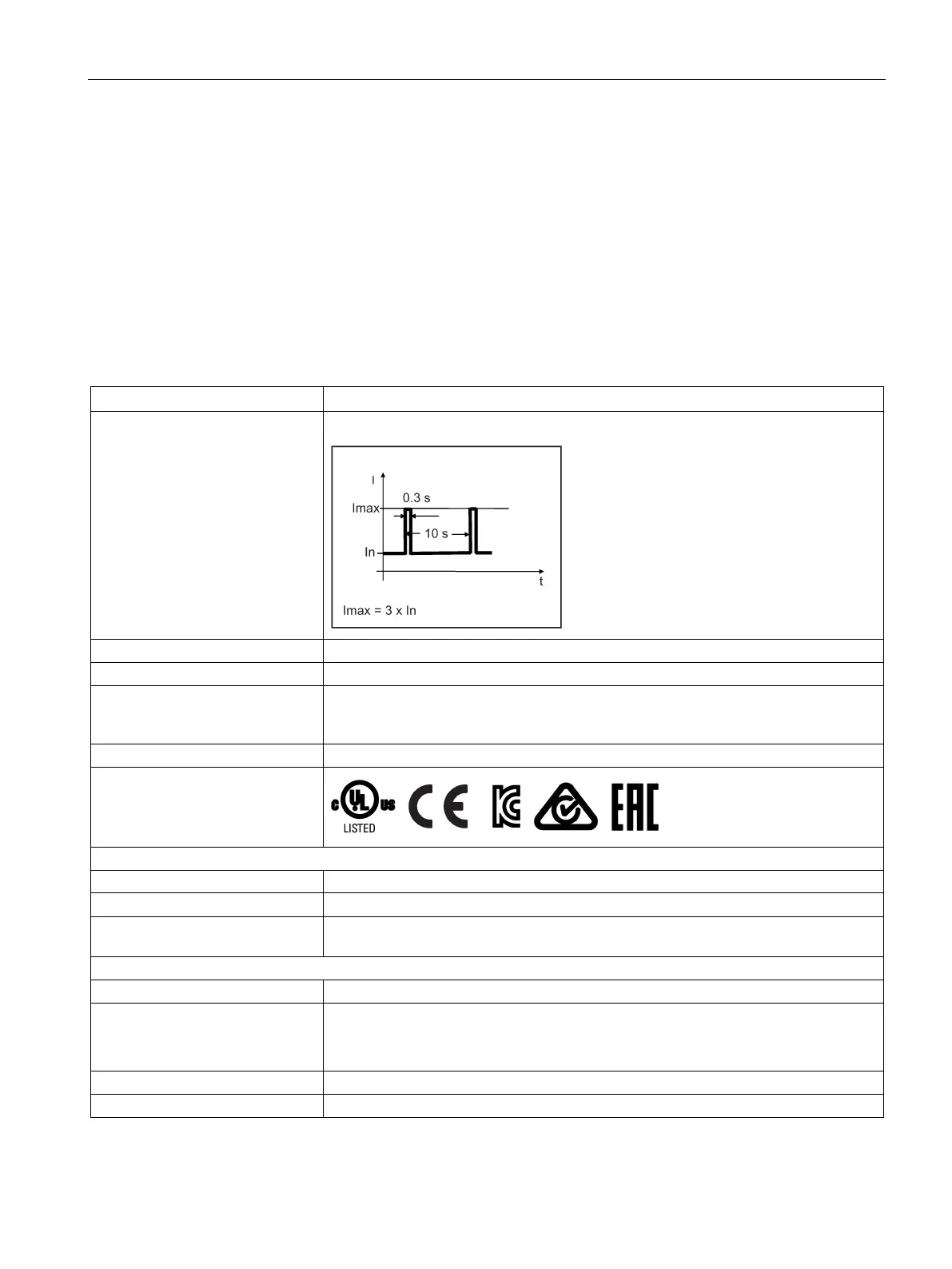

Technical data - servo drives
2.7.1.1
SINAMICS V90 200 V variant
General technical data
Parameter
Description
Overload capability 300%
Control system
Servo control
Dynamic brake
Built-in
Protective functions Earthing fault protection, output short-circuit protection
1)
, overvoltage/undervoltage
protection
2)
, drive I
2
t protection, motor overtemperature protection, IGBT overtemper-
ature protection
3)
Overvoltage criteria
Category III
Certification
Speed control mode
Speed control range
Analog speed command 1:2000, internal speed command 1:5000
Analog speed command input -10 V DC to +10 V DC/rated speed
Torque limit Set through a parameter or the analog input command (0 V DC to +10 V DC/max.
torque)
Position control mode
Max. input pulse frequency
1 M (differential input), 200 kpps (open collector input)
Command pulse multiplying factor Electronic gear ratio (A/B)
A: 1 - 10000, B: 1 - 10000
1/50 <A/B < 200
In-position range setting
0 to ±10000 pulse (command pulse unit)
Error excessive
±1/10 revolutions
