Appendix
A.1 Cable assembly
SINAMICS V90, SIMOTICS S-1FL6
412 Operating Instructions, 04/2019, A5E36037884-007
A.1.1.2

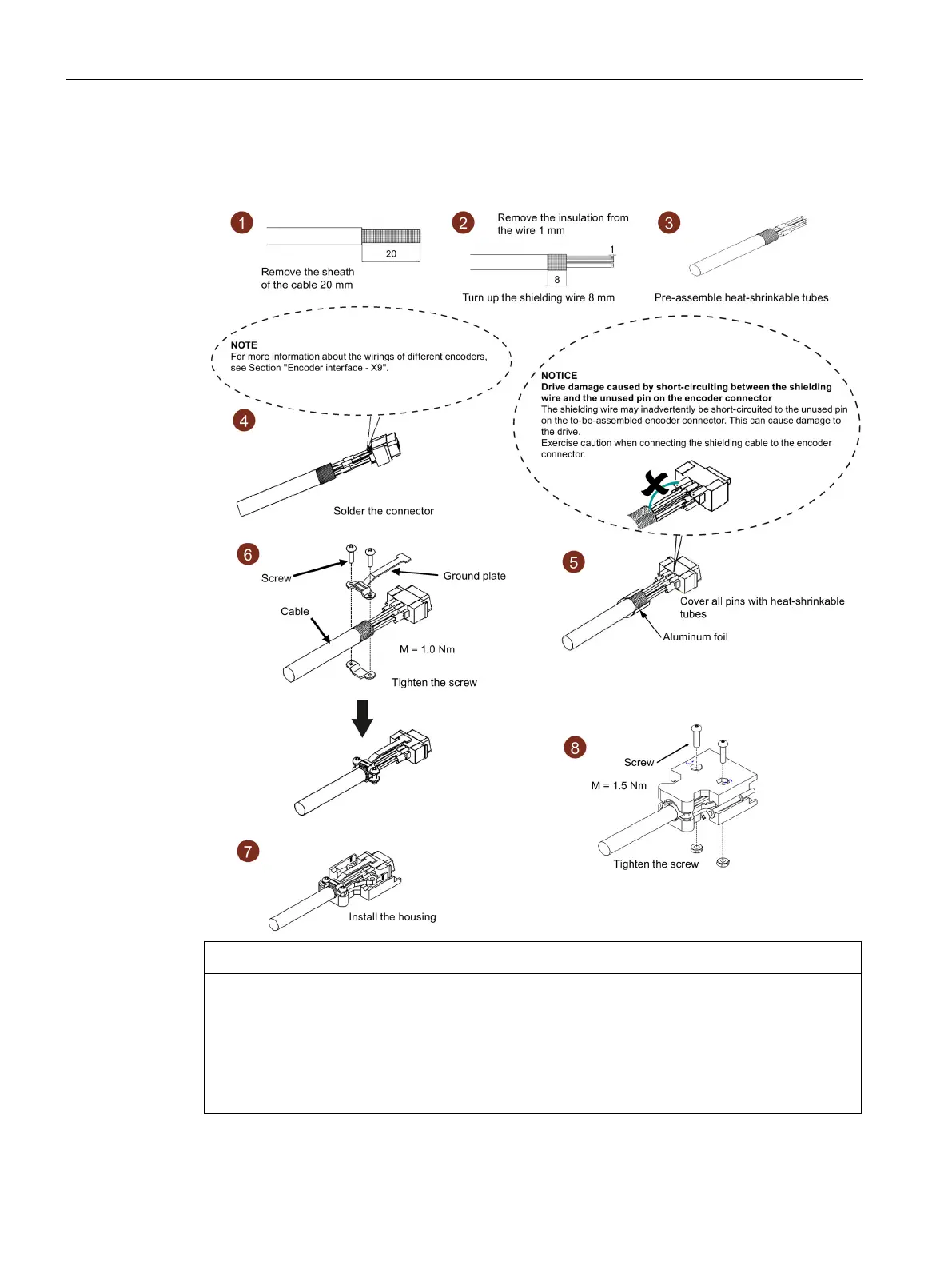

Encoder connector assembly
The assembly procedures for the encoder connector on the drive side are the same.
NOTICE
Drive damage caused by short-circuiting between the shielding wire and the unused pin on
the encoder connector
The shielding wire may inadvertently be short-circuited to the unused pin on the to-be-
assembled encoder connector. This can cause damage to the drive.
• When assembling the connector, exercise caution when connecting the shielding cable
to the encoder connector.
