Observe uniform configuration
Check if the offline configuration set via SIMOTION SCOUT (HW Config) corresponds exactly
to the online configuration set in the Station Configurator :

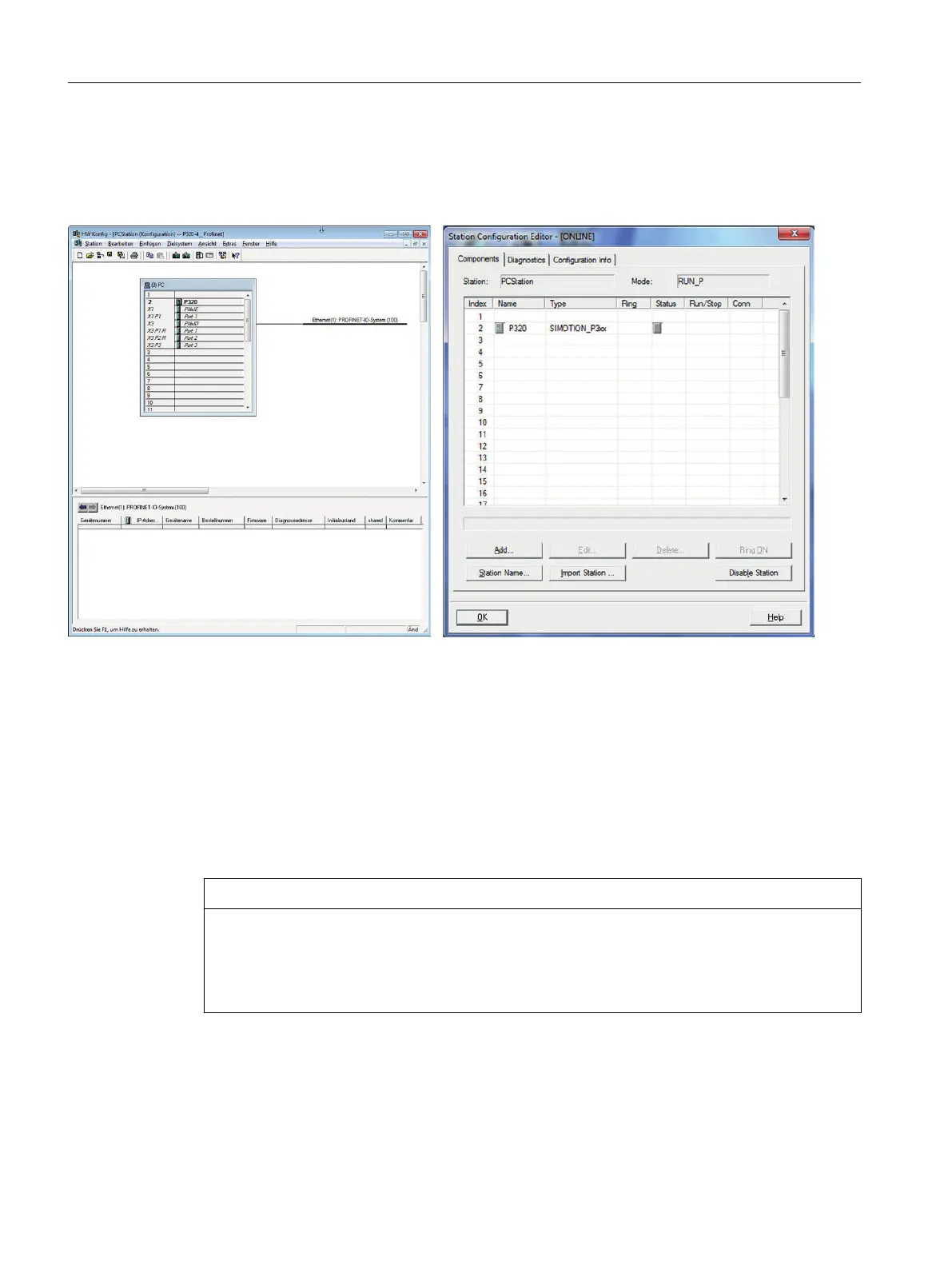

Figure 9-11 Illustration of the offline HW Config (left) - online Station Configurator (right)
9.5 Ethernet communication
9.5.1 Ethernet communication overview
SIMOTION P320-4 has one onboard Ethernet interface.
NOTICE
SIMOTION P Runtime
During SIMOTION P Runtime, the onboard Ethernet interface must be activated under
Windows.
The onboard Ethernet interface must not be deactivated or activated during operation.
You can connect Industrial Ethernet to the Ethernet interface X1.
Industrial Ethernet is a communication network with a transmission rate of 10/100/1000 Mbps.
Parameter assignment/addressing
9.5 Ethernet communication
SIMOTION P320-4 E / P320-4 S
140 Commissioning and Hardware Installation Manual, 11/2016
