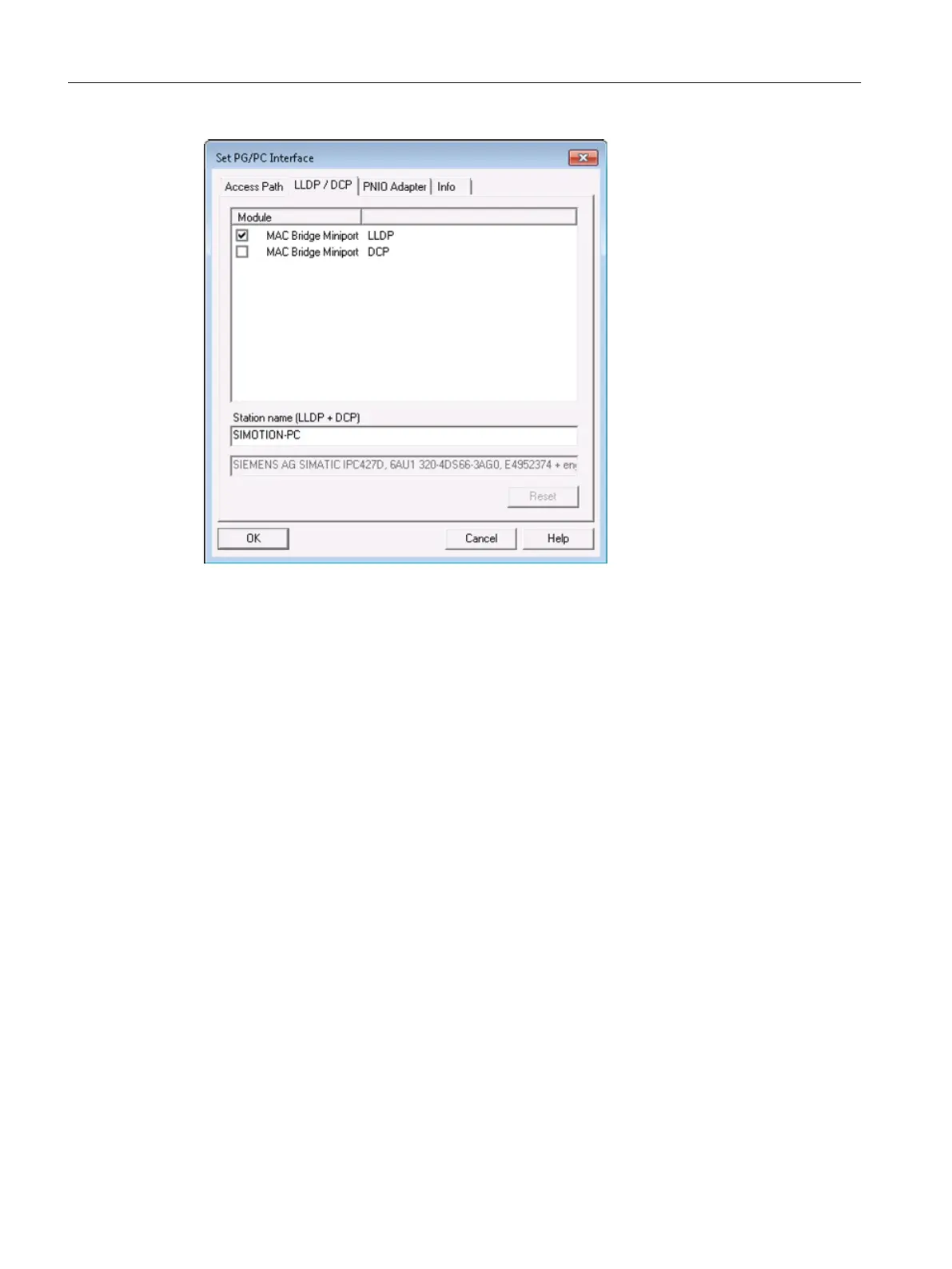

Figure 3-20 Set PG/PC interface
The settings for the network bridge have now been completed.
3.3.3 HMI or ES via PROFINET
Networking via PROFINET
PROFINET is the innovative and open Industrial Ethernet standard (EN 61158) for industrial
automation. With PROFINET, devices can be linked up from the field level through to the
management level.
With PROFINET, an external HMI or ES can also be integrated into the network and data can
be exchanged directly with the SIMOTION P320-4 device.
Description
3.3 HMI and SIMOTION SCOUT
SIMOTION P320-4 E / P320-4 S
72 Commissioning and Hardware Installation Manual, 11/2016
