The maximum ambient temperature of the SIMOTION P320‑4 depends on the mounting
position:
● Horizontal (preferred position): Maximum +55° C (in RAL)
● Vertical (power supply at the top): Maximum +45° C
● Suspended: Maximum +40° C
● Vertical mounting: Maximum +45° C
RAL = Restricted Access Location (installation of device in operating facilities with restricted
access, for example, a locked control cabinet)
Further information can be found in the SIMOTION P320‑4 E / P320-4 S Manual.
5.5 Withdrawing/inserting the CFast card
SIMOTION P320-4 has an external slot for a CFast card on the interface side. Always use
SIMATIC IPC CFast cards for industrial applications.
The CFast card is mandatory for operation of the SIMOTION P320-4. The CFast card is
supplied with the SIMOTION P320-4.
NOTICE
Damage to the device
The CFast and CompactFlash connections are not compatible. The device will be damaged.
Use the slot described in this section only for a CFast card.
Note
Note the version of the CFast card
Note the following:
● Always insert a CFast card as of production version 02.
● Always replace a CFast card with a CFast card of the same or higher production version.

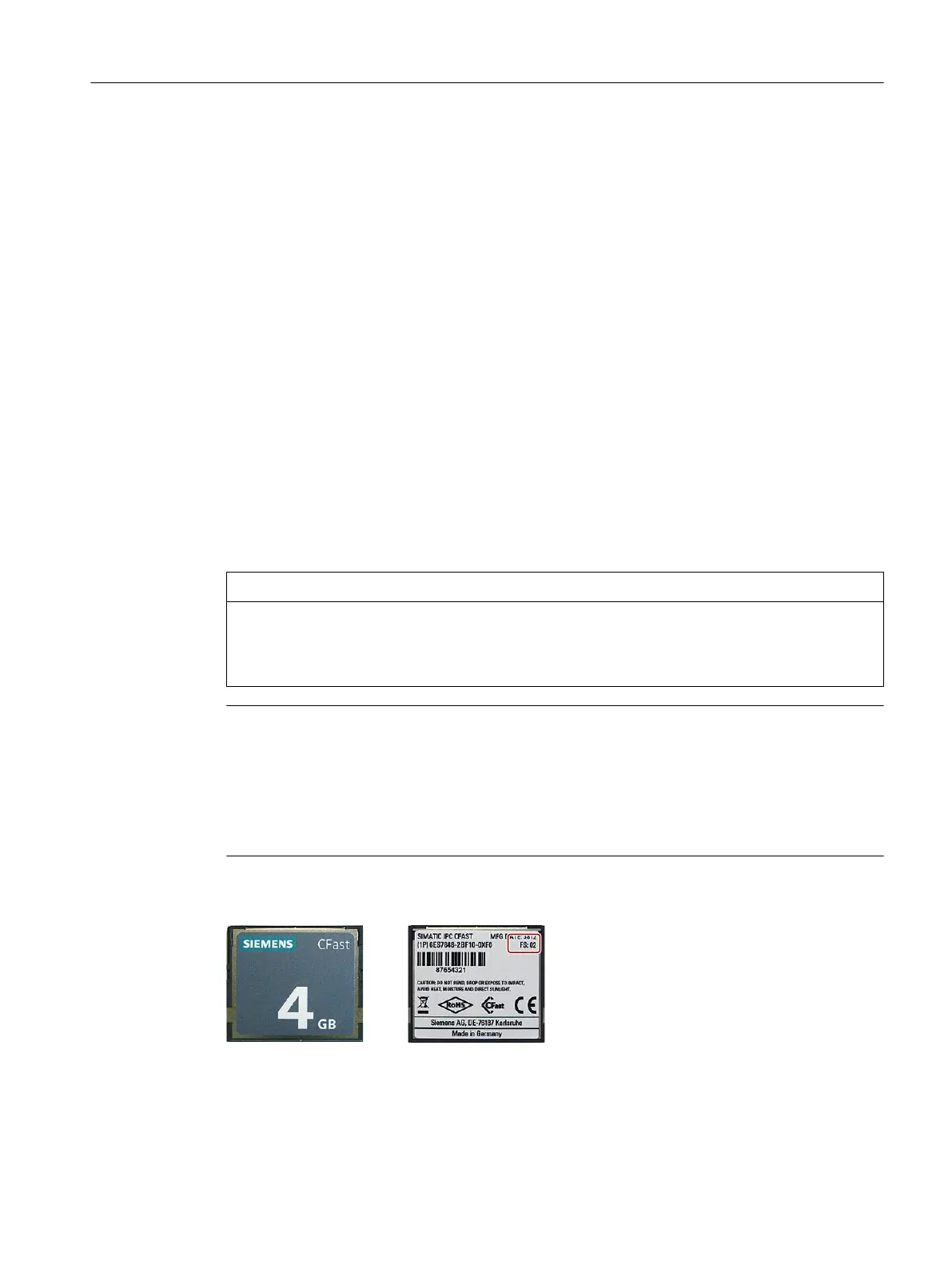

● The production version can be found on the CFast card (see marking).
Mounting
5.5 Withdrawing/inserting the CFast card
SIMOTION P320-4 E / P320-4 S
Commissioning and Hardware Installation Manual, 11/2016 83
