6. Then the SYNC I/O connecting cable is connected to the IsoPROFIBUS board.
The cable is plugged directly into the 3-pole socket on the IsoPROFIBUS board for this
purpose.

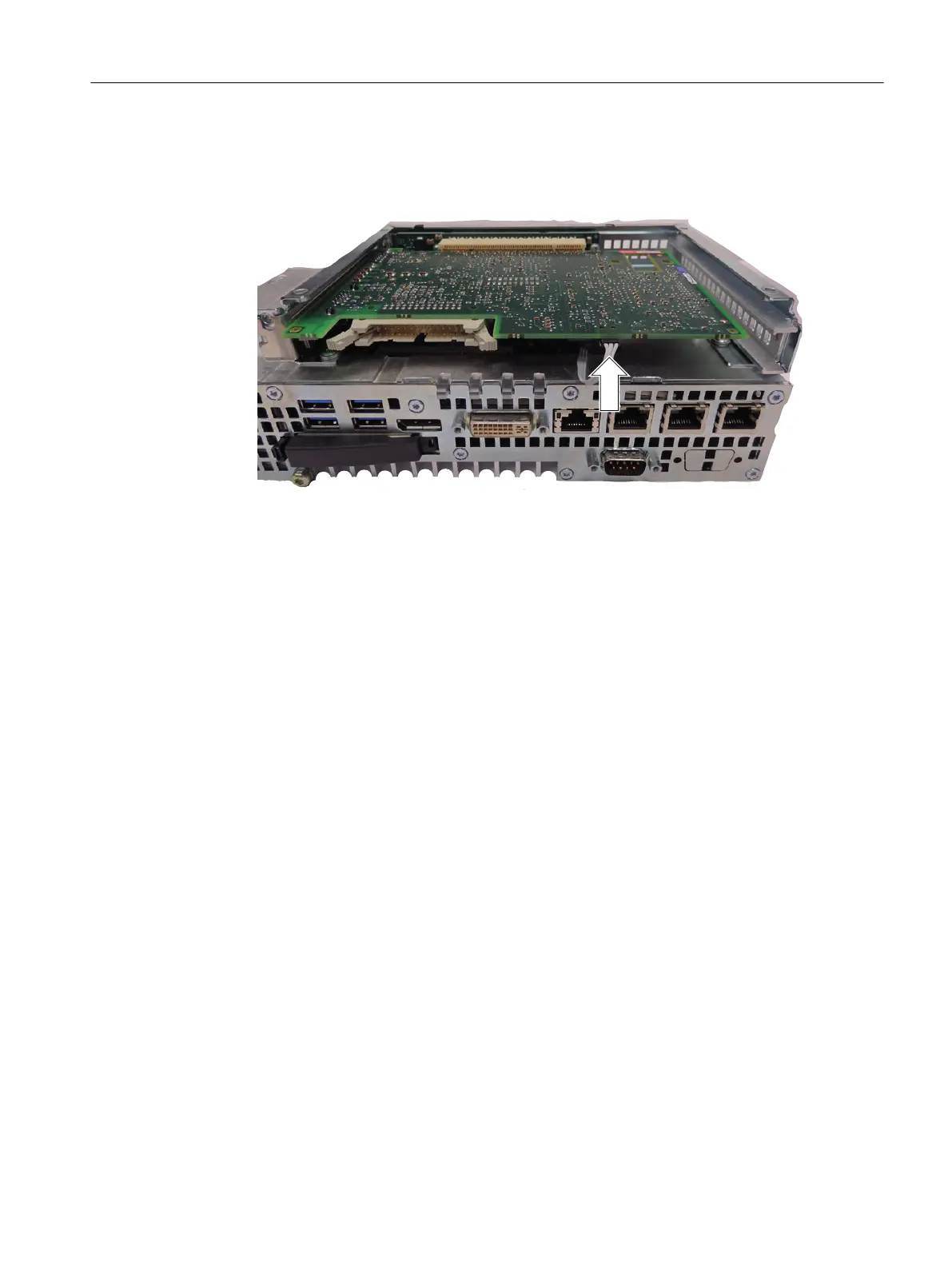

Figure 6-7 Plugging in the SYNC I/O connecting cable
7. Close the cover plate of the SIMOTION P320-4 and fasten the screws.
6.5.3 Connecting the IsoPROFIBUS board
The interface for the optional IsoPROFIBUS board is protected by a cover. There are two holes
in the cover for wiring.
Requirement
The device is switched off.
Connection
6.5 Connecting PROFIBUS
SIMOTION P320-4 E / P320-4 S
Commissioning and Hardware Installation Manual, 11/2016 107
