3.3.2 Local HMI or ES on SIMOTION P320-4
The model described below is used for the communication of the SIMOTION P320-4 with a
local HMI or ES. The SIMOTION SCOUT engineering system or the HMI system can be
installed directly on the SIMOTION P320-4 S.
For this model, you must set the communication (access point) to TCP/IP .
The SIMOTION P320-4 is already configured for this communication version at the time of
delivery.

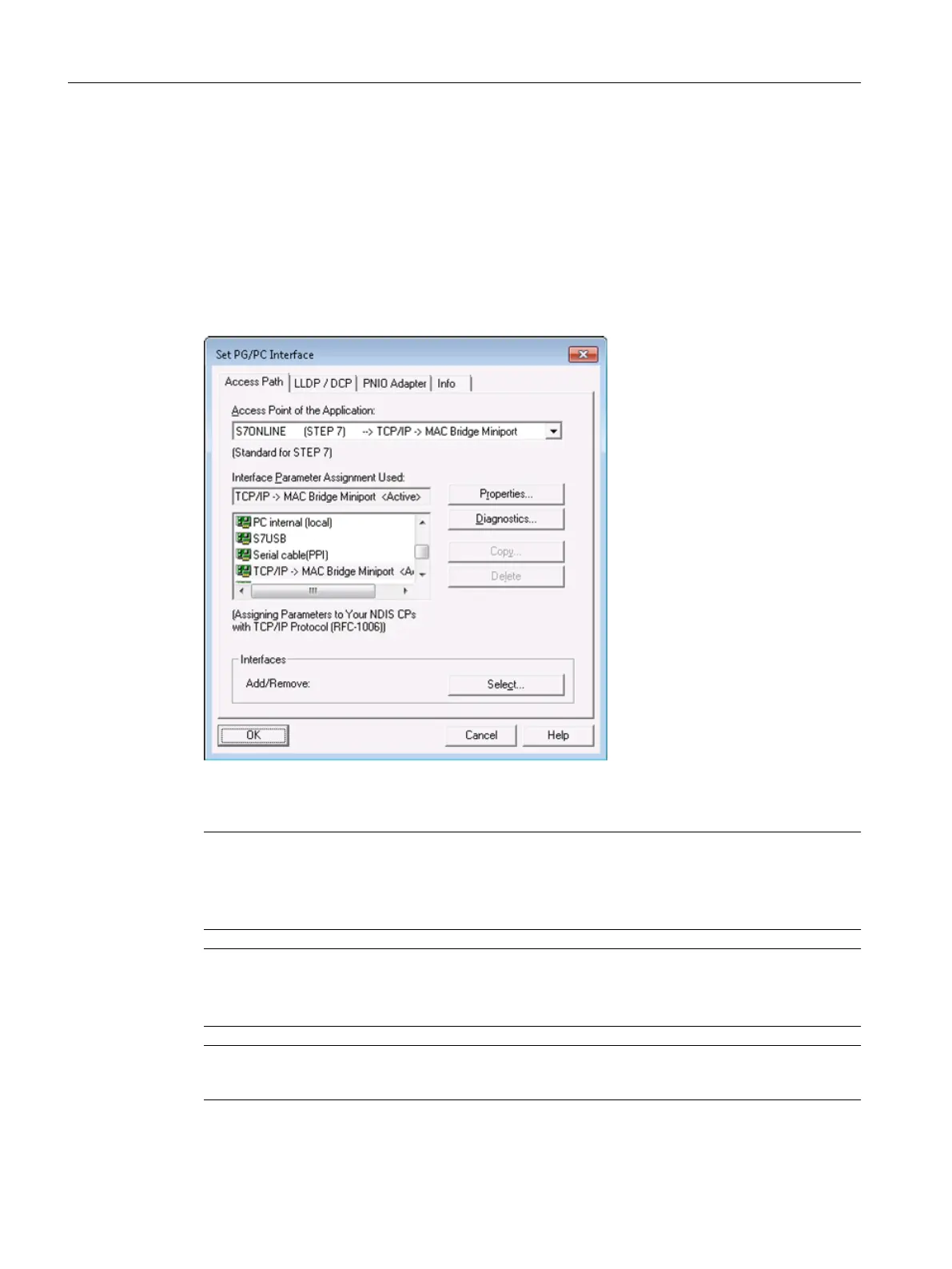

Figure 3-4 Set PG/PC Interface - TCP/IP -> MAC Bridge Miniport dialog box
Note
Local communication via Ethernet (TCP/IP)
For the communication via Ethernet (TCP/IP) to function locally, a link must be available to the
Ethernet interface or a LAN cable must be connected or the MAC bridge set up.
Note
Setting up the MAC bridge miniport
See also Section Setting up a network bridge - MAC bridge miniport (Page 61)
Note
Only HMI-Runtime can be installed on the SIMOTION P320-4 E version.
Description
3.3 HMI and SIMOTION SCOUT
SIMOTION P320-4 E / P320-4 S
60 Commissioning and Hardware Installation Manual, 11/2016
