System
8.4 SYSTEM - "Service display"
Cylindrical grinding
120 Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0
8.4 SYSTEM - "Service display"
The "Service display" window appears on the screen.
The start screen for the "Service control" function is shown in the following diagram.

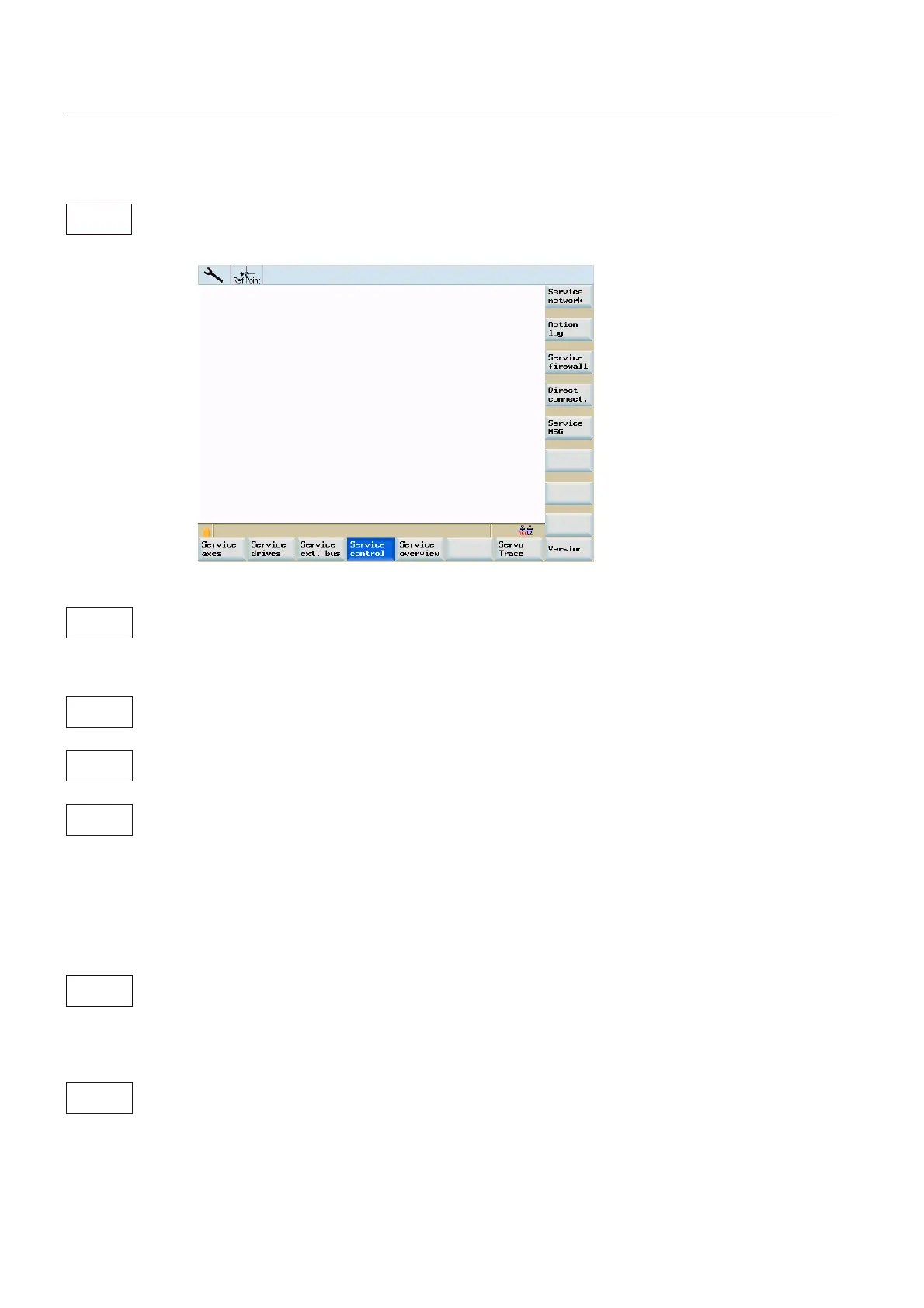

Figure 8-16 The "Service control" start screen
This window displays information on the axis drive.
The "Axis +" or "Axis -" softkeys are additionally displayed. These can be used to display the
values for the next or previous axis.
This window displays information in respect of the digital drive.
The window displays information on external bus settings.
Use this softkey function to activate the window for the following functions:
● "Service network" (see chapter "Network operation")
● "Action log" (see chapter "Action log")
● "Service Firewall" (see chapter "Network operation")
● "Direct connect." (see chapter "Network operation")
● "Service MSG" (see chapter "Service MSG")
This window contains information about
● Assignment, Machine axis <=> Channel axis <=> Drive number
● The enable status of the NC and drive
● Drive state regarding ready, faults and alarms
An oscilloscope function is available in this window to optimize the drives (see chapter
"Servo trace").
6HUYLFH
GLVSOD\
6HUYLFH
D[HV
6HUYLFH
GULYHV
6HUYLFH
H[W%XV
6HUYLFH
FRQWURO
6HUYLFH
2YHUYLHZ
6HUYR
WUDFH
