Manual mode
5.2 JOG mode - "Position" operating area
Cylindrical grinding
66 Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0
5.2 JOG mode - "Position" operating area
Operating sequences
Use the "JOG" key on the machine control panel to select the Jog mode.
To traverse the axes, press the appropriate key of the X or Z axis.
The axes will traverse continuously at the velocity stored in the setting data until the key is
released. If the value of the setting data is zero, the value stored in the machine data is
used.
If necessary, set the velocity using the override switch.
If you press the "Rapid traverse override" key at the same time, the selected axis will be
traversed at rapid traverse speed while both keys are being held down.
In the "Increment" mode, you can traverse by adjustable increments using the same
operating sequence. The set number of increments is displayed in the status area. To
deselect, press "JOG" again.
The JOG start screen displays the position, feedrate and spindle values, as well as the
current tool.

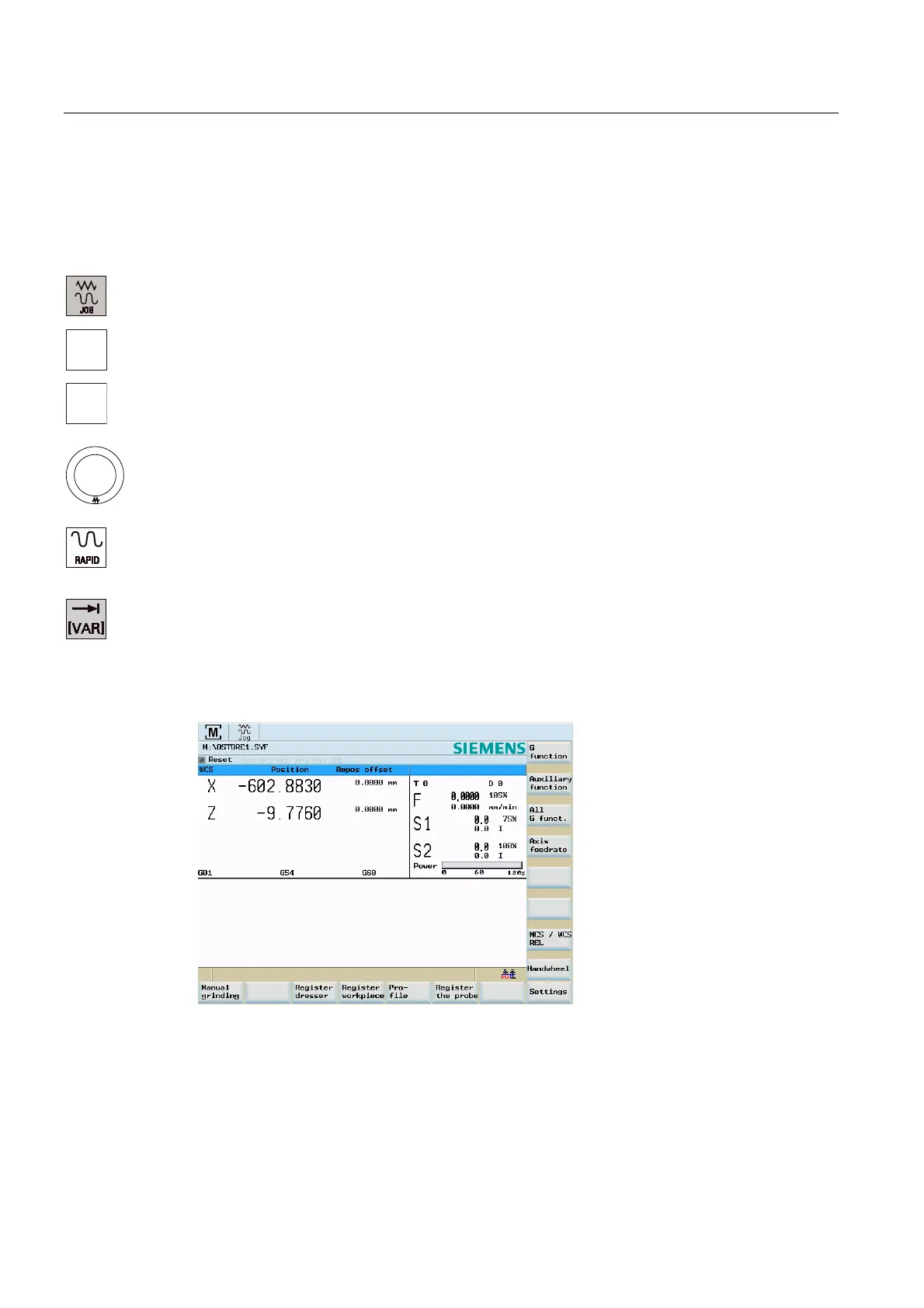

Figure 5-3 JOG main screen
;
=
To Next Page
