10.13 Inclined axis
Cylindrical grinding
Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0
325
10.13.2 Inclined axis (TRAANG)_2
Description

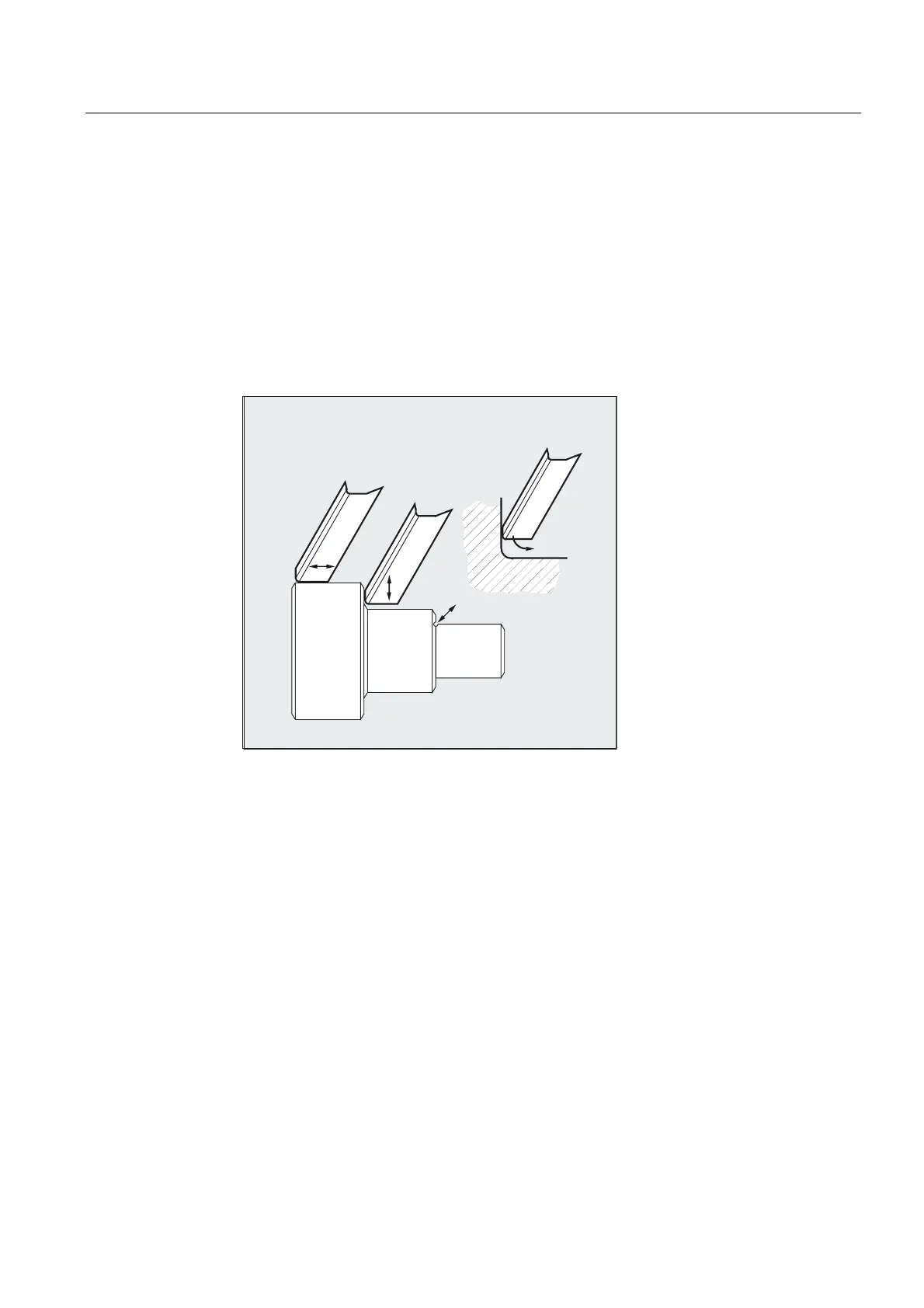

The following machining operations are possible:
1. Longitudinal grinding
2. Face grinding
3. Grinding of a specific contour
4. Oblique plunge-cut grinding.
Machine manufacturer
The following settings are defined in machine data:
● The angle between a machine axis and the oblique axis,
● The position of the zero point of the tool relative to the origin of the coordinate system
specified by the "inclined axis" function,
● The speed reserve held ready on the parallel axis for the compensating movement,
● The axis acceleration reserve held ready on the parallel axis for the compensating
movement.
