4.3 Sense dresser
Cylindrical grinding
46 Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0
4.3 Sense dresser
Functionality
This function is used to determine the dresser positions in the machine for dressers that are
used by means of the geometry axes. The axis values are determinded in machine
coordinates by the HMI and transmitted to the cycle.
Operation
The dresser is sensed in JOG mode.
The input screen is opened.

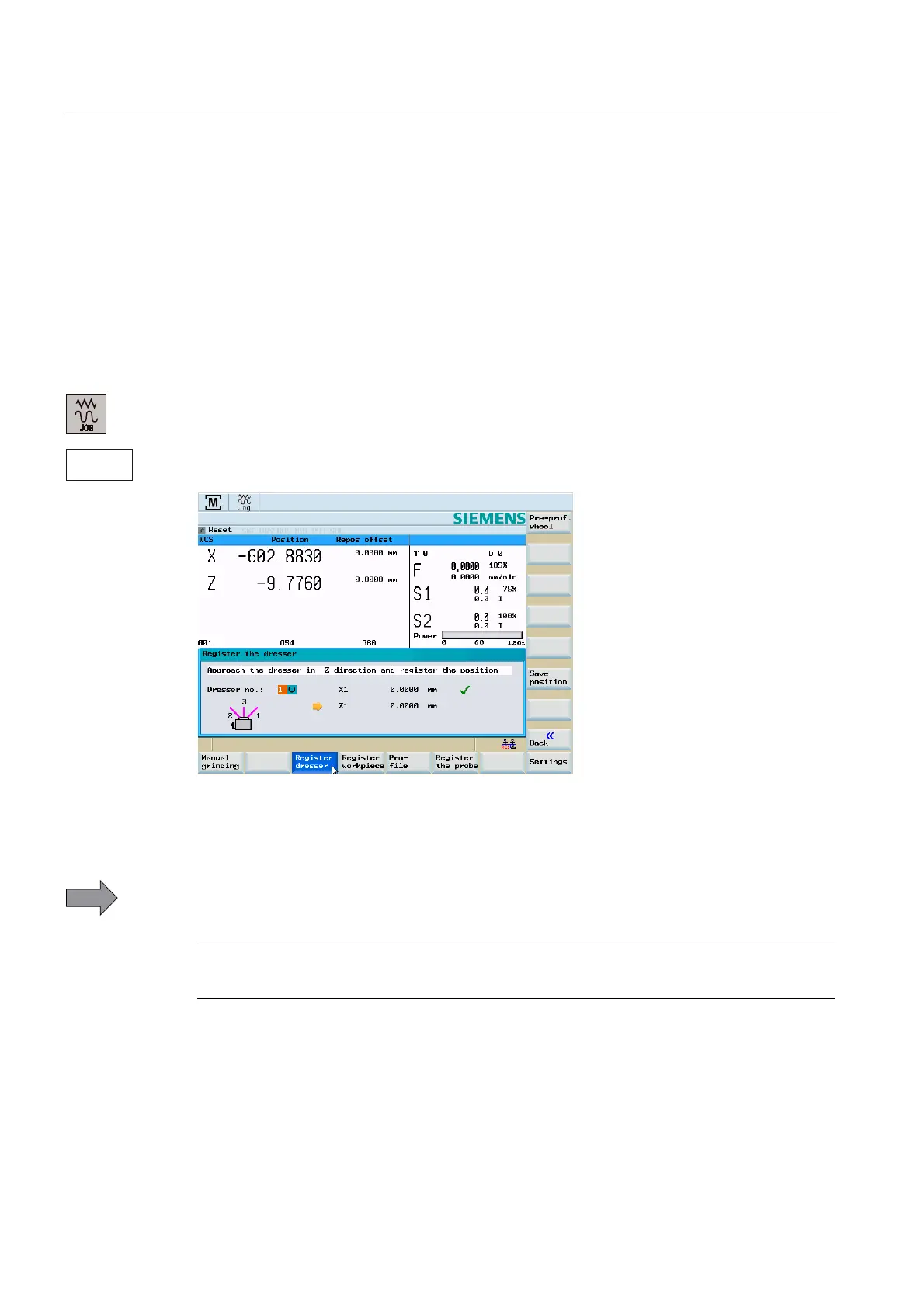

Figure 4-13 Sense dresser
You can use the "Dresser no.:" toggle field to select the dresser whose position you wish to
sense (e.g. "1"). The procedure always starts with X axis.
The steps required are shown in a text line.
The axis line to be processed is indicated by an arrow.
Note
For swiveling wheels, the wheel must already be set to its dressin angle.
