10.6 Tool and tool offset
Cylindrical grinding
Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0
295
10.6.5 Corner behavior: G450, G451
Functionality
Using the functions G450 and G451, you can set the behavior for non-continuous transition
from one contour element to another contour element (corner behavior) when G41/G42 is
active.
Internal and external corners are detected by the control system automatically. For internal
corners, the intersection of the equidistant paths is always approached.
Programming
G450 ;Transition circle
G451 ;Point of intersection
([WHUQDOFRUQHU
([WHUQDOFRUQHU
I
I
*
*
7UDQVLWLRQFLUFOH
UDGLXV WRROUDGLXV
3RLQWRILQWHUVHFWLRQ

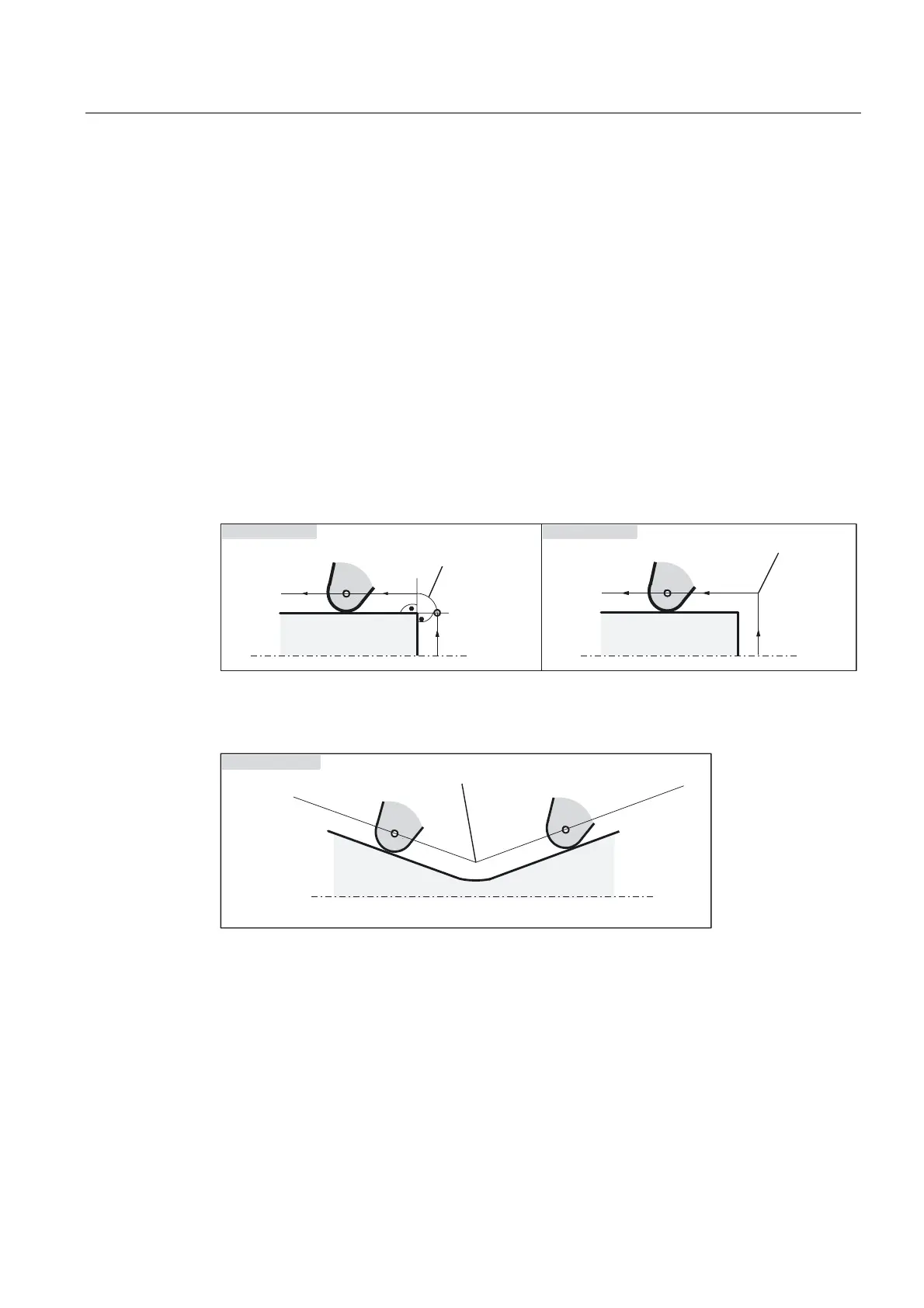

Figure 10-31 Corner behavior at an external corner
S
S
,QWHUQDOFRUQHU
3RLQWRILQWHUVHFWLRQ
Figure 10-32 Corner behavior at an internal corner
Transition circle G450
The tool center point travels around the workpiece external corner in an arc with the tool
radius. In view of the data, for example, as far as the feedrate value is concerned, the
transition circle belongs to the next block containing traversing movements.
