4.5 Shaping/dressing
Cylindrical grinding
50 Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0
4.5 Shaping/dressing
Functionality
This function is used to shape a "raw" grinding wheel without generating an NC program.
The procedure always refers to the currently active tool.
Operation
Shaping is done in JOG mode.
The input screen is opened.

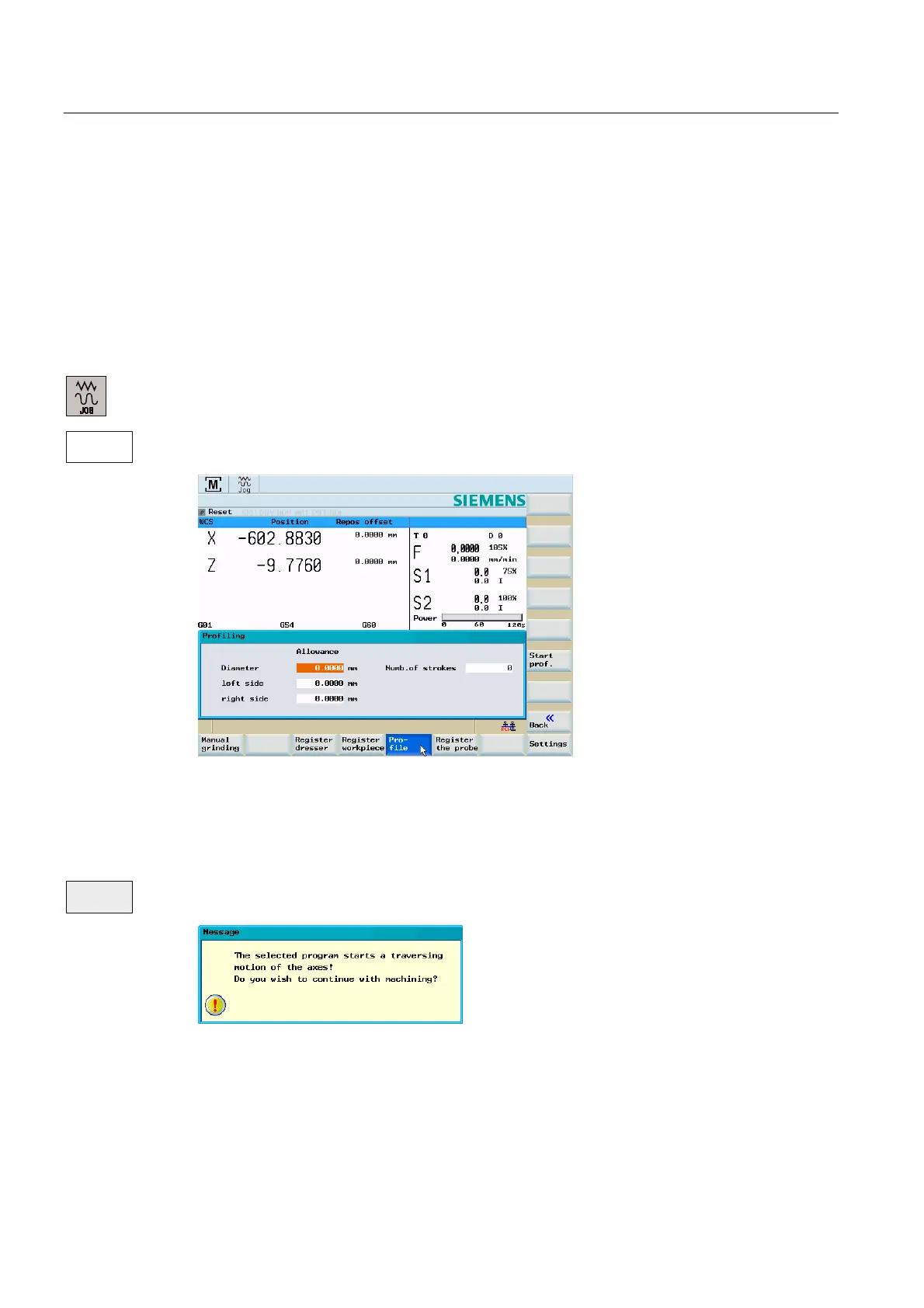

Figure 4-16 Shaping
The required shaper values that are machined in dressing strokes are entered using the
input fields
For a new wheel (no wear), the shaper allowance is suggested by the control system. The
number of dressing strokes can be freely selected.
When you press the "Start shaping" softkey, the following prompt will appear:
Figure 4-17 Prompt
