8.4 SYSTEM - "Service display"
Cylindrical grinding
Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0
131
8.4.4 Service MSG
The "Service MSG" function allows message texts/messages to be output via the following
interfaces:
● Output via the RS232 interface (V24) as data stream without protocol
● Output in a file
Message texts/messages include:
● Alarms
● Texts of MSG commands
The message texts/messages are programmed in the part program using a specified syntax.
The particular syntax is described in the following table:
Table 8- 2 Syntax of the message texts/messages
Output Syntax ("<interface>: Message text")
via RS232 interface (V24) MSG ("V24: Message text")
in a file MSG ("File: Message text")
Alarm line at the HMI MSG ("Alarm text")
The MSG text output is defined using the MSG command as well as by appropriately
parameterizing the output interface. For the alarm output, only the output interface has to be
taken into consideration.
If the information line "Processing error MSG command occurred" is output, then the error
protocol can be evaluated under the operating area <SYSTEM> > "Service display" >
"Service control" > "Service MSG" > "Error protocol".

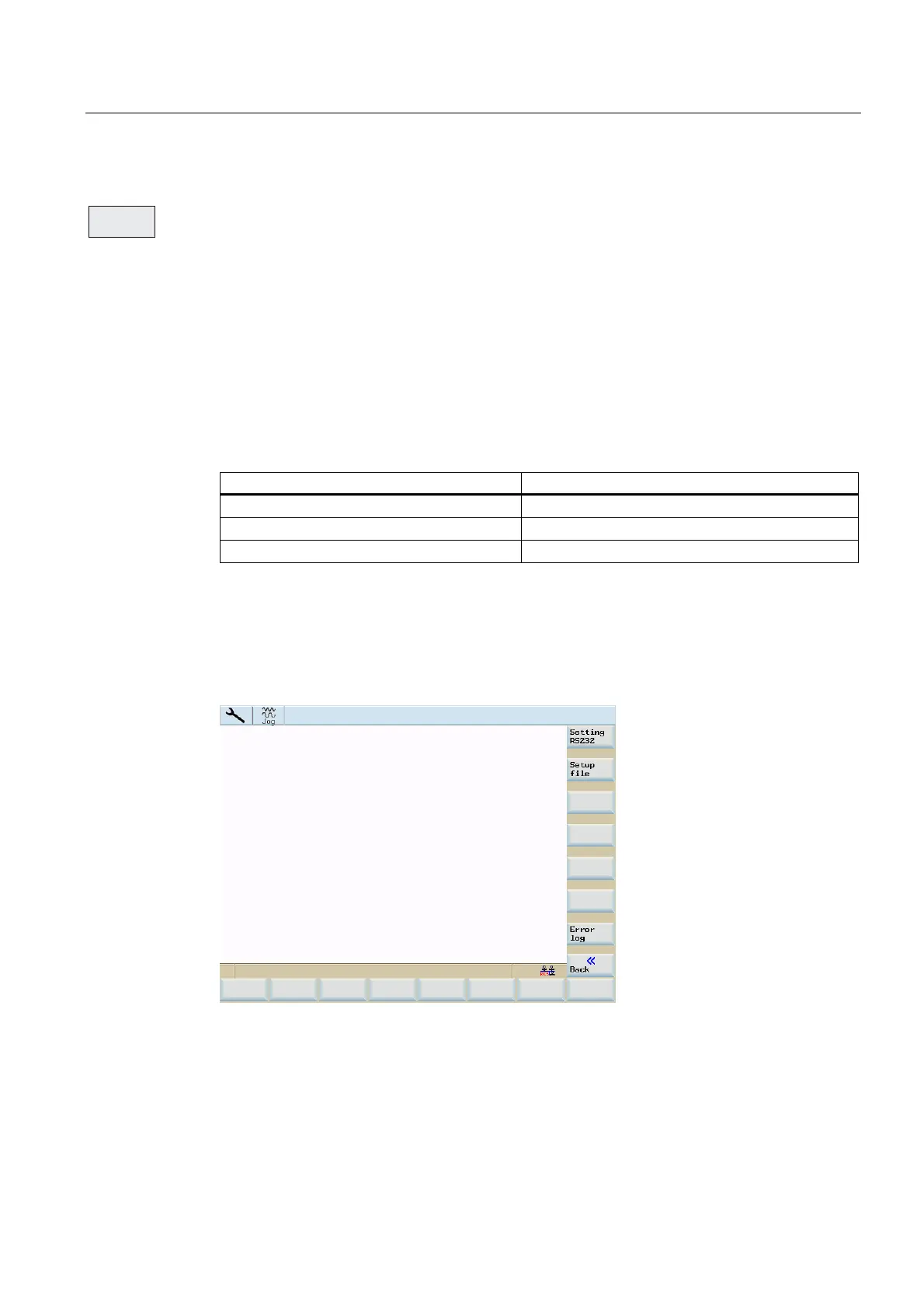

Figure 8-29 Dialog box, Service MSG
