Cylindrical grinding
Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0
13
Description
1
1.1 Control and display elements
Operator control elements
The defined functions are called up via the horizontal and vertical softkeys. For a description,
please refer to this manual:
+RUL]RQWDOVRIWNH\V
9HUWLFDOVRIWNH\V

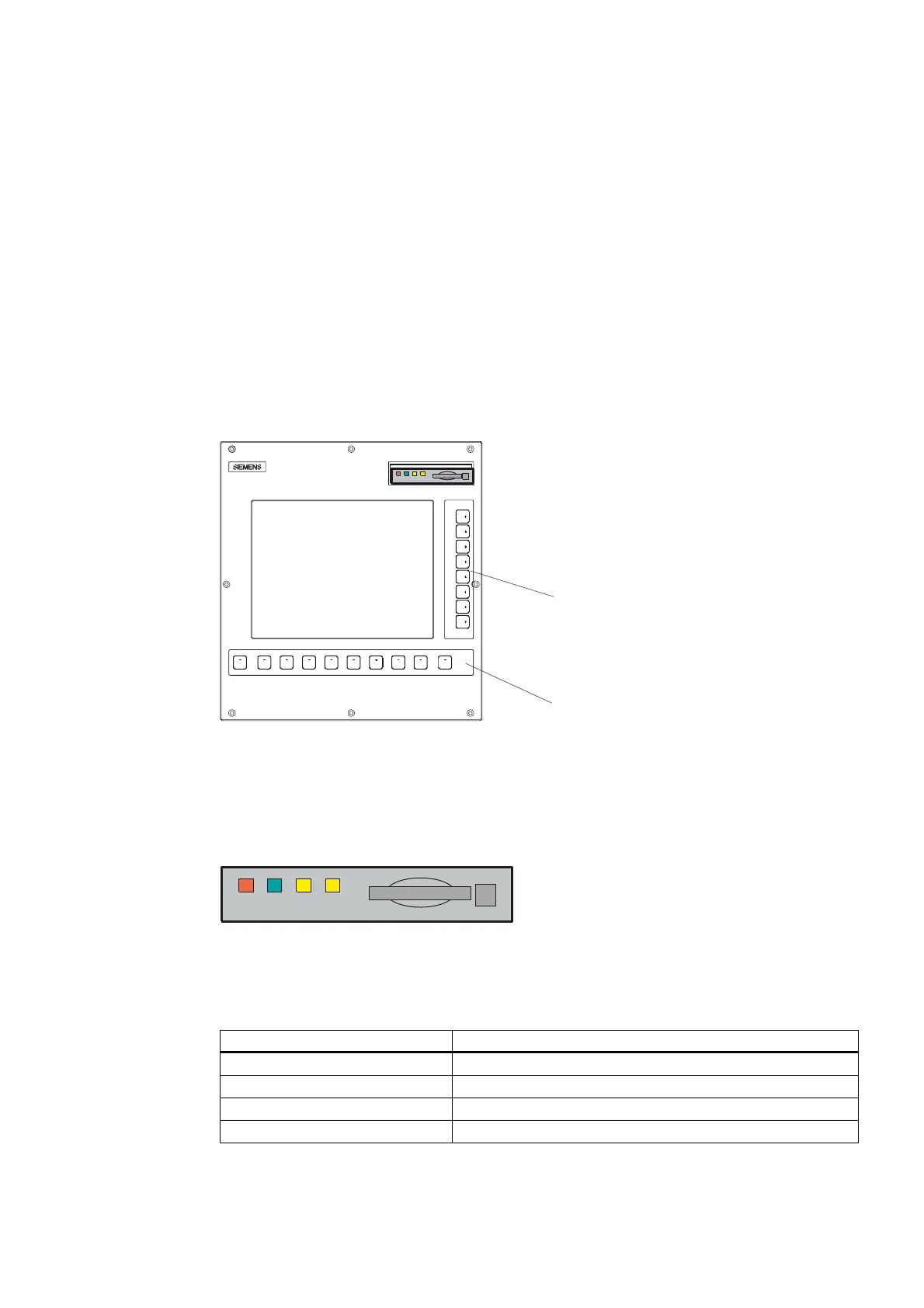

Figure 1-1 CNC operator panel
LED displays on the CNC operator panel (PCU)
The following LEDs are installed on the CNC operator panel.
(55 5'< 1& &)
The individual LEDs and their functions are described in the table below.
Table 1- 1 Status and error displays
LED Significance
ERR (red) Serious error, remedy through power OFF/ON
RDY (green) Ready for operation
NC (yellow) Signoflife monitoring
CF (yellow) Reading from/writing to CF card
