10.2 Positional data
Cylindrical grinding
246 Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0
Notes
● For circles, the same factor should be used in both axes.
● If an ATRANS is programmed with SCALE/ASCALE active, these offset values are also
scaled.
:RUNSLHFH
=
:RUNSLHFH
;
:
:RUNSLHFHRULJLQDO
:RUNSLHFHHQODUJHGLQ;DQG=

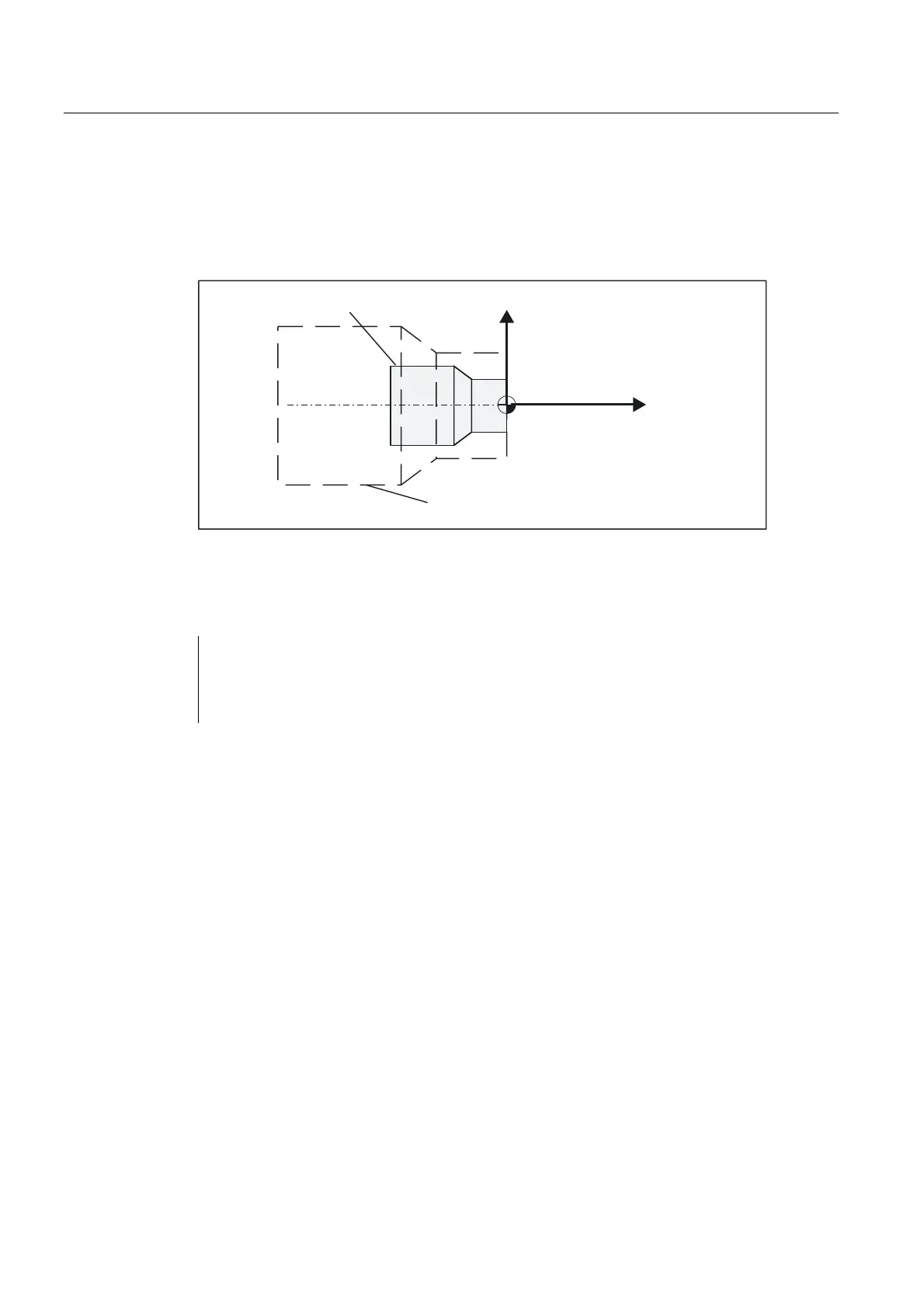

Figure 10-6 Example of a programmable scaling factor
Programming example
N20 L10 ; Programmed contour original
N30 SCALE X2 Z2 ; contour in X and Z enlarged 2 times
N40 L10
...
Subroutine call - see Section "Subroutine technique "
Information
In addition to the programmable offset and the scale factor, the following functions exist:
● Programmable rotation ROT, AROT and
● programmable mirroring, MIRROR, AMIRROR.
These functions are primarily used in milling. On grinding machines, this is possible with
TRANSMIT.
Examples of rotation and mirroring: see Section "List of instructions"
