Siemens SINUMERIK 802D User Manual

Programming
10.3 Axis movements
Cylindrical grinding
Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0
259
Programming example: Definition of center point and aperture angle



r

6WDUWSRLQW
(QGSRLQW"
&HQWHUSRLQW
;
,
.
=

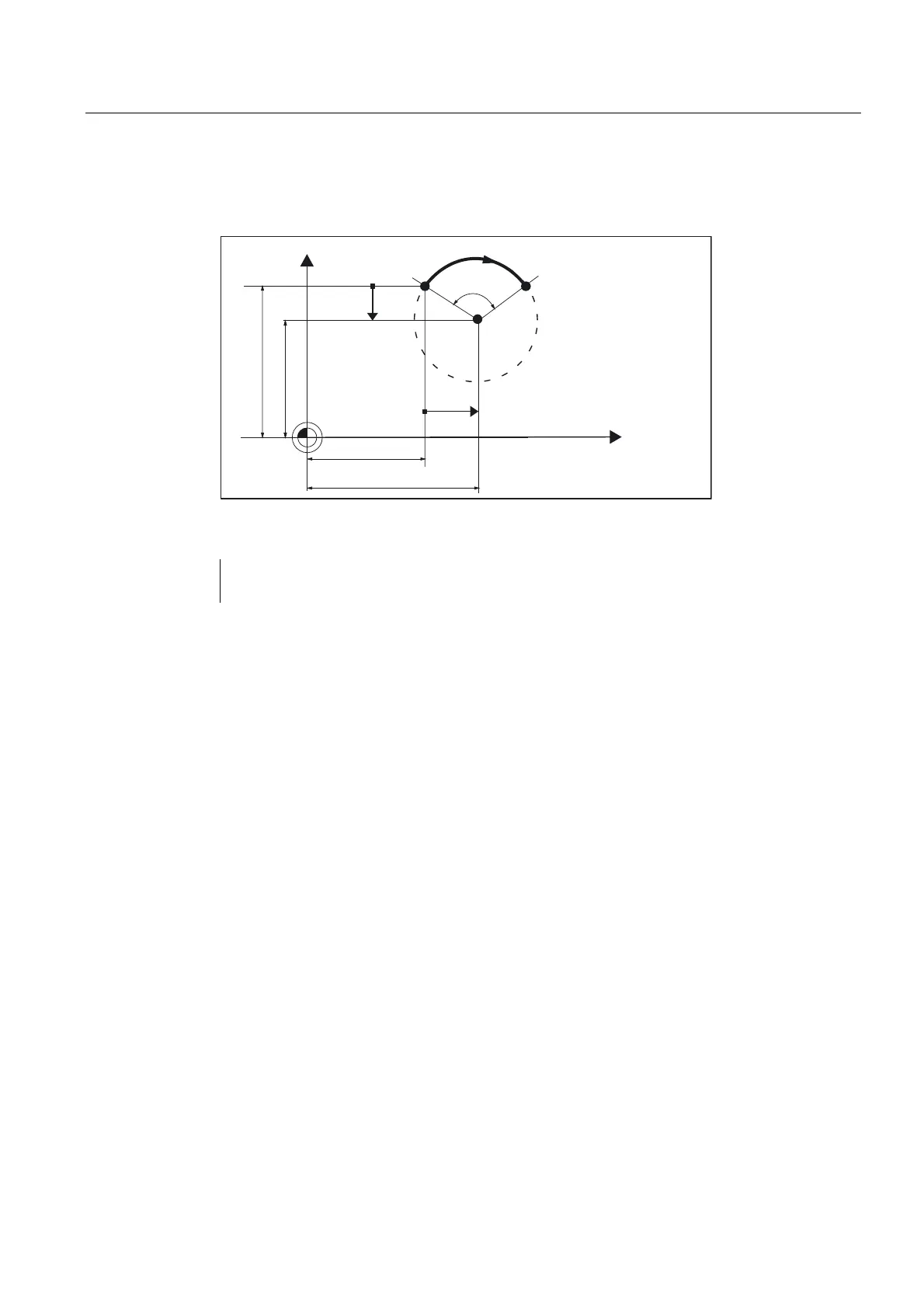

Figure 10-17 Example for center point and aperture angle specification
N5 G90 Z30 X40 ; Starting point circle for N10
N10 G2 K10 I-7 AR=105 ; Opening angle and center point
Note: Center point values refer to the circle starting point!
