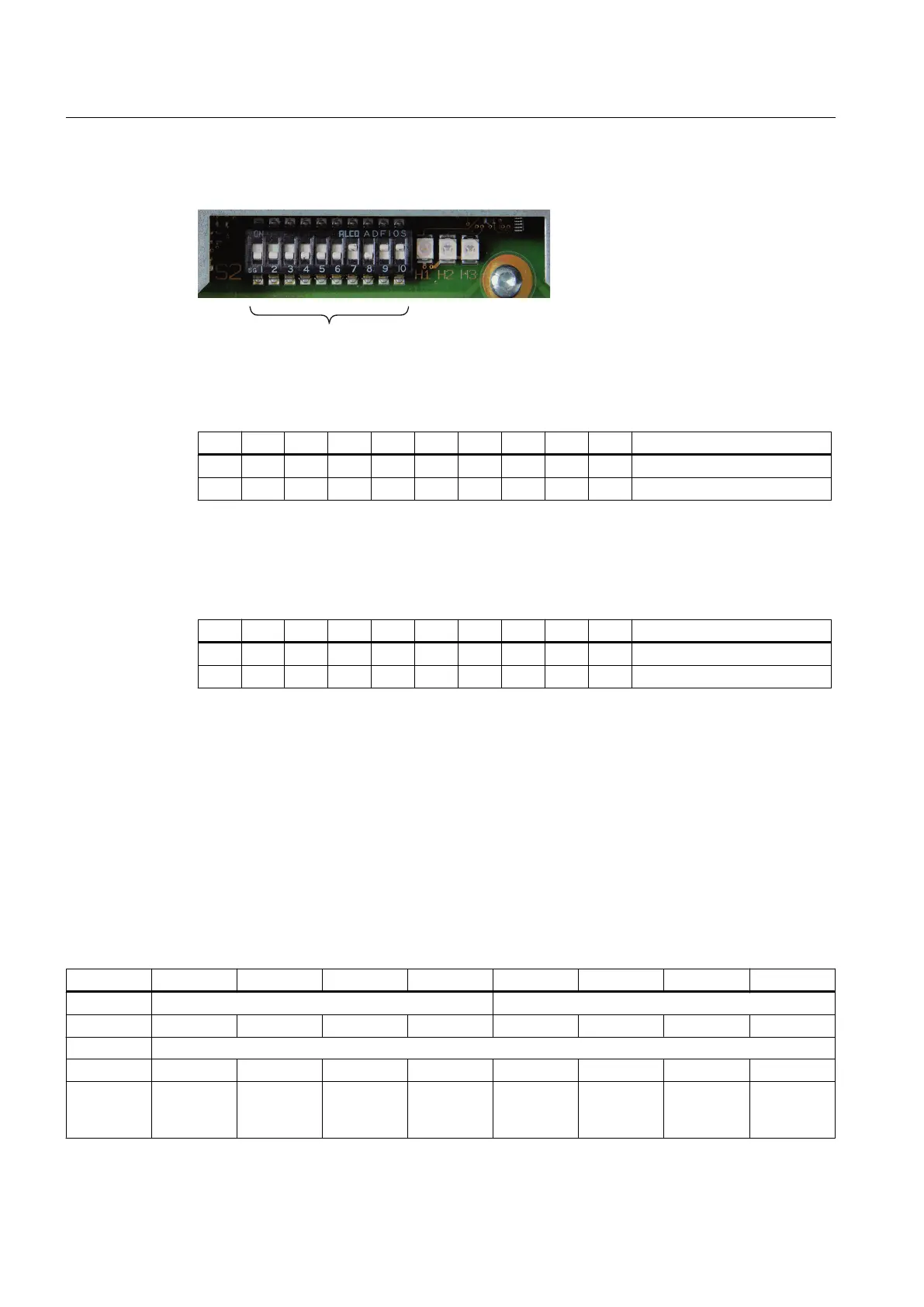

Switch S2
Switch position: "ON" is at the top.
Table 7-9 Switch S2 is set as delivered
1 2 3 4 5 6 7 8 9 10 Meaning
ON ON PLC I/O Interface
OFF OFF OFF OFF OFF OFF OFF OFF PROFINET address "0"
The two switches S2-9 and S2-10 must remain set to "ON".
The switches S2-1 to S2-8 define the PROFINET address. For a SINUMERIK 828D,
the address "64" must always be assigned to the MCP.
Table 7-10 Settings of switch S2
1 2 3 4 5 6 7 8 9 10 Meaning
ON ON ON
OFF OFF OFF OFF OFF OFF OFF PROFINET address "64"
7.1.4 Parameterization
The specifications for assigning input and output bytes listed in the tables are set as standard
addresses in the PLC by setting the following machine data:
MD12986 PLC_DEACT_IMAGE_LADDR_IN[6] = -1
Standard input image
Table 7-11 Input image MCP 483C PN
Byte Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0
Spindle override Operating mode
EB112 D (2
3
) C (2
2
) B (2
1
) A (2
0
) JOG TEACH IN MDA AUTO
Machine function
EB113 REPOS REF. var. INC 10000 INC 1000 INC 100 INC 10 INC 1 INC
EB114 Keyswitch
position 0
Keyswitch
position 2
Spindle
Start
*Spindle
Stop
Feed
Start
*Feed
Stop
NC
start
*NC
Stop
