8. Place the cover ② on the rotary knob and snap it into position.
9. Fold and fasten the connecting cable ⑦ as shown in the figure on the right.
① O-ring Detail diagram of the connector
② Cap
③ Arrow ring
④ Fastening nut
⑤ Rotary knob
⑥ Connection plug
⑦ Connecting cable
⑧ Terminal board

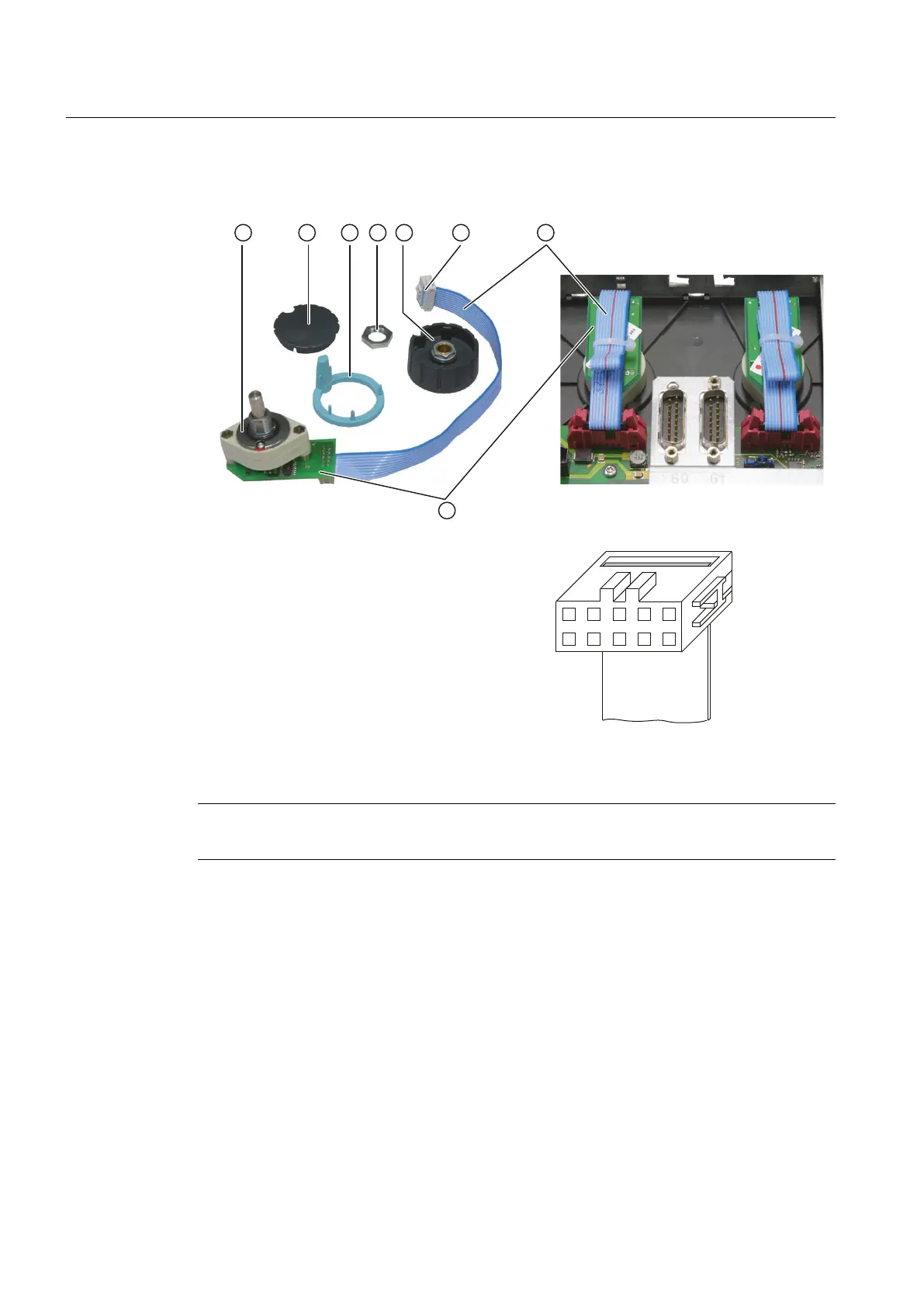

Figure 7-21 Installation of rotary switch
Proceed in the same way to install the second rotary switch.
Note
It is essential to use the correct tightening torques.
7.3 MCP Interface PN
Description
In the SINUMERIK solution line control family, communication with the operator panels is via
PROFINET (Industrial Ethernet).
The MCP Interface PN module enables customer-specific machine control panels to be
connected to a machine tool. Communication is handled via PROFINET RT or Industrial
Ethernet.
Connectable components
7.3 MCP Interface PN
PPU
130 Manual, 01/2014, 6FC5397-2DP40-3BA3
