7.3.2 Connection
Position of the interfaces

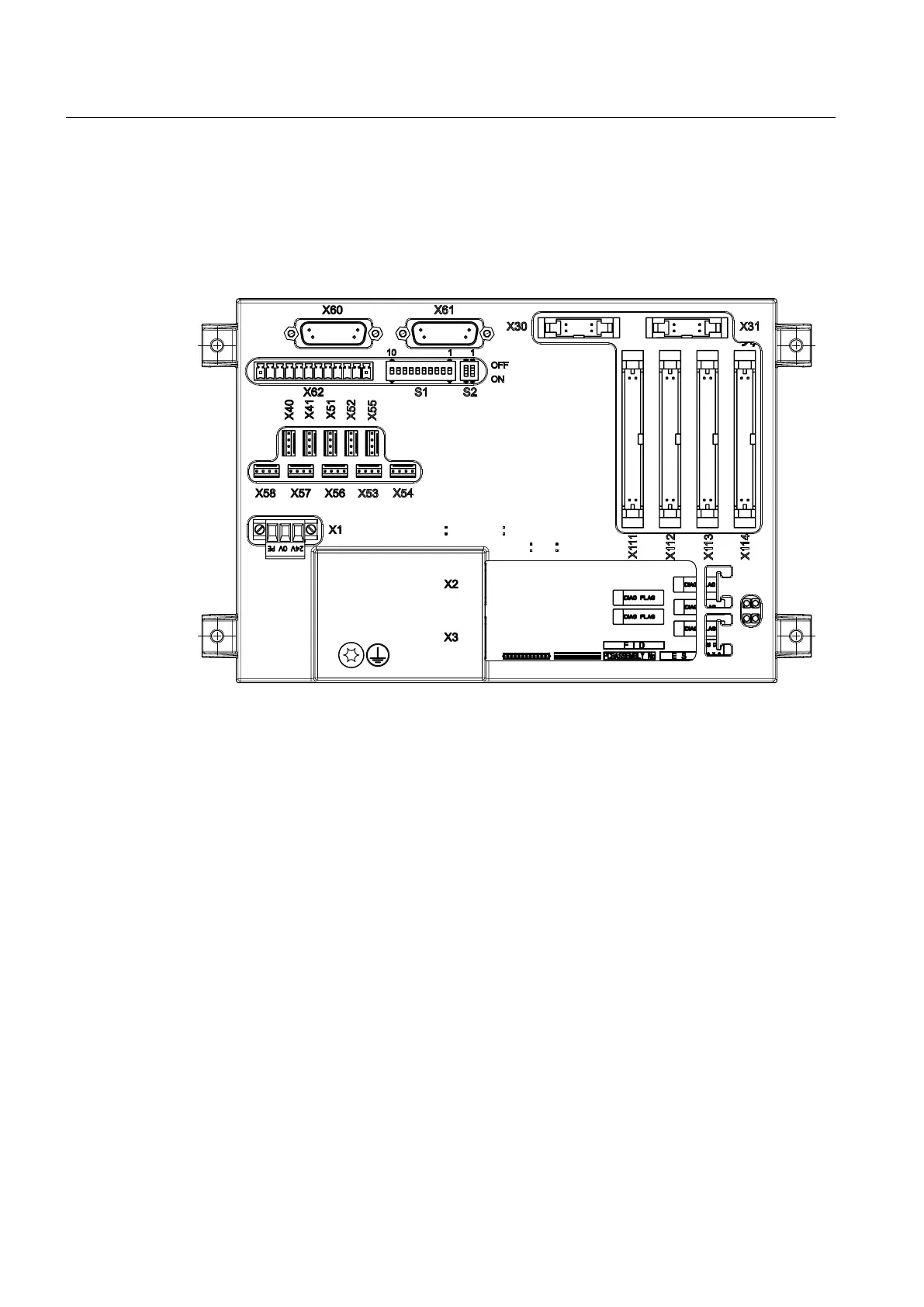

Figure 7-24 MCP Interface PN interfaces
Interface overview
X1 24 VDC power supply
X2 PROFINET interface
X3 PROFINET interface
X30 Interface for rotary switch feed override
X31 Interface for rotary switch spindle override
X40/X41 Digital inputs (24 V)
X51 / X52 / X55 Digital inputs (TTL)
X53 / X54 / X56 / X57 / X58 Digital outputs (24 V)
X60 / X62 Handwheel
X61 Reserved
X111/X112/X113/X114 Keys and LED interface
S1 DIP switch for setting the MCP address
S2 DIP switch for setting the handwheel signal type
Connectable components
7.3 MCP Interface PN
PPU
134 Manual, 01/2014, 6FC5397-2DP40-3BA3
