7.6.3 Connecting
Connection options
G_NC01_DE_00409a
SINUMERIK
I/O module
PP 72/48D PN
PP 72/48D 2/2A PN
SIMATIC DP
PN/PN coupler
SINUMERIK
MCP 310C PN/
MCP 483C PN
I/O module
PP 72/48D PN/
PP 72/48D 2/2A PN
Power supply
Analog inputs (up
to 2)
1)
Analog outputs (up
to 2)
1)
Ribbon cable
PROFINET
Digital I/O
Analog I/O
X3
24 V DC
Port 2 X2
Port 1 X2
X111
X222
X333
6SL3060-4A..0-0AA0
(in fixed lengths)
6FX2002-1DC00-1..0
(precisely to the meter)
≤ 70 m
X1
Article number
Pre-assembled cable
1)
Only for PP 72/48D 2/2A PN
Terminal strip
converter
1)
SINUMERIK
828D/828D BASIC
SINUMERIK 840D sl

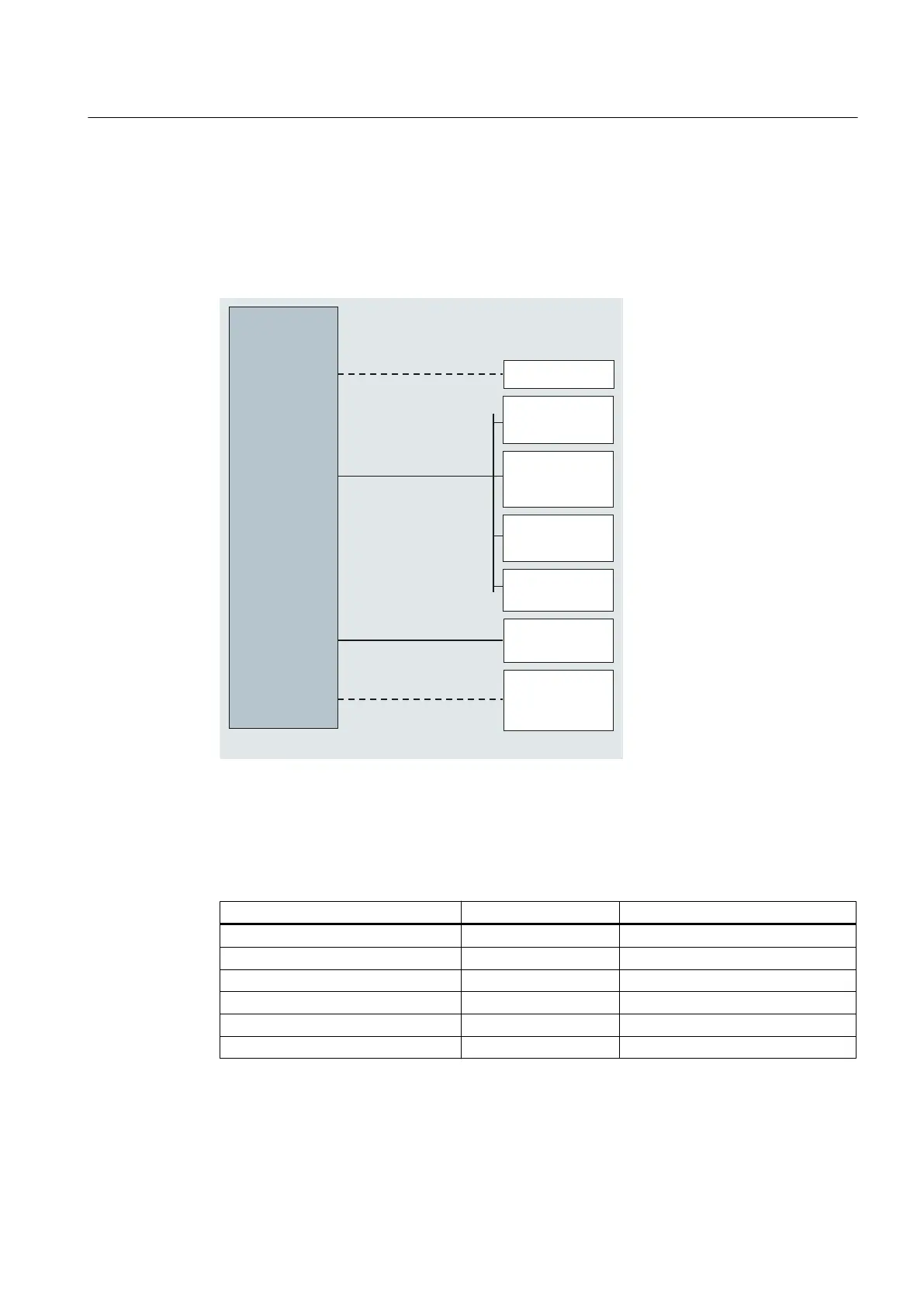

Figure 7-42 Connections of the PP 72/48D PN
Interfaces
Table 7-63 PP 72/48D PN I/O module interfaces
Interface Designation Type
Power supply connection X1 Screw-terminal block
PLC I/O Interface X2 (ports 1 and 2) Socket
PLC I/O Interface address S1 DIP switch
Digital input/outputs 1 X111 Ribbon cable connector
Digital input/outputs 2 X222 Ribbon cable connector
Digital input/outputs 3 X333 Ribbon cable connector
See also
Addressing the I/O modules (Page 75)
Connectable components
7.6 PP 72/48D PN
PPU
Manual, 01/2014, 6FC5397-2DP40-3BA3 171
