2.4 Operator controls and display elements
TFT color display
The TFT color display has a diagonal size of 10.4" (PPU 26x.3/28x.3) or 8.4" (PPU 24x.3).
The resolution is 800 x 600 pixels. The softkeys are arranged in an 8 + 8 layout; this makes
the CNC easy to operate using only a very small number of menu levels.
Note
Pixel error acc. to DIN EN ISO 13406-2 Class II.
Keyboard
Several keys and key pads are installed on the operator panel front:
● The alphabetic key group contains the letters A ... Z and the space character for entering
text.
● The numeric key group contains the digits 0 - 9, arithmetic/special characters and the
decimal point for entering numeric characters and operators.
● The cursor key group is used to navigate on the screen.
● The control key group includes special functions.
● The area changeover displays the operating areas.
● The menu forward key allows the horizontal softkey bar to be extended in the same menu.
● The softkeys call up functions that are available on screen via a menu bar.
● The machine area key switches directly into the "Machine" operating area.
● The menu back key returns to the superordinate menu, one window is closed.

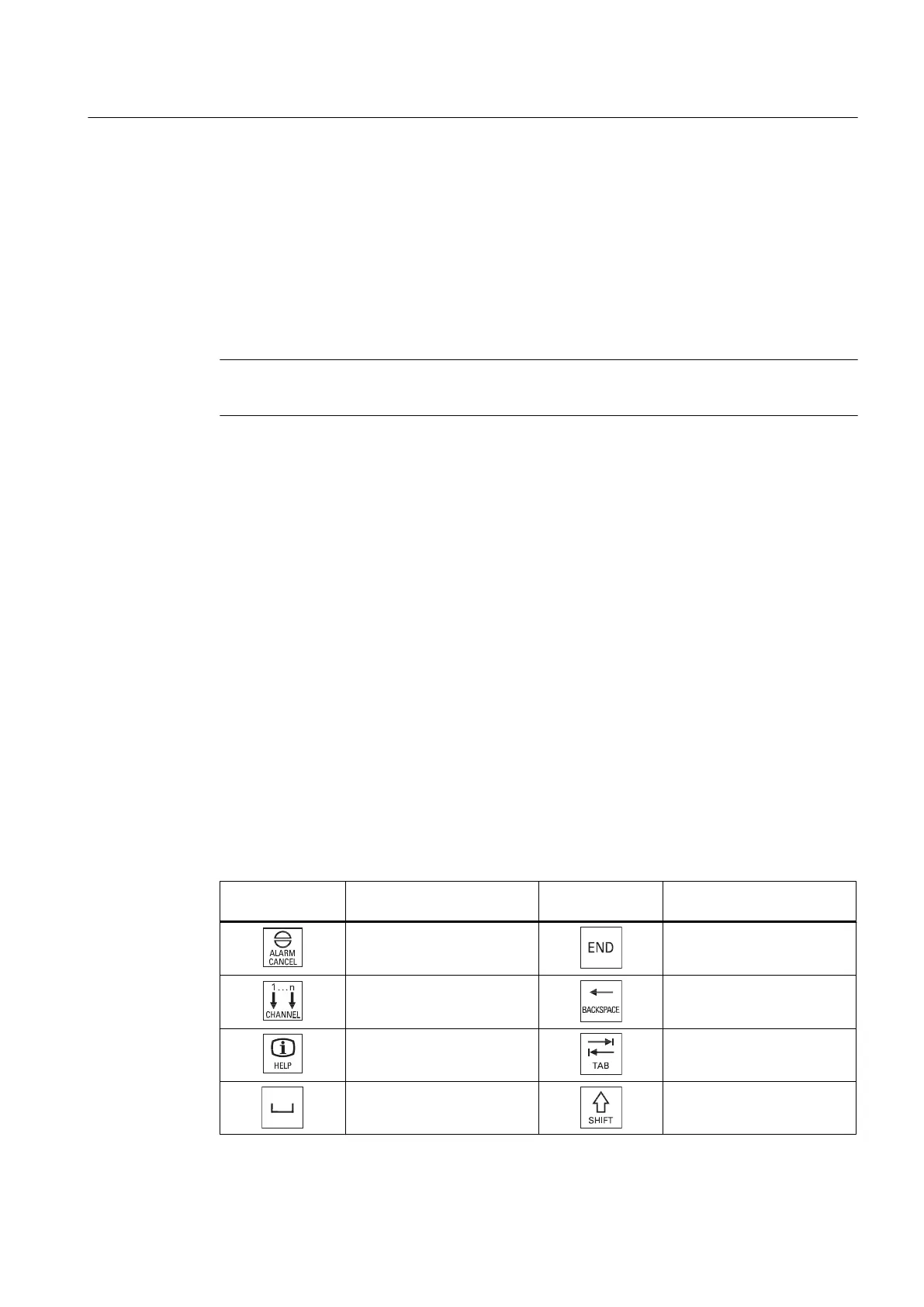

The keys used on the operator panel front along with the corresponding function keys on the
PC keyboard are shown in the following overview:
Key Function corresponds to PC
key function
Key Function corresponds to PC
key function
Esc End
F11 Backspace
F12 Tabulator
Spaces (only for internal keyboard
changeover)
System description
2.4 Operator controls and display elements
PPU
Manual, 01/2014, 6FC5397-2DP40-3BA3 21
