4. Pull out the CompactFlash card sideways.

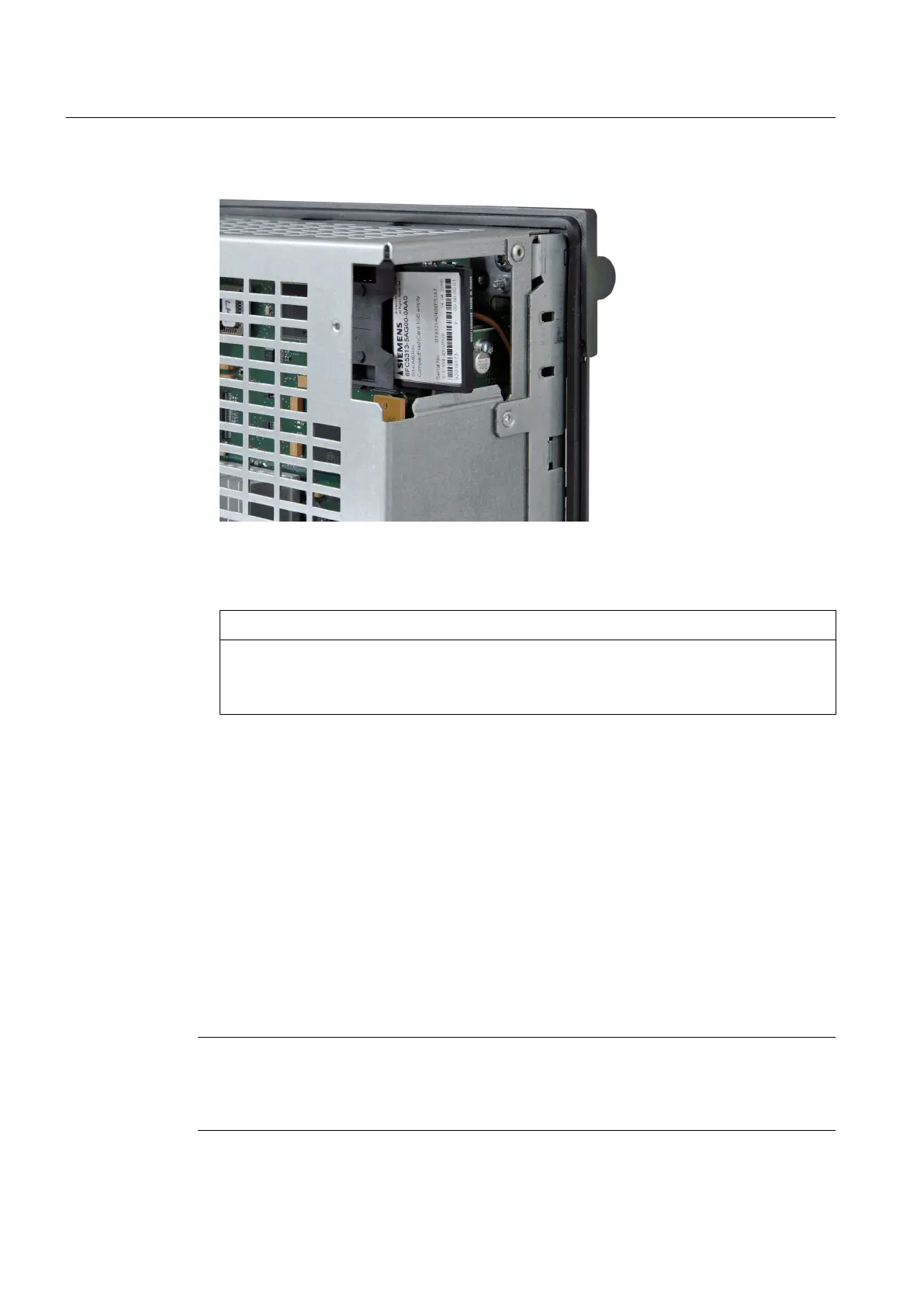

5. Gently insert the new CompactFlash card into slot ③ until it clicks into place.
6. Re-attach the metal cover ② by first guiding it in backward, then tilting into the end position
and finally screwing in the screw ① (max. tightening torque, 0.8 Nm).
NOTICE
Plugging in the CompactFlash card
Please ensure that the CompactFlash card is inserted with care. Otherwise, the card may
be damaged.
7. Switch the power supply on again.
2.9.3 CompactFlash card for user data
CompactFlash card for user data
You can write to the user CompactFlash card as follows:
● The user CompactFlash card is inserted in the front slot of the PPU and is written to via the
operating software.
● The user CompactFlash card can be written to using a suitable memory card adapter
directly via the PG/PC.
Note
A permanently inserted CompactFlash card can also be used as an extension of the CNC
user memory, e.g. for oversized mold making programs, which exceed the storage capacity
integrated in the CNC user memory.
System description
2.9 CompactFlash Cards
PPU
32 Manual, 01/2014, 6FC5397-2DP40-3BA3
