Siemens SINUMERIK 828D PPU Series User Manual




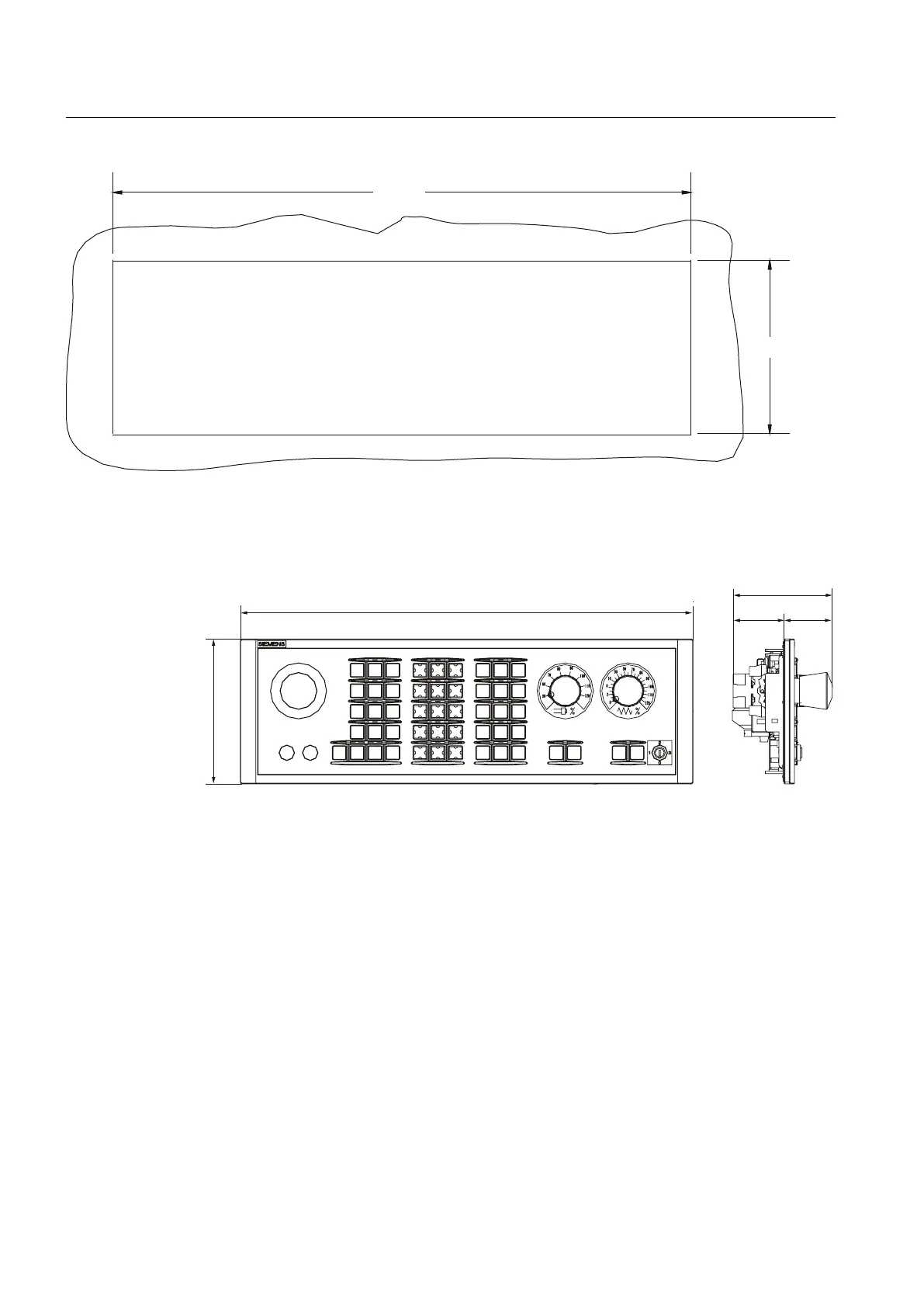

Figure 7-4 Panel cutout of MCP 483C PN
MCP 483C PN dimension drawing





Figure 7-5 MCP 483C PN dimensions
7.1.3 Connecting
Securing the cables
Two equivalent connections (Fast Ethernet) are available for establishing the PLC I/O Interface
communication network based on PROFINET.
Two cable ties are included in the scope of delivery. You use these to secure the Ethernet
cables on the cover plate at the rear of the machine control panel.
Connectable components
7.1 MCP 483C PN
PPU
98 Manual, 01/2014, 6FC5397-2DP40-3BA3
