Name Function Status Meaning
H501 BUS_SYNC Does not light
up
No PROFINET communication.
Lights up PROFINET is synchronized (STOP state).
Flashes (0.5
Hz)
PROFINET is synchronized (RUN state).
H502 BUS_FAULT Lights up PROFINET group fault.
H505 Temperature alarm (red) Lights up At least one temperature limit is being exceeded.
7.3.1 Mounting
Installation
The module can be attached at a suitable position via the four mounting holes (e.g. behind the
machine control panel or in the control cabinet). The selection of the appropriate mounting
position depends on the interfaces used and the associated maximum cable lengths.
Four standard torx-slotted screws T20/M4 are used to attach the module.

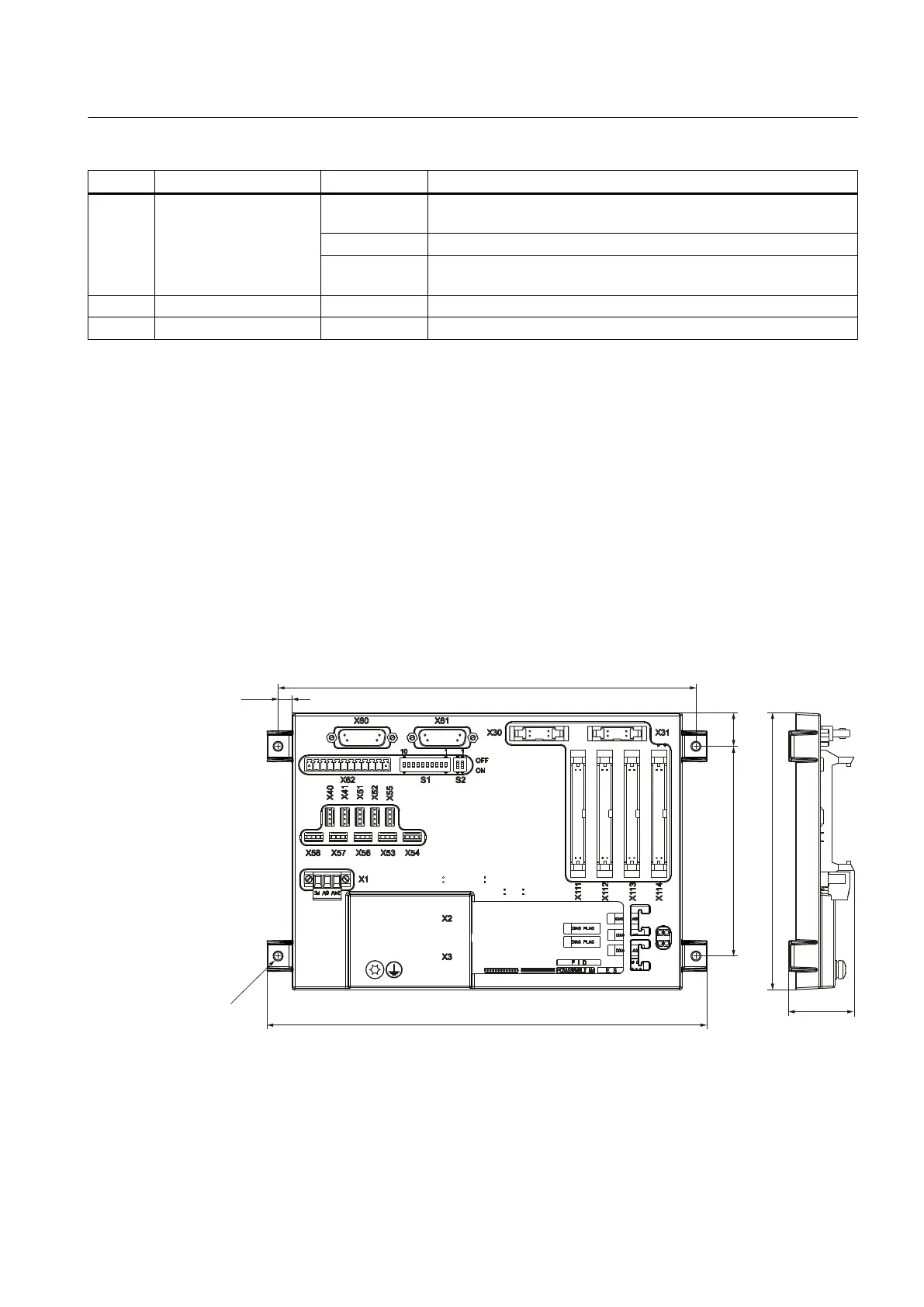

MCP Interface PN dimension drawing
[
Figure 7-23 MCP Interface PN dimension drawing
Connectable components
7.3 MCP Interface PN
PPU
Manual, 01/2014, 6FC5397-2DP40-3BA3 133
