7.4.2 Mounting

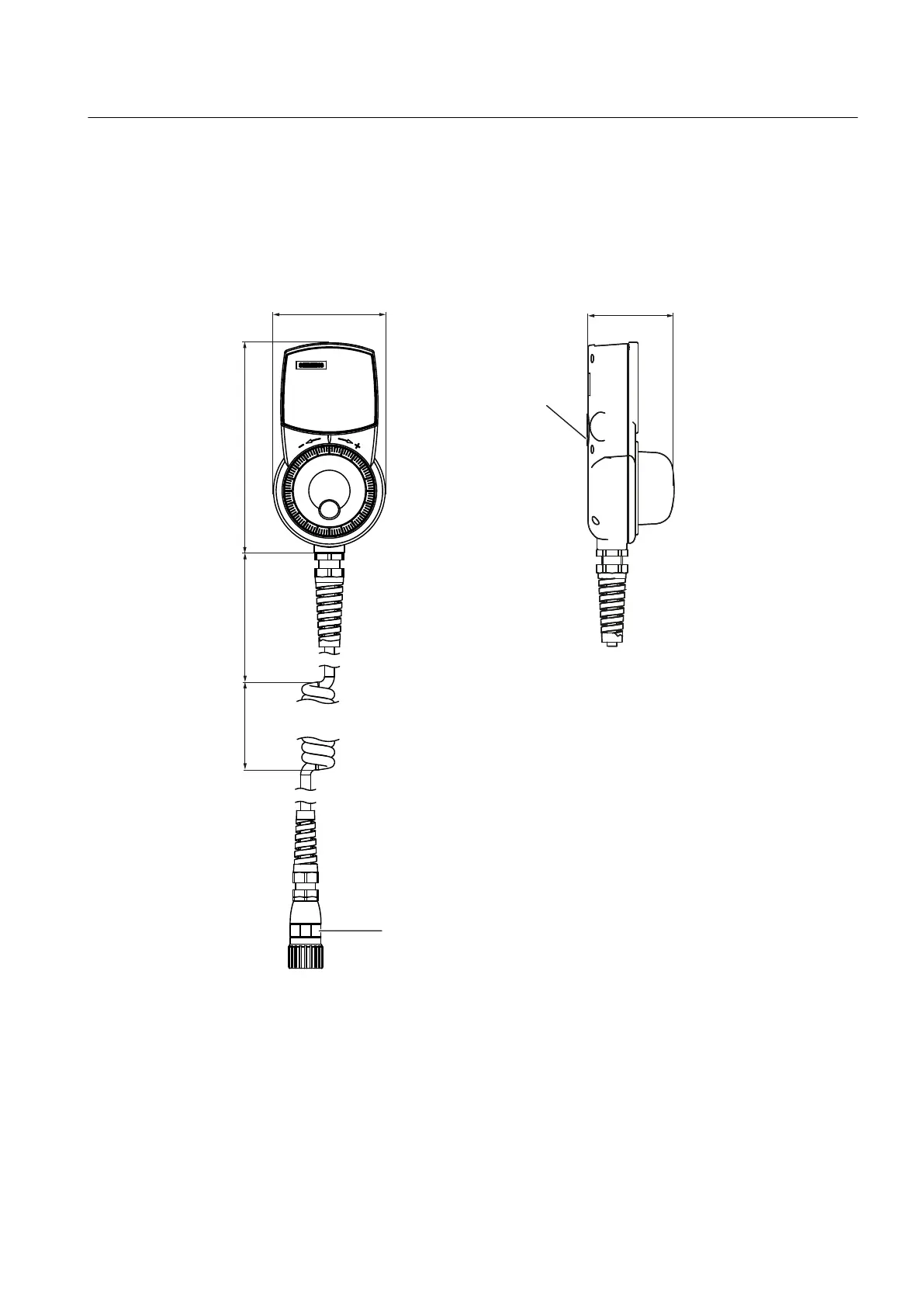

Dimensions of the electronic handheld handwheel
SLQFRQQHFWRU
0DJQHWLFFODPS




Figure 7-30 Front view and side view
Additional options
Optionally, the handheld electronic handwheel can be stored in a screw-on holder. The holder
is mounted using three M4 screws (included in the scope of delivery).
See also: Mini handheld unit, Chapter "Mounting (Page 157)"
Connectable components
7.4 Electronic handwheel
PPU
Manual, 01/2014, 6FC5397-2DP40-3BA3 151
