Sonoscape E1 User Manual

2 System Overview
Basic User Manual 21
2.3.7 Basic Screen
3
6
51012 78911
21
Sonoscape
New hosp.
XXX
XXXXX
MI 0.2
女
XXXXXX TIS 0.732Dr Ng Kit Lenug
2014-11-06 10:39AM 19700101_203151
0
5
10
15
NEXT
7.5
4/20
1/1P
1
2
3
4
Cine
s
415
16
13
14
Frequncy
3.7-4.5
Line Density
Med
Gray Map
2
Chroma
Off
μScan
3
Persist
Low
DR
140
Power
100%
Sector Width/Angle
100%
Focus Area
3
Widescan
Off
Compond
1

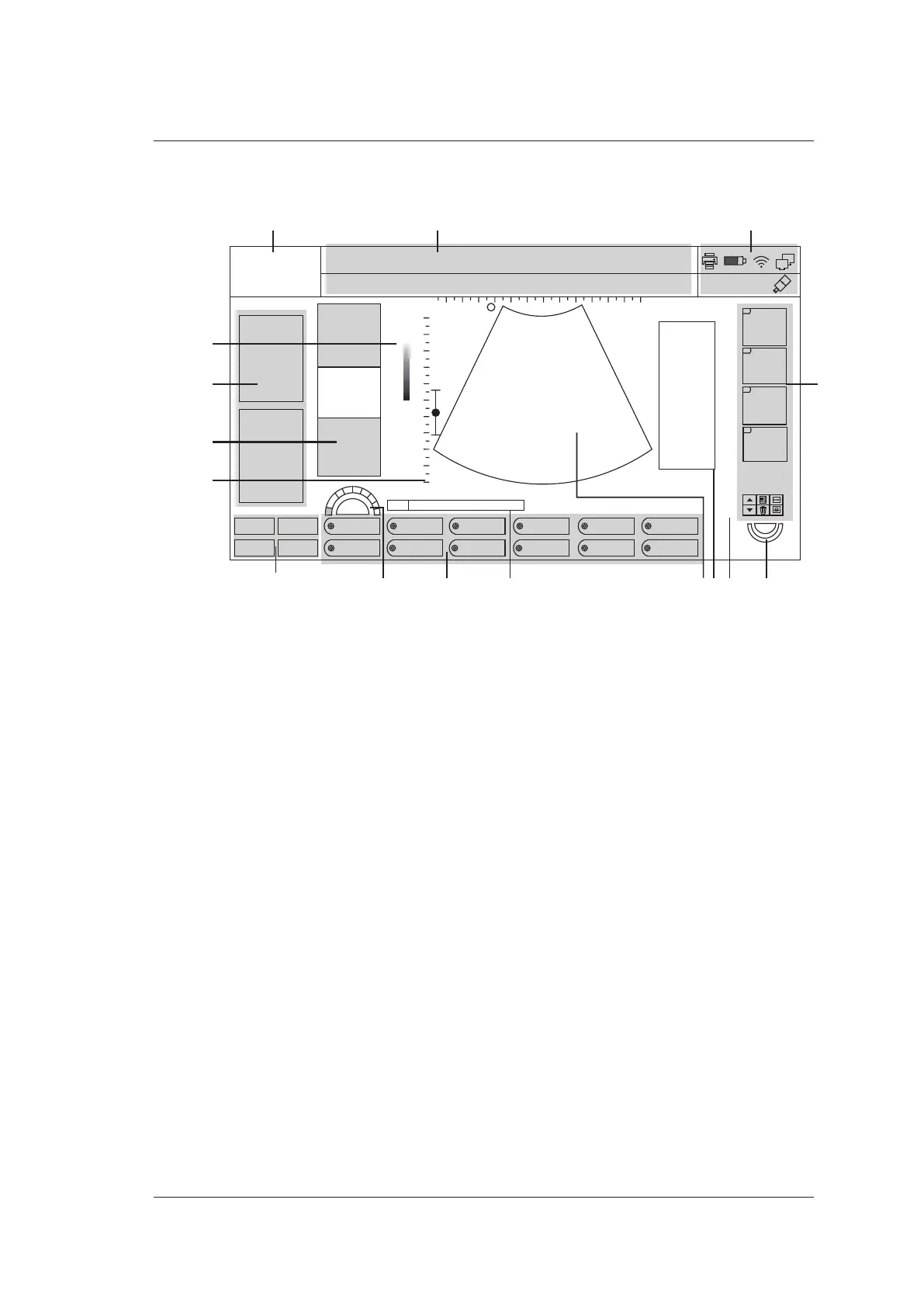

Figure 2-8 Basic Screen
1 Manufacturer logo
2 Information bar
3 Status bar
4 Clipboard
5 NEXT key
6 Cine loop icon (in frozen mode)
7 Measured result box
8 Imaging area
9 Cine loop status (in frozen mode)
10 Imaging parameters
11 Parameter value/level
12 Advanced function keys
13 Depth scale and focal position
14 Imaging information
15 Measurement parameter/annotation box/menu area
16 Grayscale map
