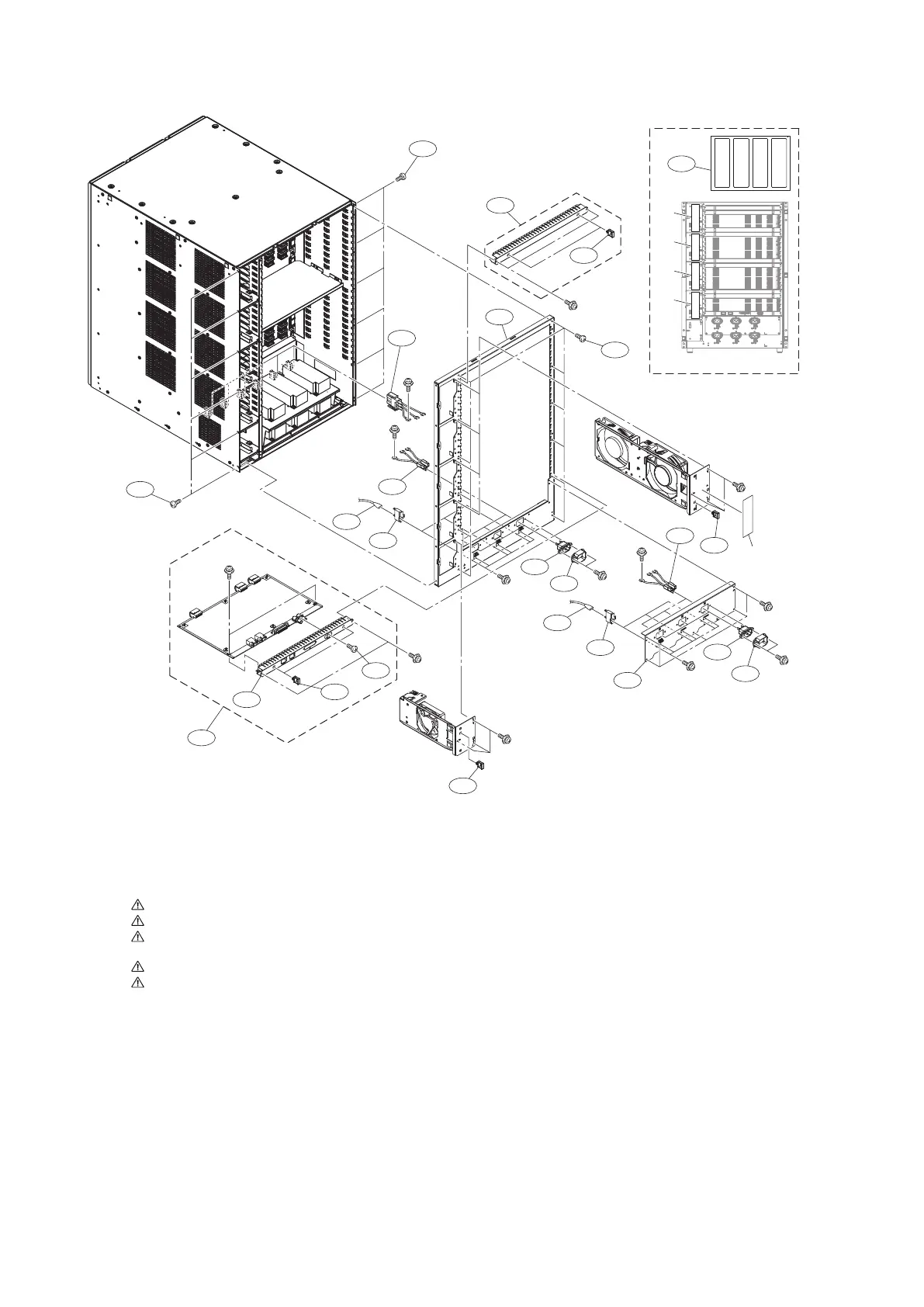

Sony XVS-9000 Service Manual

Rear
PSW
3 x 6
a to d
a
PSW
3 x 6
PSW
3 x 6
PSW
3 x 6
PSW
3 x 12
PSW
4 x 8
PSW
4 x 8
PSW
2.6 x 6
PSW
3 x 6
Rear View
PSW
3 x 6
PSW
3 x 6
PSW
3 x 12
PSW
4 x 8
b
c
d
a b c d
310
316
308
310
314
301
312
312
307
303
310
302
306
305
311
304
309
307
303
315
304
309
306
310
313
No. Part No. SP Description
301 A-2107-153-A s CN BLANK ASSY
302 A-2225-826-A s CN-4020 COMPL
303 1-523-514-11 s BREAKER
304 1-842-404-11 s AC INLET (SCREW) 3P FASTEN
305 1-971-160-11 s HARNESS, SUB NF-MB
306 1-971-161-11 s HARNESS, SUB INLET-NF
307 1-971-162-11 s HARNESS, SUB INLET-BREAKER
308 2-655-586-01 s SCREW +B M2.6 EG
309 2-990-241-02 s HOLDER (A), PLUG
310 3-172-089-01 o HANDLE
311 3-725-295-21 s SCREW, (+) (B3)
312 3-733-690-01 s +B 4X6 (CU,NI)
313 4-744-382-01 s PANEL, REAR
314 4-744-387-01 s PANEL (CN-4020)
315 4-744-393-01 s PANEL (2), REAR
316 4-744-398-01 s LABEL, CN SLOT
7-621-759-45 s +PSW, 2.6X6
7-682-947-01 s SCREW +PSW 3X6
7-682-950-01 s SCREW +PSW 3X12
7-682-961-01 s SCREW +PSW 4X8
XVS-9000-C/XVS-8000-C/XVS-7000-C/XVS-6000-C
6-5
