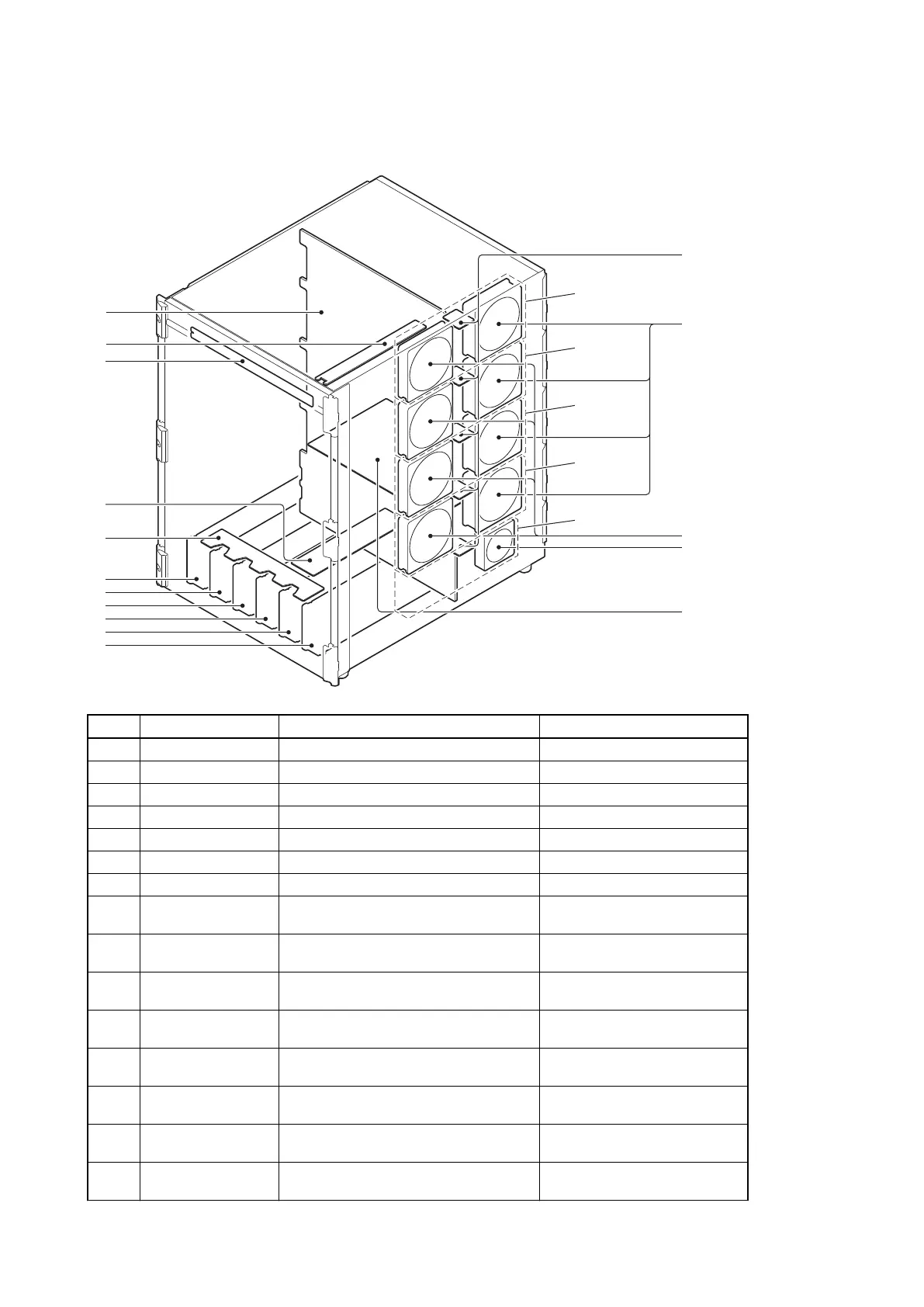

1-2-2. Other Parts
7
16
15
14
1
Fan slot A
13
12
11
10
9
8
2
3
5
6
4
Fan slot B
Fan slot C
Fan slot D
Fan slot E
No. Name Function Remarks
1 CN-3824 board FAN connection board XVS-9000
2 CN-4018 board Switch board for PSU XVS-9000
3 CN-4019 board Relay board between front switch and PSU XVS-9000
4 HN-442 board Relay board XVS-9000
5 FP-301 board Illuminated bar board XVS-9000
6 MB-1249 board Mother board XVS-9000
7 CN-4020 board Reference Input/SCS Interface/GPI I/O board XVS-9000
8 Switching regulator － Power supply unit A
(APS-406)
9 Switching regulator － Power supply unit B
(APS-406)
10 Switching regulator － Power supply unit C
(APS-406)
11 Switching regulator － Power supply unit D
(APS-406)
12 Switching regulator － Power supply unit E
(APS-406)
13 Switching regulator － Power supply unit F
(APS-406)
14 DC fan (120 square) － Right side of the XVS-9000
Rear side of the fan slot A to D
15 DC fan (120 square) － Right side of the XVS-9000
Rear side of the fan slot A to D
Continued
XVS-9000-C/XVS-8000-C/XVS-7000-C/XVS-6000-C
1-3
