Sony XVS-9000 Service Manual

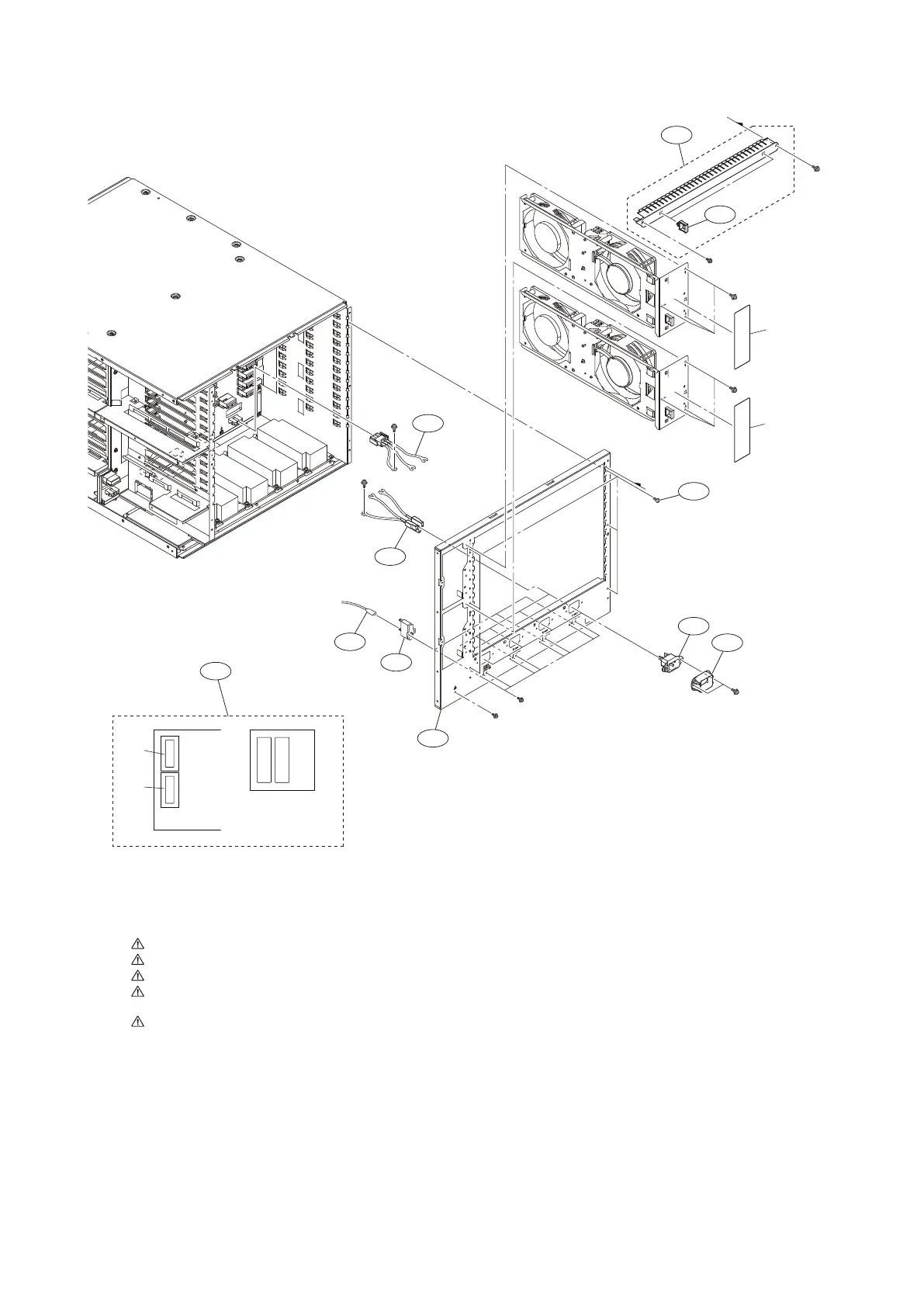

Rear
ab
b
a
201
208
209
203
202
206
210
205
204
211
207
PSW3 x 6
PSW3 x 6
PSW3 x 6
PSW3 x 6
PSW3 x 6
PSW3 x 12
PSW4 x 8
PSW4 x 8
PSW4 x 8
b
a
No. Part No. SP Description
201 A-2107-153-A s CN BLANK ASSY
202 1-523-463-11 s BREAKER
203 1-842-404-11 s AC INLET (SCREW) 3P FASTEN
204 1-971-160-11 s HARNESS, SUB NF-MB
205 1-971-161-11 s HARNESS, SUB INLET-NF
206 1-971-162-11 s HARNESS, SUB INLET-BREAKER
207 2-990-241-02 s HOLDER (A), PLUG
208 3-172-089-01 o HANDLE
209 3-725-295-21 s SCREW, (+) (B3)
210 4-688-789-01 s LABEL, CN SLOT
211 4-688-795-01 s PANEL, REAR
7-682-947-01 s SCREW +PSW 3X6
7-682-950-01 s SCREW +PSW 3X12
7-682-961-01 s SCREW +PSW 4X8
XVS-9000-C/XVS-8000-C/XVS-7000-C/XVS-6000-C
6-14
