Sony XVS-9000 Service Manual

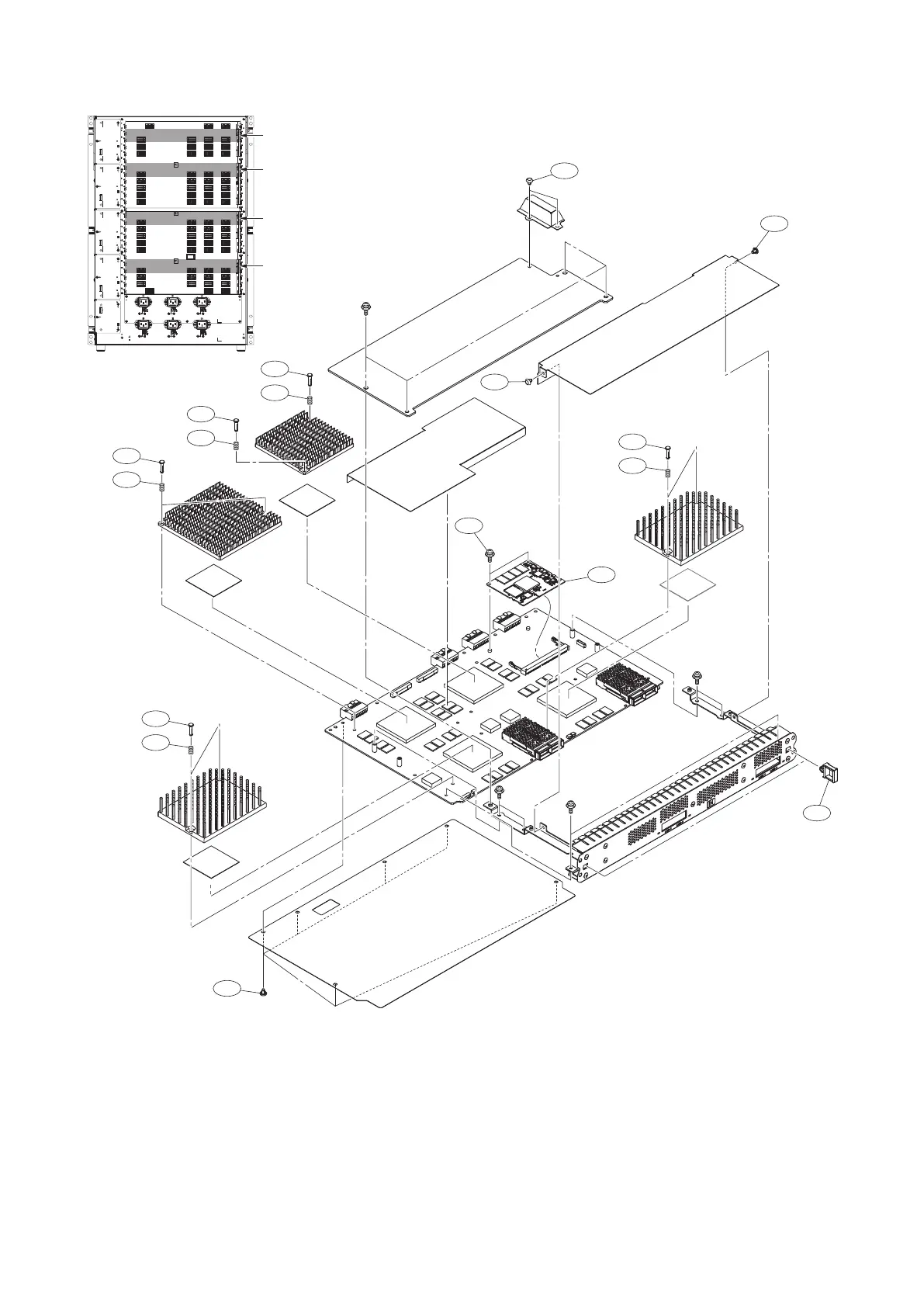

NET-42 Board
PSW
2.6 x 6
PSW
3 x 6
PSW
3 x 6
PSW
3 x 6
Rear view
(XVS-9000)
SLOT No. 2/3
SLOT No. 21/22
SLOT No. 7/8
SLOT No. 14/15
1804
1804
1804
1806
1805
1806
1805
1806
1805
1806
1805
1806
1802
1801
1803
1805
1804
No. Part No. SP Description
1801 A-2228-998-A s MPU-163B COMPL (for XKS-C9111)
A-5007-043-A s MPU-163C COMPL (for XKS-C9111N)
1802 2-640-315-02 o SCREW (M2X5), SMALL, +P, SW
1803 3-172-089-01 o HANDLE
1804 3-531-576-11 s RIVET
1805 4-143-557-01 s SPRING, COMPRESSION
1806 4-143-559-01 s PIN, PUSH
No. Part No. SP Description
7-621-759-45 s +PSW, 2.6X6
7-682-947-01 s SCREW +PSW 3X6
XVS-9000-C/XVS-8000-C/XVS-7000-C/XVS-6000-C
6-40
