Sony XVS-9000 Service Manual

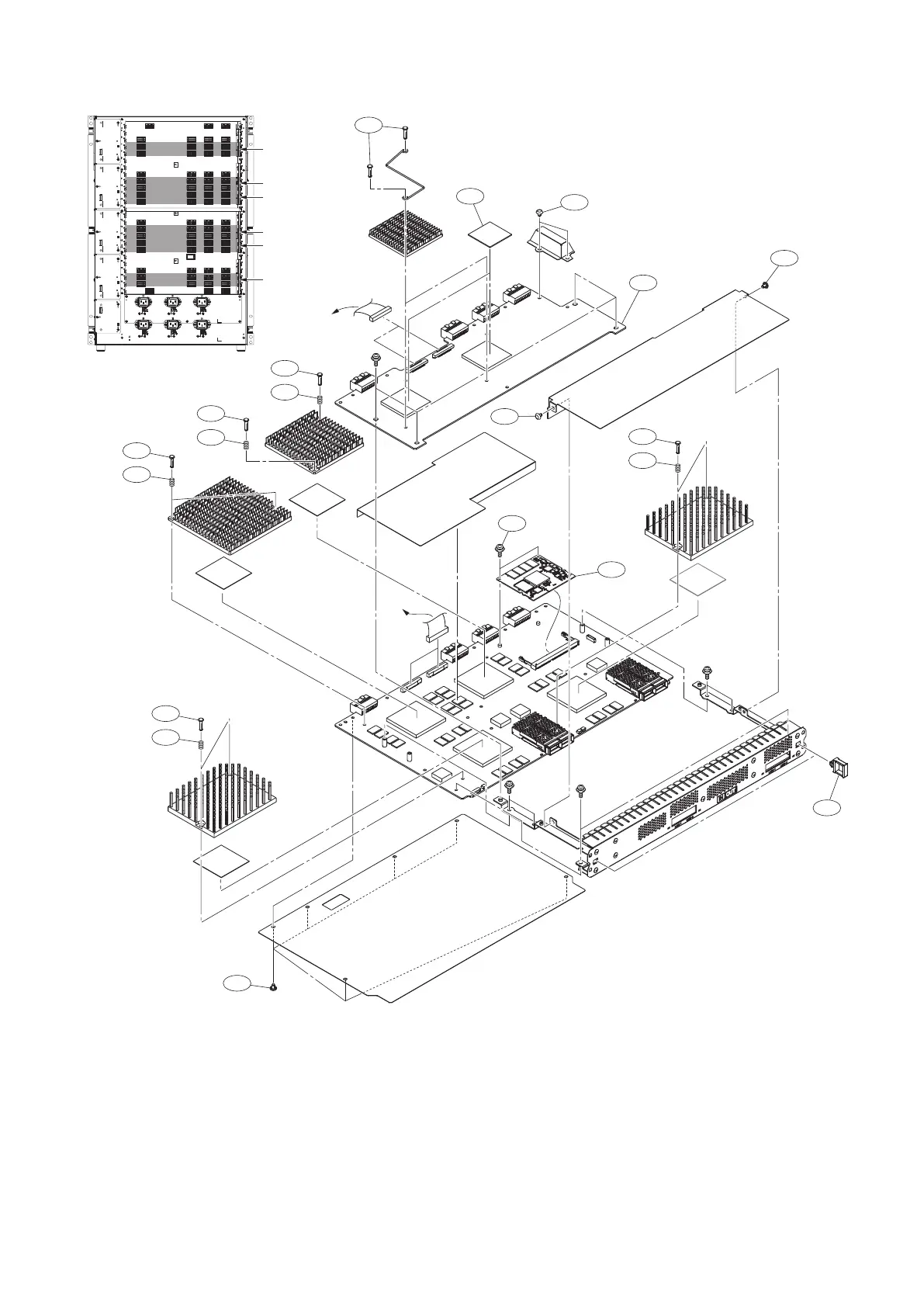

CNO-45/NET-42 Boards
PSW
2.6 x 6
PSW
3 x 6
A
A
PSW
3 x 6
PSW
3 x 6
1905
1905
1905
1907
1908
1907
1902
1906
1907
1906
1907
1906
1907
1906
1905
1907
1903
1901
1904
1906
Rear view
(XVS-9000)
SLOT No. 4/5
SLOT No. 23/24
SLOT No. 11/12
SLOT No. 9/10
SLOT No. 18/19
SLOT No. 16/17
No. Part No. SP Description
1901 A-2228-998-A s MPU-163B COMPL (for XKS-C9121)
A-5007-043-A s MPU-163C COMPL (for XKS-C9121N)
1902 A-2229-034-A s CNO-45 COMPL
1903 2-640-315-02 o SCREW (M2X5), SMALL, +P, SW
1904 3-172-089-01 o HANDLE
1905 3-531-576-11 s RIVET
1906 4-143-557-01 s SPRING, COMPRESSION
1907 4-143-559-01 s PIN, PUSH
No. Part No. SP Description
1908 4-744-871-01 s SHEET (1 (38X38)), RADIATION
7-621-759-45 s +PSW, 2.6X6
7-682-947-01 s SCREW +PSW 3X6
XVS-9000-C/XVS-8000-C/XVS-7000-C/XVS-6000-C
6-41
