Sony XVS-9000 Service Manual

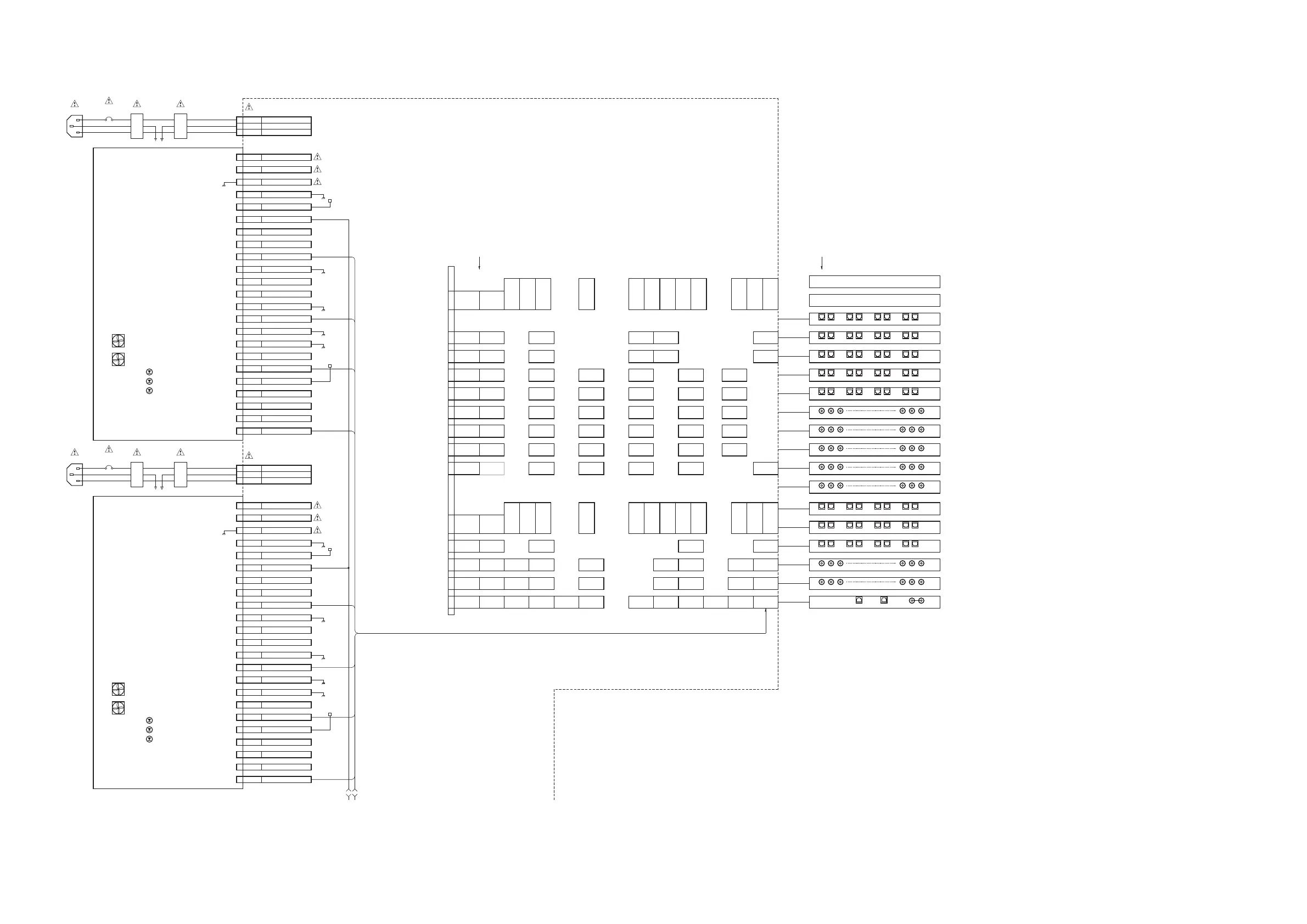

Frame Wiring (XVS-8000)
Frame Wiring (XVS-8000)_L
AC INLET A
Circuit
Protector
Filter HARNESS
Neutral
FG
Live
9-12
1-4
5-8
AC1_N
AC1_FG
AC1_L
CN5
P1 AC1_N
CN1
P2 AC1_L
CN1
P3 AC1_FG
CN1
P4-P6 GND
CN1
P7-P9 12V
CN1
A1 CURRENTSHARE
CN1
A2 PS1_I2C_SCL
CN1
A3 PS1_I2C_GA1
CN1
A5 PS1_AC_OK
CN1
A6 SIGNAL_GND
CN1
B2 PS1_EXIST
CN1
B3 PS1_I2C_GA0
CN1
B4 5V_STANDBY_RETURN
CN1
B6 PS1_DC_OK
CN1
C1 -SENSE
CN1
C3 I2C_GND
CN1
C4 PS1_5V_STANDBY
CN1
C6 PS1_INHIBIT
CN1
D1 +SENSE
CN1
D2 PS1_ENABLE
CN1
D3 PS1_I2C_SDA
CN1
D4 PS1_I2C_GA2
CN1
D6 PS1_FAULT
CN1
12V
12V
POWER SUPPLY UNIT A
APS-406
FAN
FAN
Green LED(AC OK)
Green LED(DC OK)
Orange LED(FAULT)
AC INLET B
Circuit
Protector
Filter HARNESS
Neutral
FG
Live
9-12
1-4
5-8
AC2_N
AC2_FG
AC2_L
CN6
P1 AC2_N
CN2
P2 AC2_L
CN2
P3 AC2_FG
CN2
P4-P6 GND
CN2
P7-P9 12V
CN2
A1 CURRENTSHARE
CN2
A2 PS2_I2C_SCL
CN2
A3 PS2_I2C_GA1
CN2
A5 PS2_AC_OK
CN2
A6 SIGNAL_GND
CN2
B2 PS2_EXIST
CN2
B3 PS2_I2C_GA0
CN2
B4 5V_STANDBY_RETURN
CN2
B6 PS2_DC_OK
CN2
C1 -SENSE
CN2
C3 I2C_GND
CN2
C4 PS2_5V_STANDBY
CN2
C6 PS2_INHIBIT
CN2
D1 +SENSE
CN2
D2 PS2_ENABLE
CN2
D3 PS2_I2C_SDA
CN2
D4 PS2_I2C_GA2
CN2
D6 PS2_FAULT
CN2
12V
12V
POWER SUPPLY UNIT B
APS-406
FAN
FAN
Green LED(AC OK)
Green LED(DC OK)
Orange LED(FAULT)
CNE104
CNE105
CNE106
CNE107
CNE108
CNE109
CNE110
CNE111
CNG106
CNG107
CNG108
CNG109
CNG110
CNG111
CNJ104
CNJ105
CNJ106
CNJ107
CNJ108
CNJ109
CNJ110
CNJ111
CNK104
CNK105
CNL106
CNL107
CNL108
CNL109
CNL110
CNL111
CNN106
CNN107
CNN108
CNN109
CNN110
CNC105
CNC106
CNC107
CNC108
CNC109
CNC110
CNC111
CNC104
CNB105
CNB106
CNB107
CNB108
CNB109
CNB110
CNB111
CNB104
DVP-53A Board(XKS-8470),DVP-68 Board(XKS-8475)
DVP-53A Board(XKS-8470),DVP-68 Board(XKS-8475)
MIX-57 Board(XKS-8120)
MIX-57 Board(XKS-8120)
MIX-57 Board(XKS-8120)
MIX-57 Board(XKS-8120)
MIX-57 Board(XKS-8120)
VPR-129 Board(XKS-8440)
(No Board)
SLOT 4
SLOT 5
SLOT 6
SLOT 7
SLOT 8
SLOT 9
SLOT 10
SLOT 11
SLOT 1
SLOT 2
SLOT 3
CNB102 CNC102
CNT13 CNT14 CNT15 CNT16 CNT17 CNT18 CNT19 CNT20 CNT21 CNT22 CNT23 CNT24
MB-1223 Board *1
Daughter Board name(Main Board)
XPT-38 Board
Caution: Each Daughter Board has a few fuse.
(except *1,*2)
CNP104
CNP105
CNP111
CNB114 CNC114
CNT01 CNT02 CNT03 CNT04 CNT05 CNT06 CNT07 CNT08 CNT09 CNT10 CNT11 CNT12
XPT-38 Board
CNE115
CNL115CNC115CNB115 CNP115
VPR-129A Board(XKS-8460)
OUT-38 Board
CNC116CNB116 CND116 CNE116 CNG116 CNL116CNK116 CNP116CNN116
OUT-38A Board(XKS-8160)
CNC117CNB117 CND117 CNE117 CNG117 CNL117CNK117 CNP117CNN117
CA-92 Board
CNC118CNB118 CND118 CNE118 CNG118 CNL118CNK118 CNP118CNN118CNJ118
SLOT 15
SLOT 16
SLOT 17
SLOT 18
SLOT 14
SLOT 12
SLOT 13
IN
1-16
1-1 1-2 2-1 2-2 3-1 3-2 4-1 4-2
NET-28/32/42A,CNI-43/44/45A Board
IN
17-32
1-1 1-2 2-1 2-2 3-1 3-2 4-1 4-2
NET-28/32/42A,CNI-43/44/45A Board
(No Board)
(No Board)
Daughter Board name(Rear Board)
SLOT 1
Rear Panel
SLOT 2
Rear Panel
SLOT 3
Rear Panel
SLOT 4
Rear Panel
IN
33-48
1-1 1-2 2-1 2-2 3-1 3-2 4-1 4-2
NET-28/32/42A,CNI-43/44/45A Board
SLOT 5
Rear Panel
IN
49-64
1-1 1-2 2-1 2-2 3-1 3-2 4-1 4-2
NET-28/32/42A,CNI-43/44/45A Board
SLOT 6
Rear Panel
IN
65-80
1-1 1-2 2-1 2-2 3-1 3-2 4-1 4-2
NET-28/32/42A,CNI-43/44/45A Board
SLOT 7
Rear Panel
IN
81-96
SLOT 8
Rear Panel
NET-28/32/42A,CNI-43/44/45A Board
1 2 3 14 15 16
IN
97-112
SLOT 9
Rear Panel
NET-28/32/42A,CNI-43/44/45A Board
1 2 3 14 15 16
IN
113-128
SLOT 10
Rear Panel
NET-28/32/42A,CNI-43/44/45A Board
1 2 3 14 15 16
IN
129-144
SLOT 11
Rear Panel
NET-28/32/42A,CNI-43/44/45A Board
1 2 3 14 15 16
IN
145-160
SLOT 12
Rear Panel
NET-28/32/42A,CNI-43/44/45A Board
1 2 3 14 15 16
OUT
33-48
1-1 1-2 2-1 2-2 3-1 3-2 4-1 4-2
NET-28A/32A/42B,CNO-43/44A Board
SLOT 15
Rear Panel
OUT
17-32
1-1 1-2 2-1 2-2 3-1 3-2 4-1 4-2
NET-28A/32A/42B,CNO-43/44A Board
SLOT 14
Rear Panel
OUT
1-16
1-1 1-2 2-1 2-2 3-1 3-2 4-1 4-2
NET-28A/32A/42B,CNO-43/44A Board
SLOT 13
Rear Panel
OUT
49-64
SLOT 16
Rear Panel
NET-28A/32A/42B,CNO-43/44A Board
1 2 3 14 15 16
OUT
65-80
SLOT 17
Rear Panel
NET-28A/32A/42B,CNO-43/44A Board
1 2 3 14 15 16
SLOT 18
Rear Panel
CN-3807 Board *2
REF IN
MVS LAN UTL LAN
FG FG
FG FG
ERROR STATUS
(No Board)
*1: No Fuse,because no Drive Circuits.
*2: IC link
CNM118CNF118
2 1
XVS-9000-C/XVS-8000-C/XVS-7000-C/XVS-6000-C
