Sony XVS-9000 Service Manual

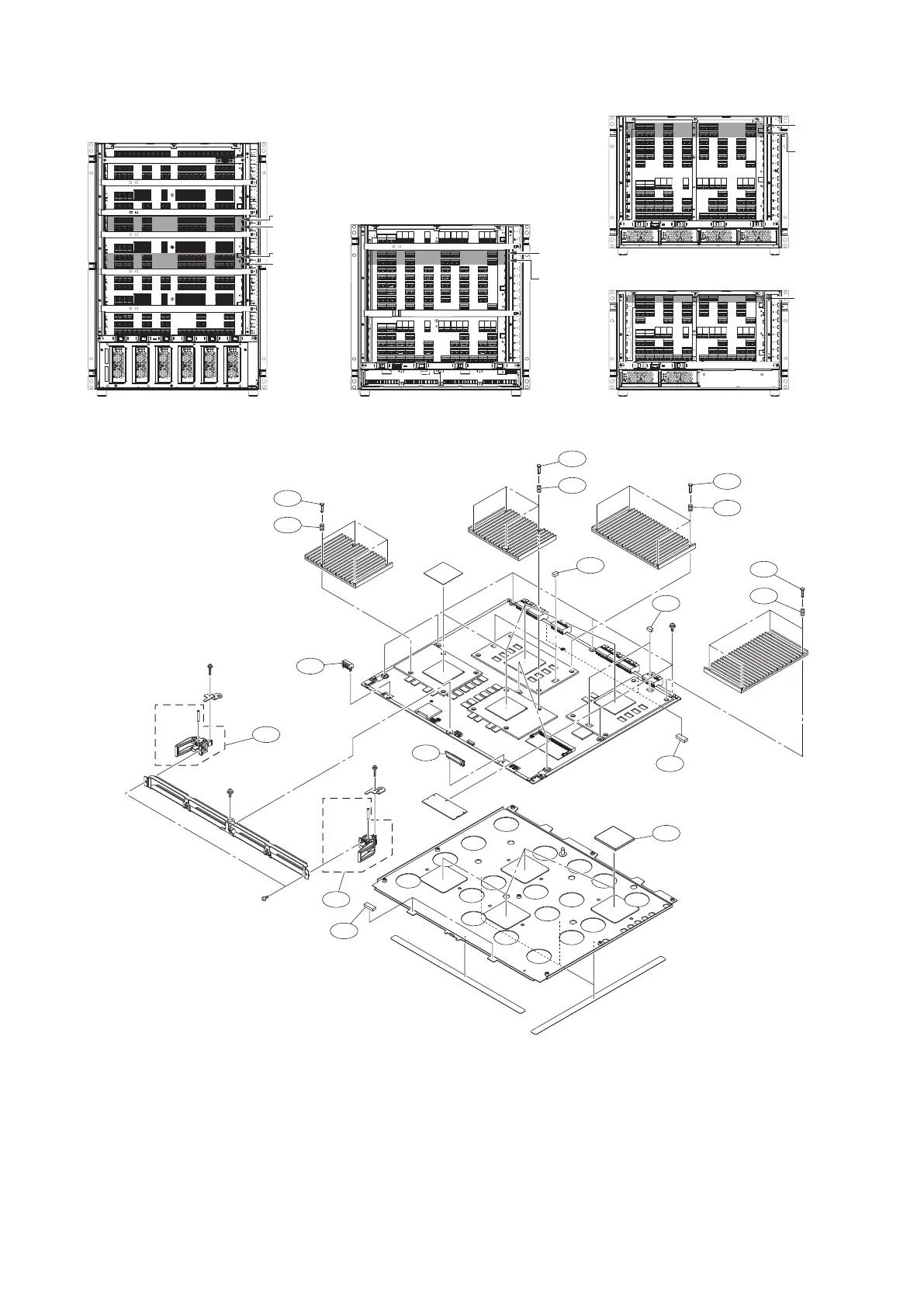

DVP-68 Board
P3 x 6
PSW
3 x 14
PIN
3 x 18
PSW
3 x 14
PIN
3 x 18
PSW
3 x 6
PSW
3 x 6
1402
1404
1401
1403
1408
1408
1407
1403
1404
Front view
(XVS-9000)
SLOT No. 10
SLOT No. 11
SLOT No. 15
SLOT No. 16
Front view
(XVS-8000)
Front view
(XVS-7000)
Front view
(XVS-6000)
1406
1405
1406
1405
1406
1405
1406
1405
SLOT No. 4
SLOT No. 5
SLOT No. 1
SLOT No. 2
SLOT No. 1
No. Part No. SP Description
1401 A-1771-682-A s ASSY, 7SEG
1402 A-1771-683-A s ASSY, PBS
1403 X-2583-078-2 s BOARD LEVER GF ASSY
1404 3-561-426-01 s CUSHION
1405 4-143-557-01 s SPRING, COMPRESSION
1406 4-143-559-01 s PIN, PUSH
1407 4-564-357-01 s SHEET (3 (40X45)), RADIATION
No. Part No. SP Description
1408 4-745-257-01 s CUSHION(MX)
7-626-320-61 s PIN, SPRING 3X18
7-682-947-01 s SCREW +PSW 3X6
7-682-951-01 s SCREW +PSW 3X14
7-685-145-14 s SCREW +P 3X6 TYPE2 NON-SLIT
XVS-9000-C/XVS-8000-C/XVS-7000-C/XVS-6000-C
6-36
