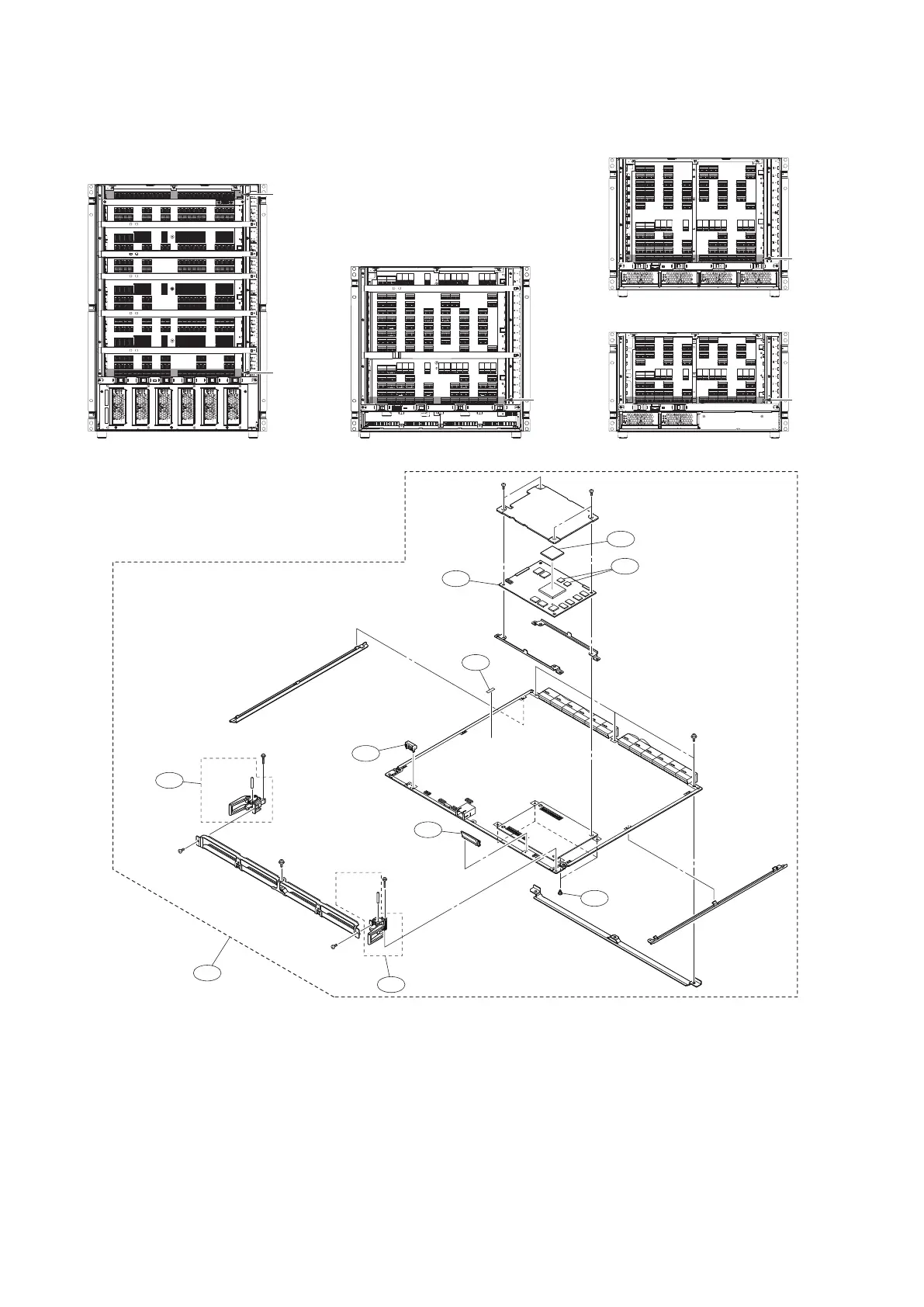

6-7. Exploded Views (Boards)
CA-92/CA-92A Boards
Front view
(XVS-8000)
SLOT No. 18
Front view
(XVS-7000)
SLOT No. 13
Front view
(XVS-6000)
SLOT No. 9
P3 x 6
P3 x 6
PSW3 x 6
PSW3 x 6
B3 x 10
B3 x 10
PSW3 x 14
PSW3 x 14
PIN
3 x 18
PIN
3 x 18
402
405
409
406
408
401
407
404
403
404
Front view
(XVS-9000)
SLOT No. 1
(CA-92A boarrd)
SLOT No. 25
No. Part No. SP Description
401 A-1771-682-A s ASSY, 7 SEG
402 A-1771-683-A s ASSY, PBS
403 A-2092-914-A s MOUNTED CIRCUIT BOARD, CA-92
A-2226-192-A s MOUNTED CIRCUIT BOARD, CA-92A
404 X-2583-078-2 s BOARD LEVER GF ASSY
405 1-857-571-12 s PC BOARD, MOUNT(CPU-DP MODULE)
406 4-187-619-01 s SHEET,RADIATION(25X25X2)
407 4-812-134-11 s RIVET (DIA. 3.5), NYLON
408 6-714-073-01 s IC 88E1118R-A0-NNC2C000
No. Part No. SP Description
409 4-545-123-01 s LABEL(10A), FUSE
7-626-320-61 s PIN, SPRING 3X18
7-682-549-09 s SCREW +B 3X10
7-682-947-01 s SCREW +PSW 3X6
7-682-951-01 s SCREW +PSW 3X14
7-685-145-14 s SCREW +P 3X6 TYPE2 NON-SLIT
