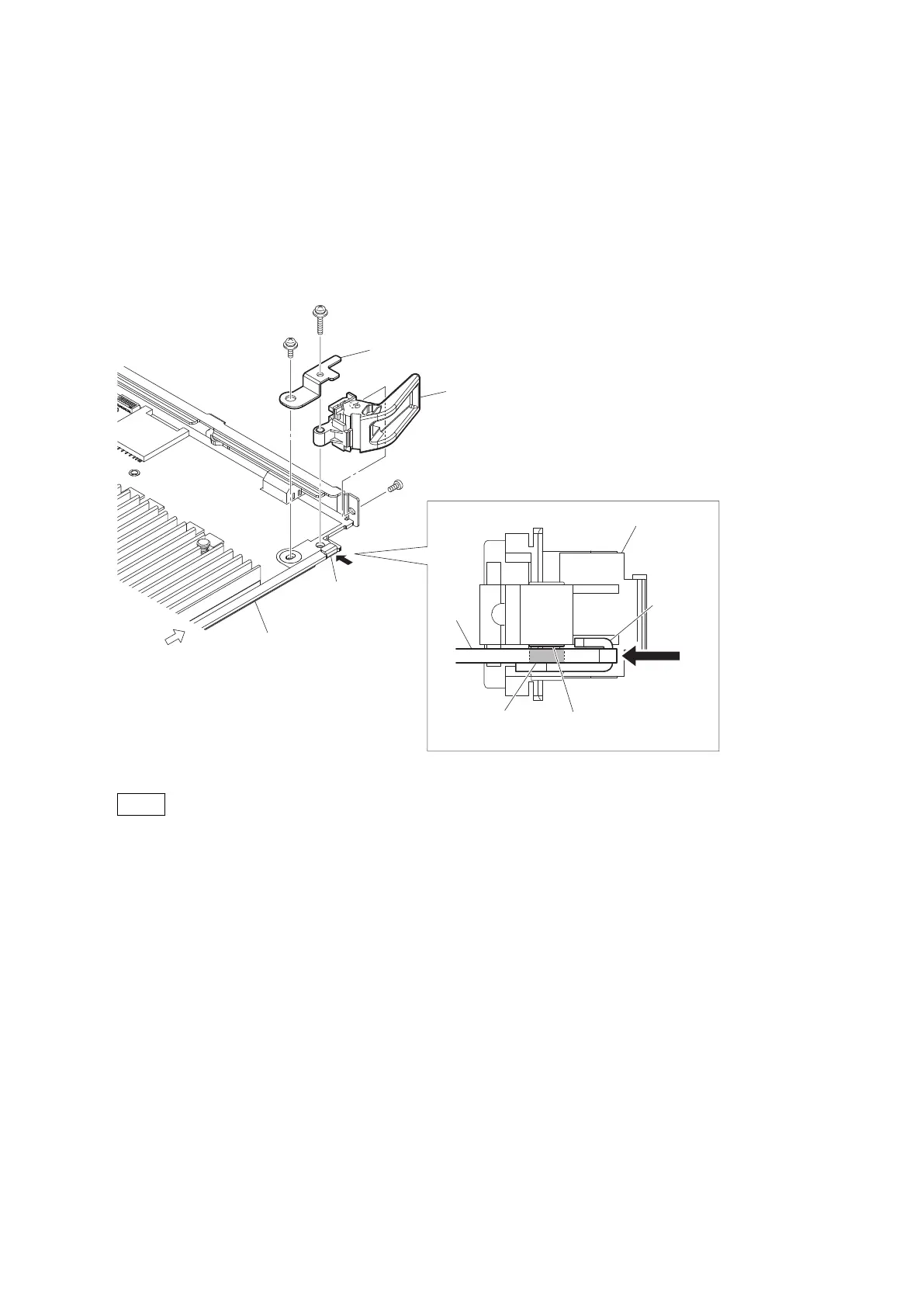

1-10. Replacement of Eject Lever of the DVP-68 Board
Procedure
1. Remove the screw (P3 x 6).
2. Remove the screw (PSW3 x 6).
3. Remove the screw (PSW3 x 14), then remove the reinforcing plate L and eject lever.
4. Remove the reinforcing plate R and eject lever on the opposite side in the same procedure.
PSW
3 x 6
P3 x 6
PSW
3 x 14
Eject lever
Reinforcing plate L
Eject lever
DVP-68 board
A
Plate nut F
Plate nut F
Convex portion of the
eject lever
Hole of the board
View on arrow A
Board
5. Install the removed parts by reversing the steps of removal.
Note
Push the plate nut F in the direction of the arrow (direction towards board) so that the convex portion of the eject
lever fits into the hole of the board, then tighten the set screw (PSW3 x 14) of the eject lever.
