Sony XVS-9000 Service Manual

Rear
abc
a
b
c
c
b
a

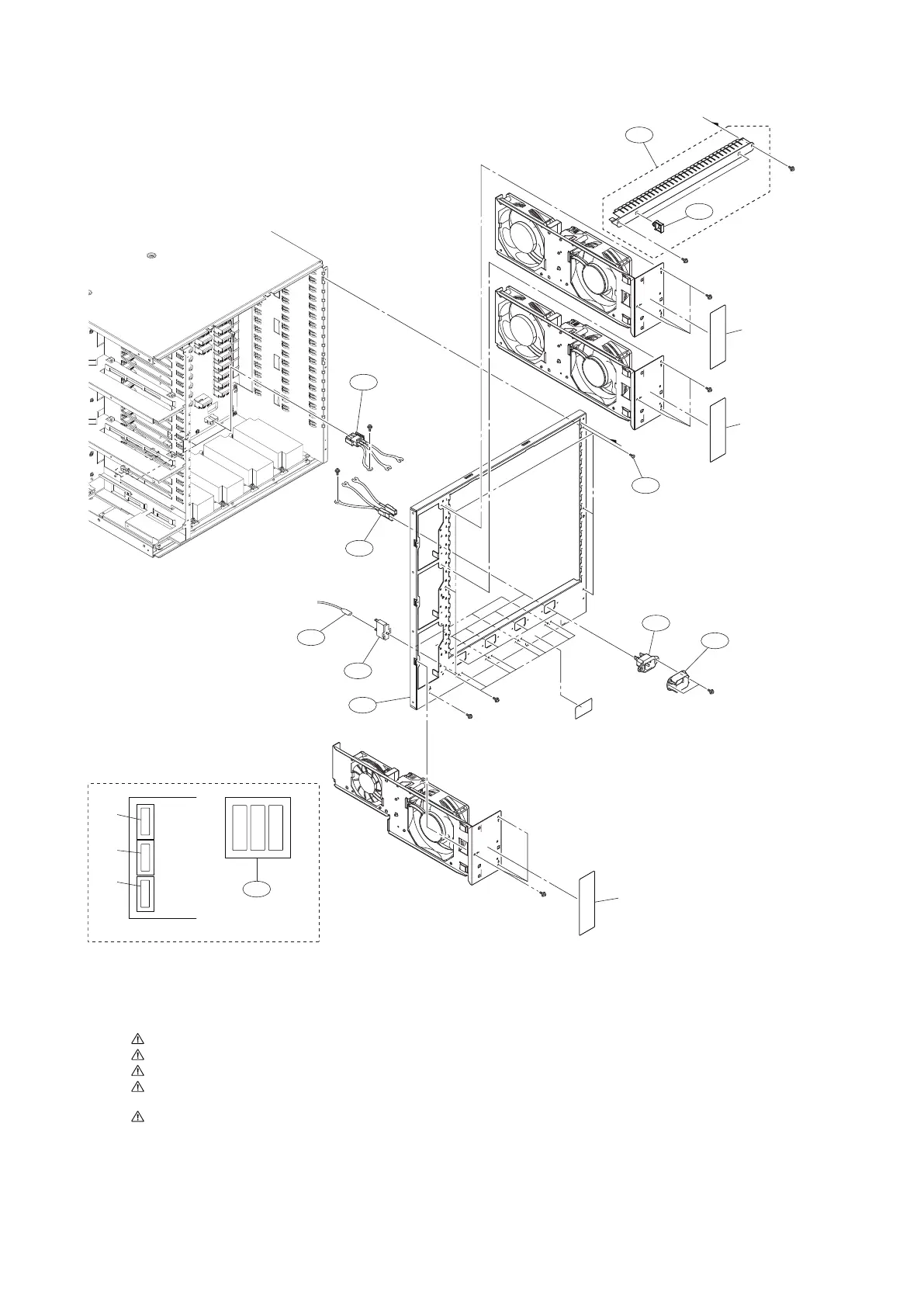

RearView
PSW3 x 6
PSW3 x 6
PSW3 x 6
PSW3 x 6
PSW3 x 6
PSW
3 x 6
PSW4 x 8
PSW
4 x 8
PSW4 x 8
PSW3 x 12
210
207
209
208
201
205
206
202
211
204
203
No. Part No. SP Description
201 A-2107-153-A s CN BLANK ASSY
202 1-523-463-11 s BREAKER (15A/250V)
203 1-842-404-11 s AC INLET (SCREW) 3P FASTEN
204 1-971-160-11 s HARNESS, SUB NF-MB
205 1-971-161-11 s HARNESS, SUB INLET-NF
206 1-971-162-11 s HARNESS, SUB INLET-BREAKER
207 2-990-241-02 s HOLDER (A), PLUG
208 3-172-089-01 o HANDLE
209 3-725-295-21 s SCREW, (+) (B3)
210 4-586-455-01 s LABEL, CN SLOT
No. Part No. SP Description
211 4-586-462-01 s PANEL, REAR
7-682-947-01 s SCREW +PSW 3X6
7-682-950-01 s SCREW +PSW 3X12
7-682-961-01 s SCREW +PSW 4X8
XVS-9000-C/XVS-8000-C/XVS-7000-C/XVS-6000-C
6-10
