Sony XVS-9000 Service Manual

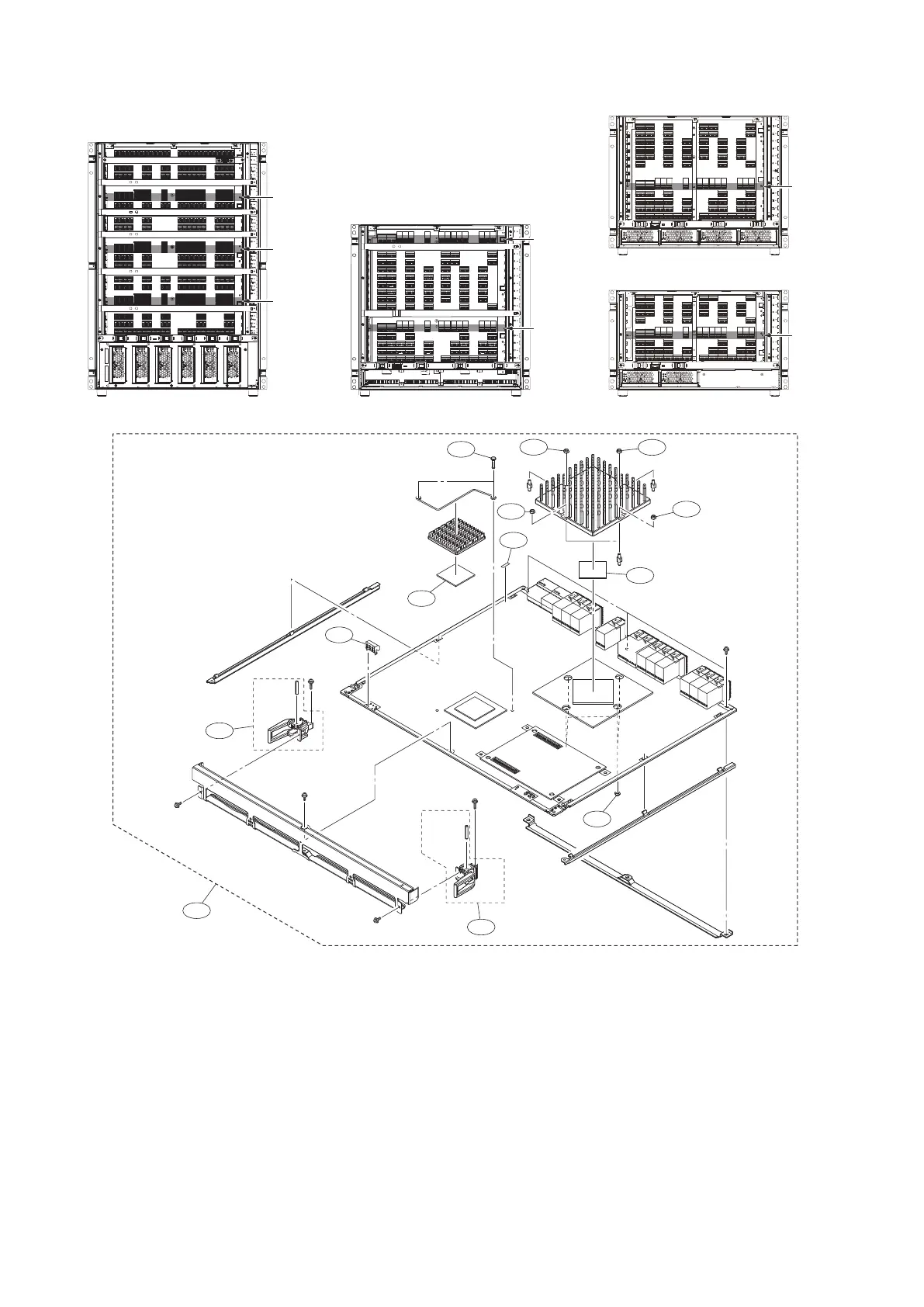

XPT-38 Board
Front view
(XVS-8000)
SLOT No. 14
SLOT No. 2
Front view
(XVS-7000)
SLOT No. 9
Front view
(XVS-6000)
SLOT No. 6
PSW3 x 6
PSW3 x 6
PSW3 x 6
PSW3 x 6
902
902
903
901
906
905
904
904
904
904
906
904
PIN
3 x 18
PIN
3 x 18
PSW
3 x 14
PSW
3 x 14
907
Front view
(XVS-9000)
SLOT No. 7
SLOT No. 14
SLOT No. 21
No. Part No. SP Description
901 A-1771-683-A s ASSY, PBS
902 A-1771-684-A s BOARD LEVER F ASSY
903 A-2084-268-A s MOUNTED CIRCUIT BOARD, XPT-38
904 3-942-866-02 s NUT (M3) (3X0.5), NYLON
905 4-143-559-01 s PIN, PUSH
906 4-187-620-01 s SHEET,RADIATION(33X33X1.5)
907 4-545-123-01 s LABEL(10A), FUSE
7-626-320-61 s PIN, SPRING 3X18
7-682-947-01 s SCREW +PSW 3X6
7-682-951-01 s SCREW +PSW 3X14
XVS-9000-C/XVS-8000-C/XVS-7000-C/XVS-6000-C
6-28
