Sony XVS-9000 Service Manual

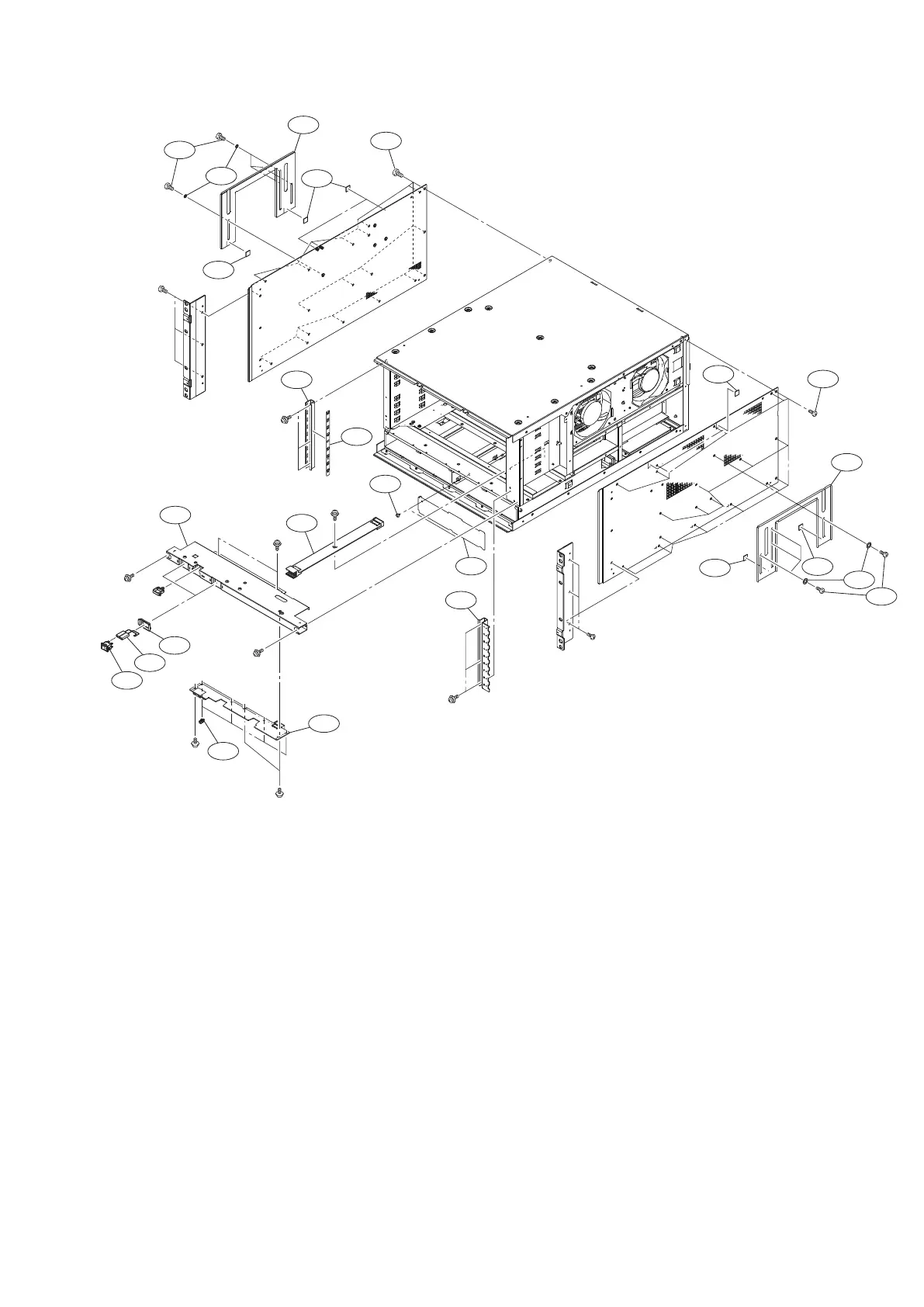

Main Chassis
113
110
111
114
115
102
105
112
116
110
107
107
110
110
113
106
117
109
101
108
104
103
110
106
117
PSW3 x 6
PSW3 x 6
PSW3 x 6
PSW3 x 6
PSW3 x 6
PSW3 x 6
PSW3 x 6
PSW3 x 6
B4 x 10
B4 x 10
No. Part No. SP Description
101 A-2082-233-A s CN-3825 MOUNT
102 A-2082-234-A s CN-3826 MOUNT
103 1-798-563-11 s SWITCH, POWER
104 1-971-158-11 s HARNESS, SUB CN3825-SW
105 3-531-576-51 o RIVET
106 3-701-443-21 s WASHER, 5 DIA.
107 3-733-690-01 s +B 4X6 (CU,NI)
108 4-098-036-01 s SADDLE WIRE (A)
109 4-586-453-01 s COVER,SWITCH
110 4-586-460-01 s CUSHION,HANDLE VIBRATION PROOF
111 4-688-805-01 s PLATE (L), LOCK
112 4-688-806-01 s PANEL, PSU BLANK
113 4-688-809-01 s HANDLE (S)
114 4-688-811-02 s LABEL, SLOT NUMBER
115 4-688-816-01 s PANEL, SW
116 4-688-817-01 s PLATE (R), LOCK
117 4-884-982-03 s SCREW, STEP
7-682-562-04 s SCREW +B 4X10
7-682-947-01 s SCREW +PSW 3X6
XVS-9000-C/XVS-8000-C/XVS-7000-C/XVS-6000-C
6-17
