Sony XVS-9000 Service Manual

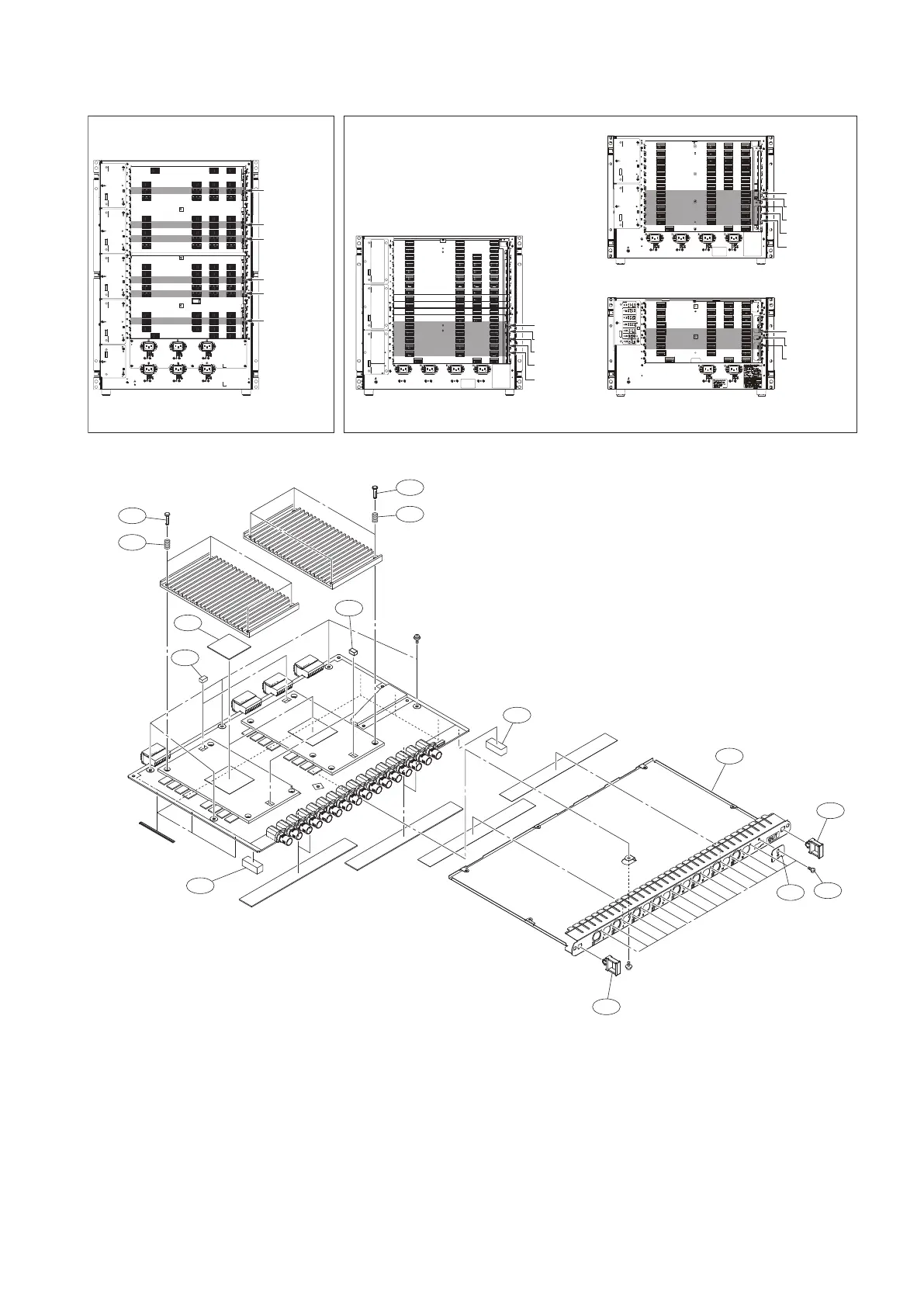

CNO-43/CNO-44/CNO-44A Boards
PSW
2.6 x 6
PSW
2.6 x 6
CNO-44 CNO-43/CNO-44A
Rear view
(XVS-9000)
SLOT No. 4
SLOT No. 23
SLOT No. 11
SLOT No. 9
SLOT No. 18
SLOT No. 16
Rear view
(XVS-8000)
Rear view
(XVS-7000)
Rear view
(XVS-6000)
1602
1602
1609
1601
1603
1607
1601
1608
1605
1604
1605
1604
1606
1606
SLOT No. 15
SLOT No. 16
SLOT No. 17
SLOT No. 13
SLOT No. 14
SLOT No. 10
SLOT No. 11
SLOT No. 12
SLOT No. 8
SLOT No. 9
SLOT No. 7
SLOT No. 5
SLOT No. 6
No. Part No. SP Description
1601 3-172-089-01 o HANDLE
1602 3-561-426-01 s CUSHION
1603 3-637-901-02 s SCREW M2.6X5
1604 4-143-557-01 s SPRING, COMPRESSION
1605 4-143-559-01 s PIN, PUSH
1606 4-470-978-01 s GASKET (DP)
1607 4-744-861-01 s LID, CONNECTOR
1608 4-744-862-01 s PANEL (12G-SDI OUT), CN
No. Part No. SP Description
1609 4-744-871-01 s SHEET (1 (38X38)),RADIATION
7-621-759-45 s +PSW, 2.6X6
XVS-9000-C/XVS-8000-C/XVS-7000-C/XVS-6000-C
6-38
