Sony XVS-9000 Service Manual

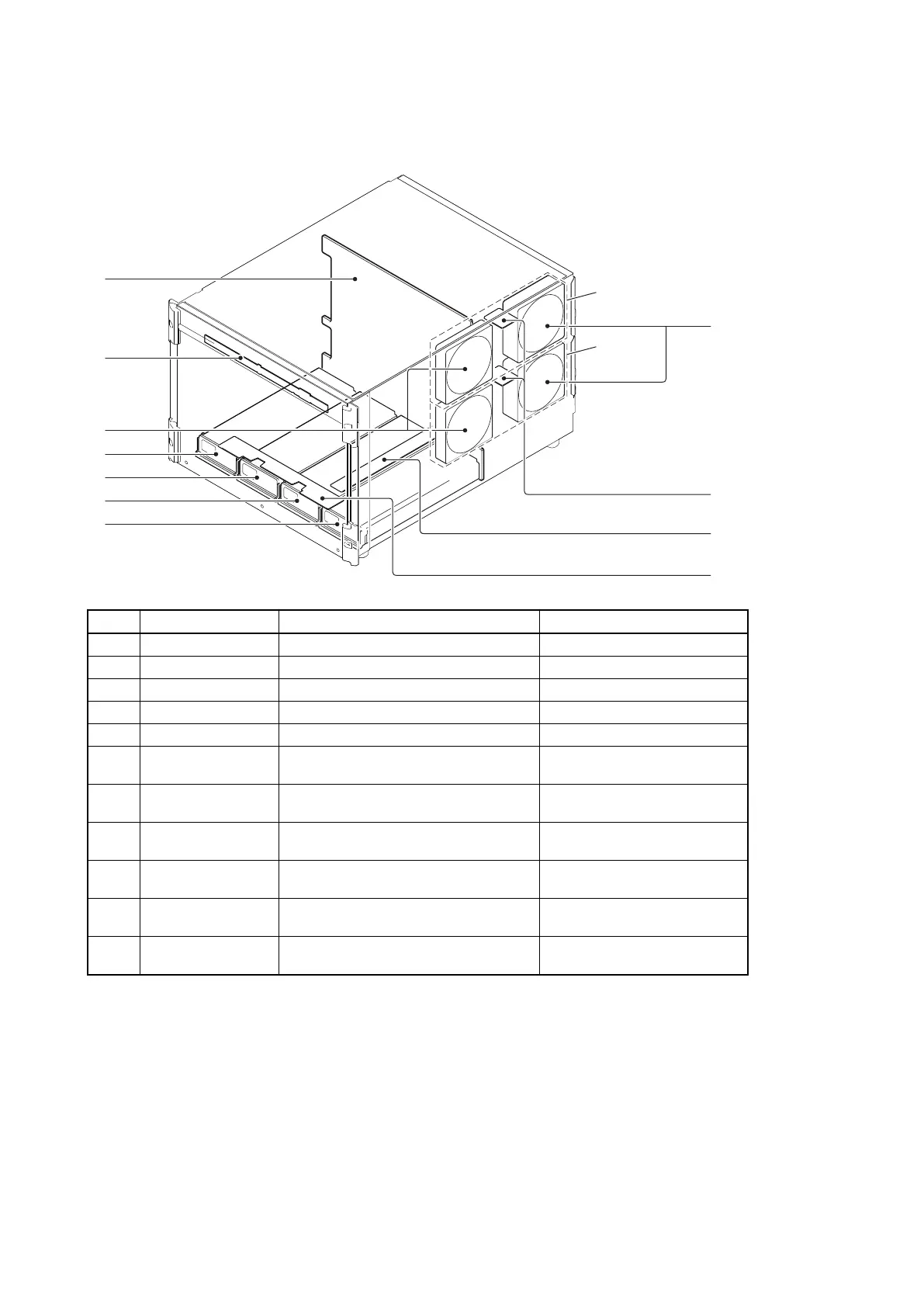

1-4-2. Other Parts
Fan slot A
Fan slot B
2
3
1
10
4
11
6
7
8
9
5
No. Name Function Remarks
1 CN-3824 board FAN connection board XVS-7000
2 CN-3825 board Switch board for PSU XVS-7000
3 CN-3826 board Relay board between front switch and PSU XVS-7000
4 FP-255 board Illuminated bar board XVS-7000
5 MB-1233 board Mother board XVS-7000
6 Switching regulator － Power supply unit A
(APS-406)
7 Switching regulator － Power supply unit B
(APS-406)
8 Switching regulator － Power supply unit C
(APS-406)
9 Switching regulator － Power supply unit D
(APS-406)
10 DC fan (120 square) － Right side of the XVS-7000
Rear side of the fan slot A, B
11 DC fan (120 square) － Right side of the XVS-7000
Front side of the fan slot A, B
XVS-9000-C/XVS-8000-C/XVS-7000-C/XVS-6000-C
1-8
