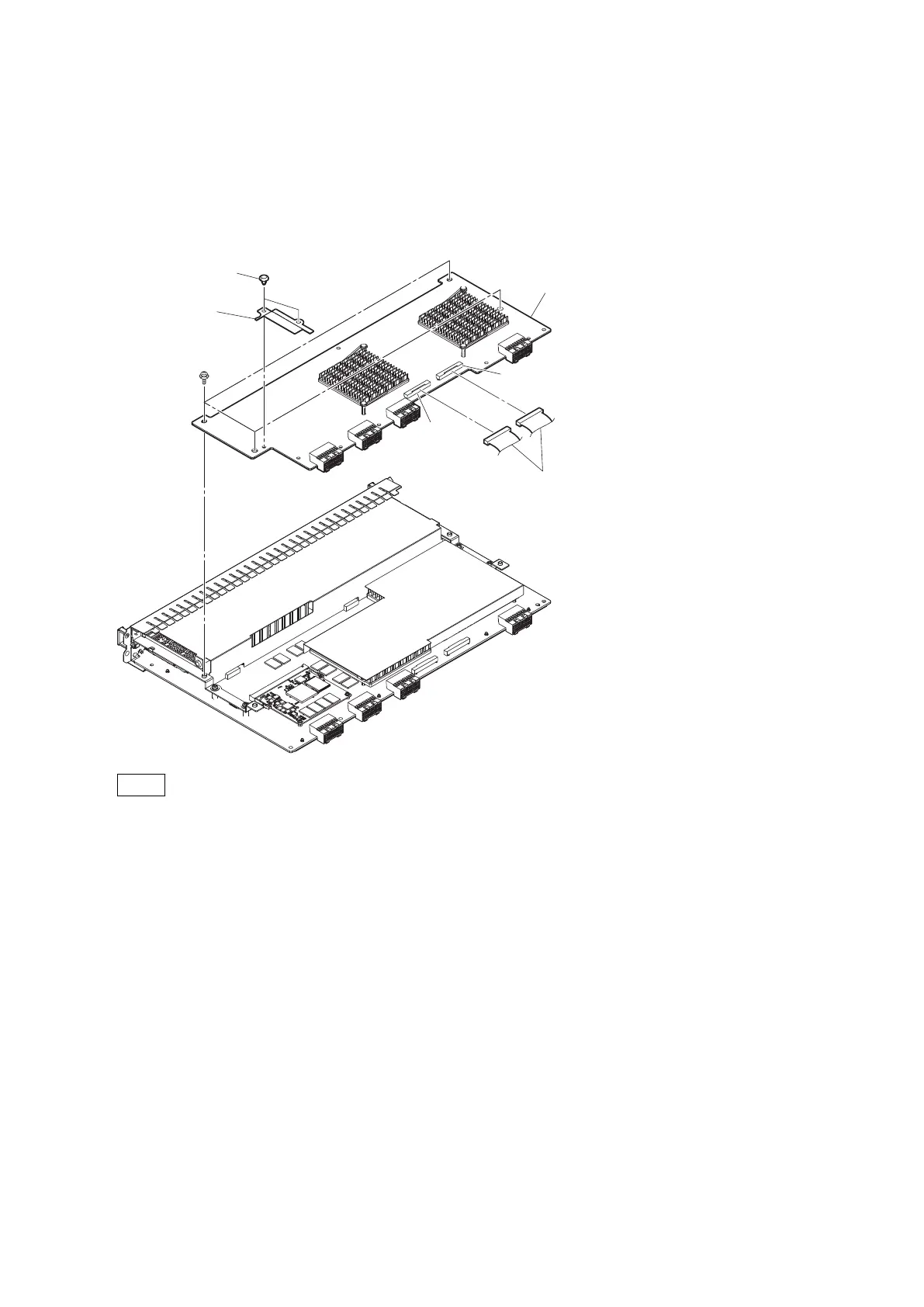

4-14. CNO-45 Board (XVS-9000)
Procedure
1. Disconnect the two flexible frat cables with connector from the connectors (CN301, CN302) on the CNO-45 board.
2. Remove the four screws (PSW3 x 6) , then remove the CNO-45 board.
3. Remove the two nylon rivets , then remove the air guide.
PSW
3 x 6
CN301
CN302
Nylon rivets
CNO-45 board
Air guide
(b)
(a)
Flexible frat cables
with connector
Note
When installing the CNO-45 board, tighten the screws in the following sequence: (a), (b), others.
4. Install the removed parts by reversing the steps of removal.
XVS-9000-C/XVS-8000-C/XVS-7000-C/XVS-6000-C
4-28
