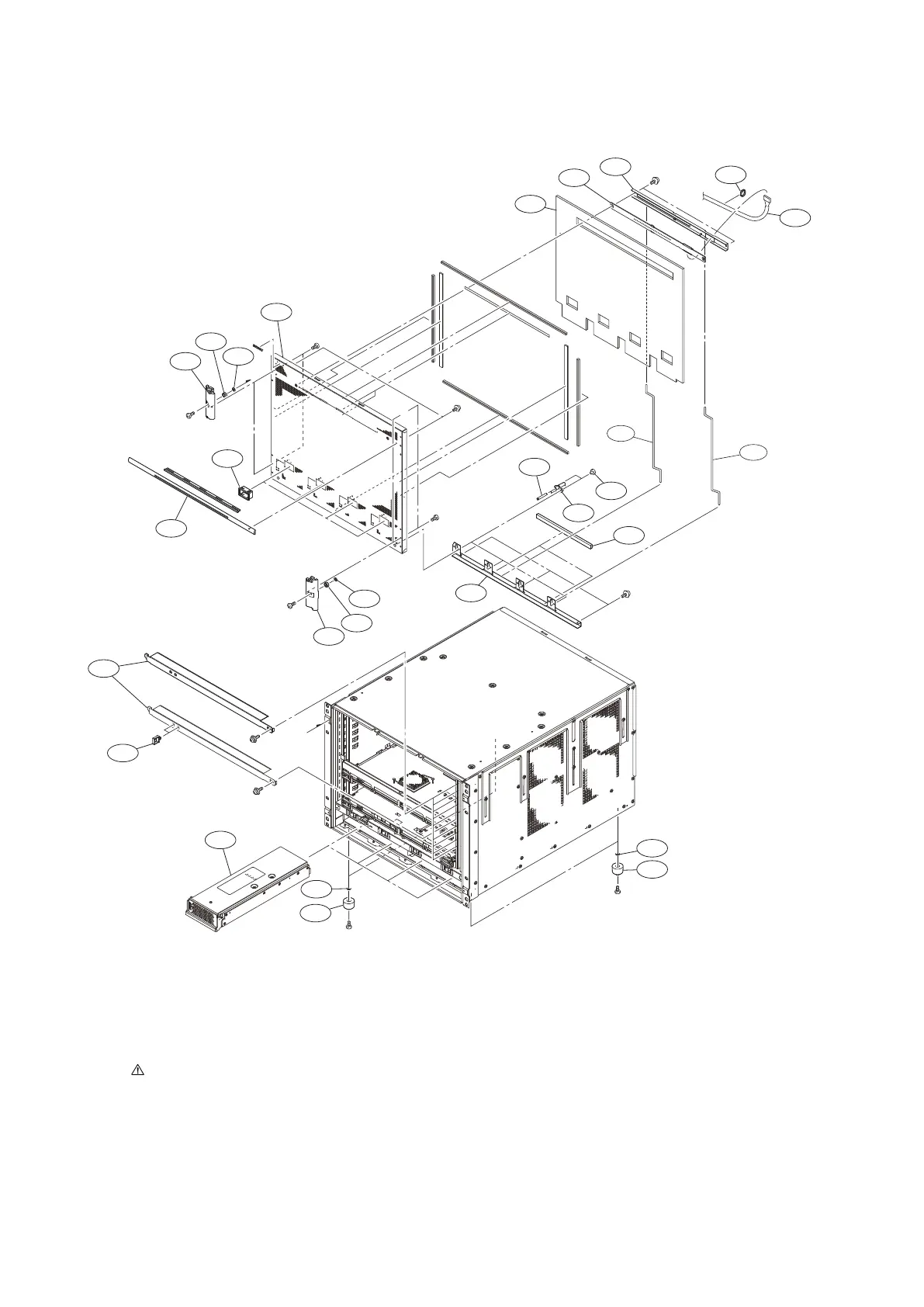

6-4. Exploded Views (XVS-7000)
Front Panel and Switching Regulator
8
5
17
1
19
18
10
9
7
12
11
10
6
4
7
3
7
16
13
20
15
14
3
2
9
7
B4 x 10
B4 x 10
B4 x 10
B4 x 10
PSW3 x 6
PSW3 x 6
PSW3 x 6
PSW3 x 6
PS3 x 6
PS3 x 6
PS2 x 4
21
21
No. Part No. SP Description
1 A-2082-235-A s FP-255 MOUNT
2 A-2107-154-A s FRONT BLANK ASSY
3 X-3605-751-1 s FOOT ASSY
4 1-474-652-13 s REGULATOR, SWITCHING
5 1-971-505-11 s HARNESS, SUB CN3825-FP-7K
6 3-172-089-01 o HANDLE
7 3-650-537-01 s WASHER
8 3-655-653-01 s BAND (TAITON), BINDING
9 3-994-237-01 s SPACER
10 4-170-582-02 s BRACKET, PANEL
11 4-183-472-01 s ESCUTCHEON
12 4-549-457-21 s PANEL (SIU), BAR
No. Part No. SP Description
13 4-586-400-01 s CUSHION, FRONT PSU
14 4-586-401-01 s LIGHT, GUIDE
15 4-586-402-01 s HOLDER
16 4-586-404-01 s BRACKET (FRP)
(S/N 10001 to 11000 (SY)
S/N 50001 to 51000 (CN))
4-586-404-02 s BRACKET (FRP)
(S/N 11001 and Higher (SY)
S/N 51001 and Higher (CN))
17 4-586-406-01 s BRACKET, BAR
(S/N 10001 to 11000 (SY)
S/N 50001 to 51000 (CN))
XVS-9000-C/XVS-8000-C/XVS-7000-C/XVS-6000-C
6-11
