Sony XVS-9000 Service Manual

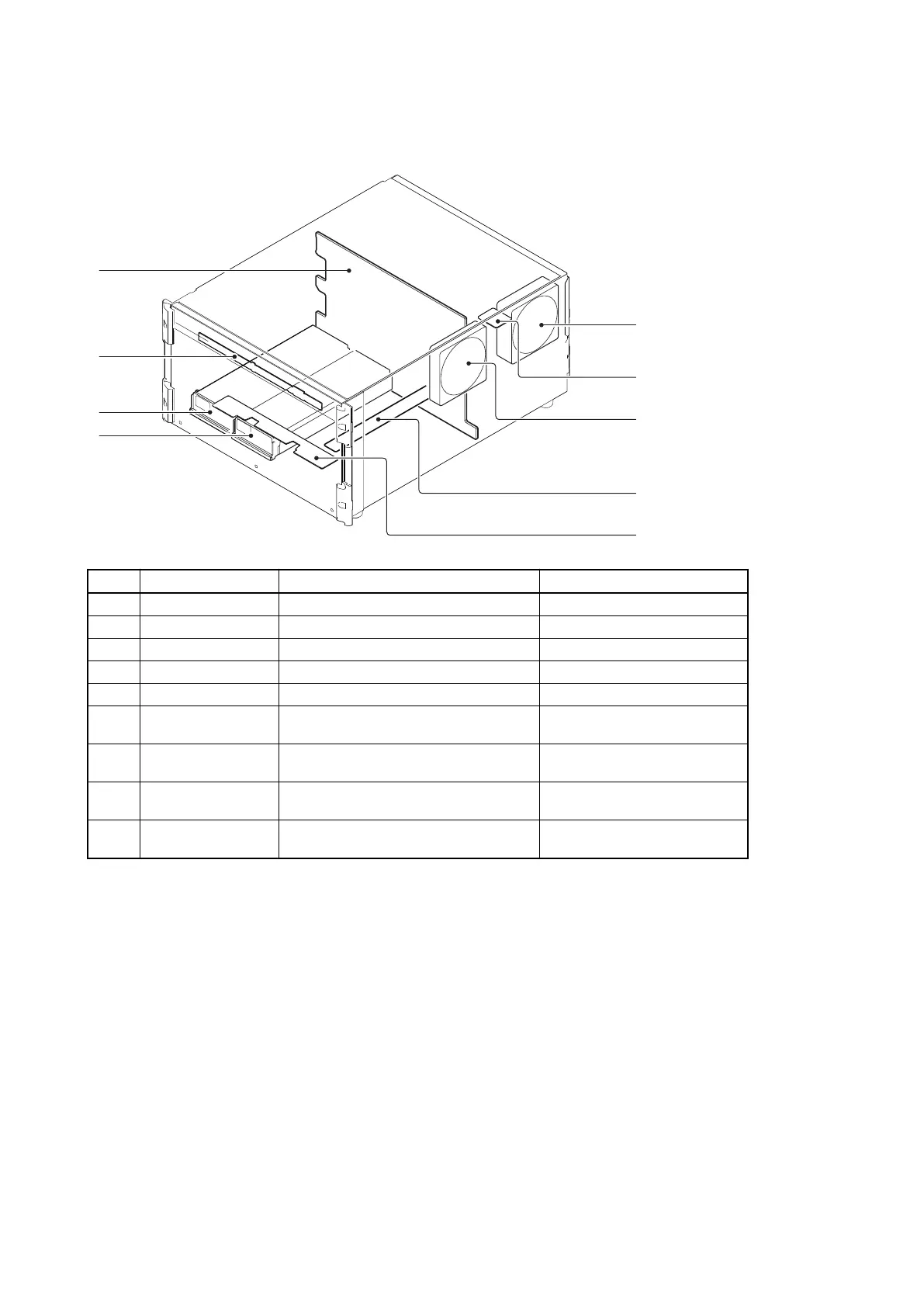

1-5-2. Other Parts
2
3
1
9
8
4
6
7
5
No. Name Function Remarks
1 CN-3824 board FAN connection board XVS-6000
2 CN-3825 board Switch board for PSU XVS-6000
3 CN-3826 board Relay board between front switch and PSU XVS-6000
4 FP-255 board Illuminated bar board XVS-6000
5 MB-1233 board Mother board XVS-6000
6 Switching regulator － Power supply unit A
(APS-406)
7 Switching regulator － Power supply unit B
(APS-406)
8 DC fan (120 square) － Right side of the XVS-6000
Rear side of the fan slot
9 DC fan (120 square) － Right side of the XVS-6000
Front side of the fan slot
XVS-9000-C/XVS-8000-C/XVS-7000-C/XVS-6000-C
1-10
