Sony XVS-9000 Service Manual

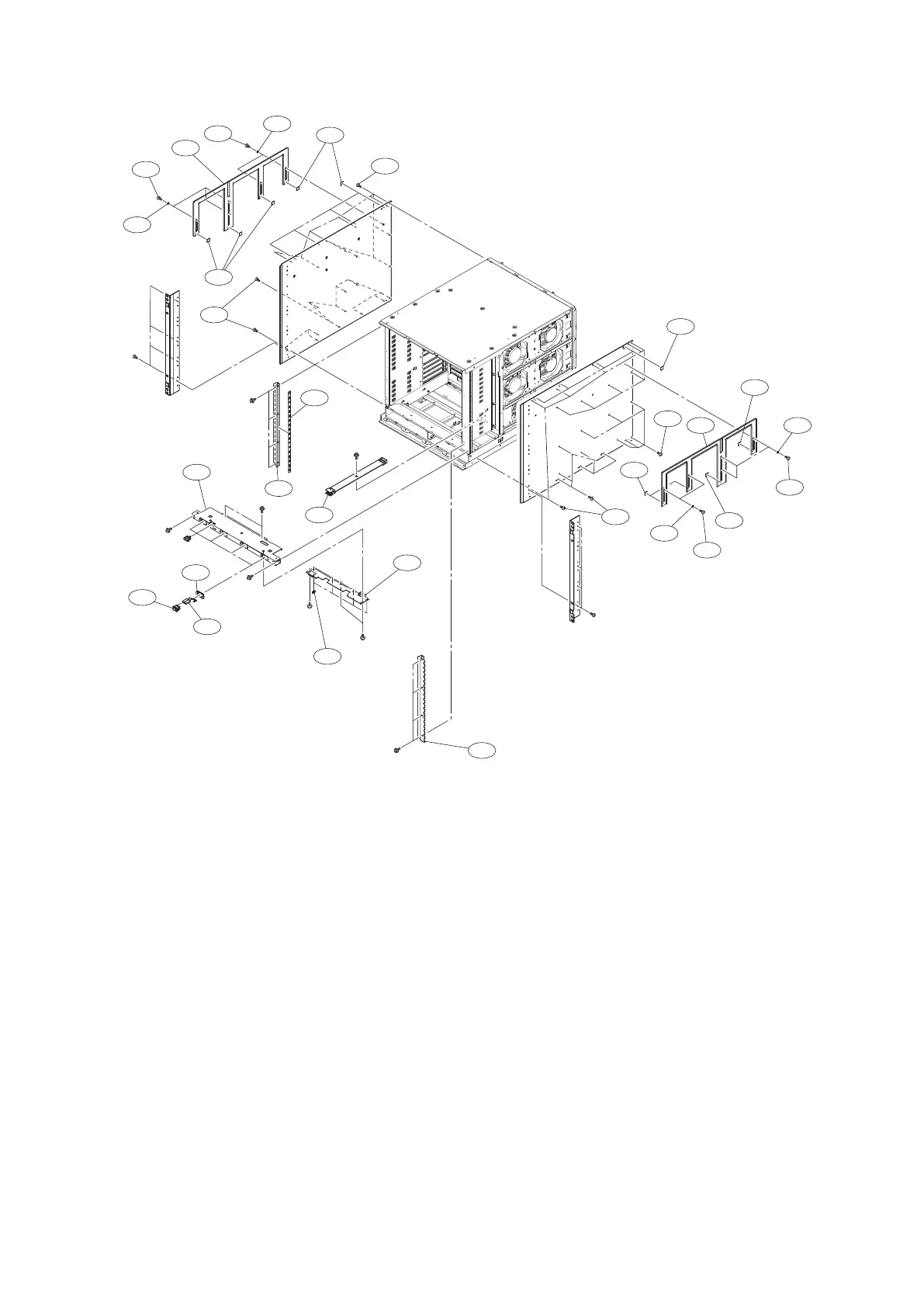

Main Chassis
B4 x 10
B4 x 10
PSW
3 x 6
PSW
3 x 6
PSW
3 x 6
PSW3 x 6
PSW
3 x 6
PSW
3 x 6
PSW3 x 6
PSW
3 x 6
115
114
112
113
115
115
105
105
114
113
113
115
105
106
106
112
102
107
101
111
103
109
108
104
110
105
106
106
113
113
No. Part No. SP Description
101 A-2082-233-A s MOUNTED CIRCUIT BOARD, CN-3825
102 A-2082-234-A s MOUNTED CIRCUIT BOARD, CN-3826
103 1-798-563-11 s SWITCH, POWER
104 1-971-158-11 s HARNESS, SUB CN3825-SW
105 3-701-443-21 s WASHER, 5 DIA.
106 3-733-690-01 s +B 4X6 (CU,NI)
107 4-098-036-01 s SADDLE WIRE (A)
108 4-586-452-01 s PANEL, SW
109 4-586-453-01 s COVER,SWITCH
110 4-586-454-01 s LABEL, SLOT NUMBER
111 4-586-456-01 s PLATE (R), LOCK
112 4-586-457-01 s PLATE (L), LOCK
113 4-586-460-01 s CUSHION,HANDLE VIBRATION PROOF
114 4-586-463-01 s HANDLE
115 4-884-982-03 s SCREW, STEP
7-682-562-04 s SCREW +B 4X10
7-682-947-01 s SCREW +PSW 3X6
XVS-9000-C/XVS-8000-C/XVS-7000-C/XVS-6000-C
6-9
