Sony XVS-9000 Service Manual

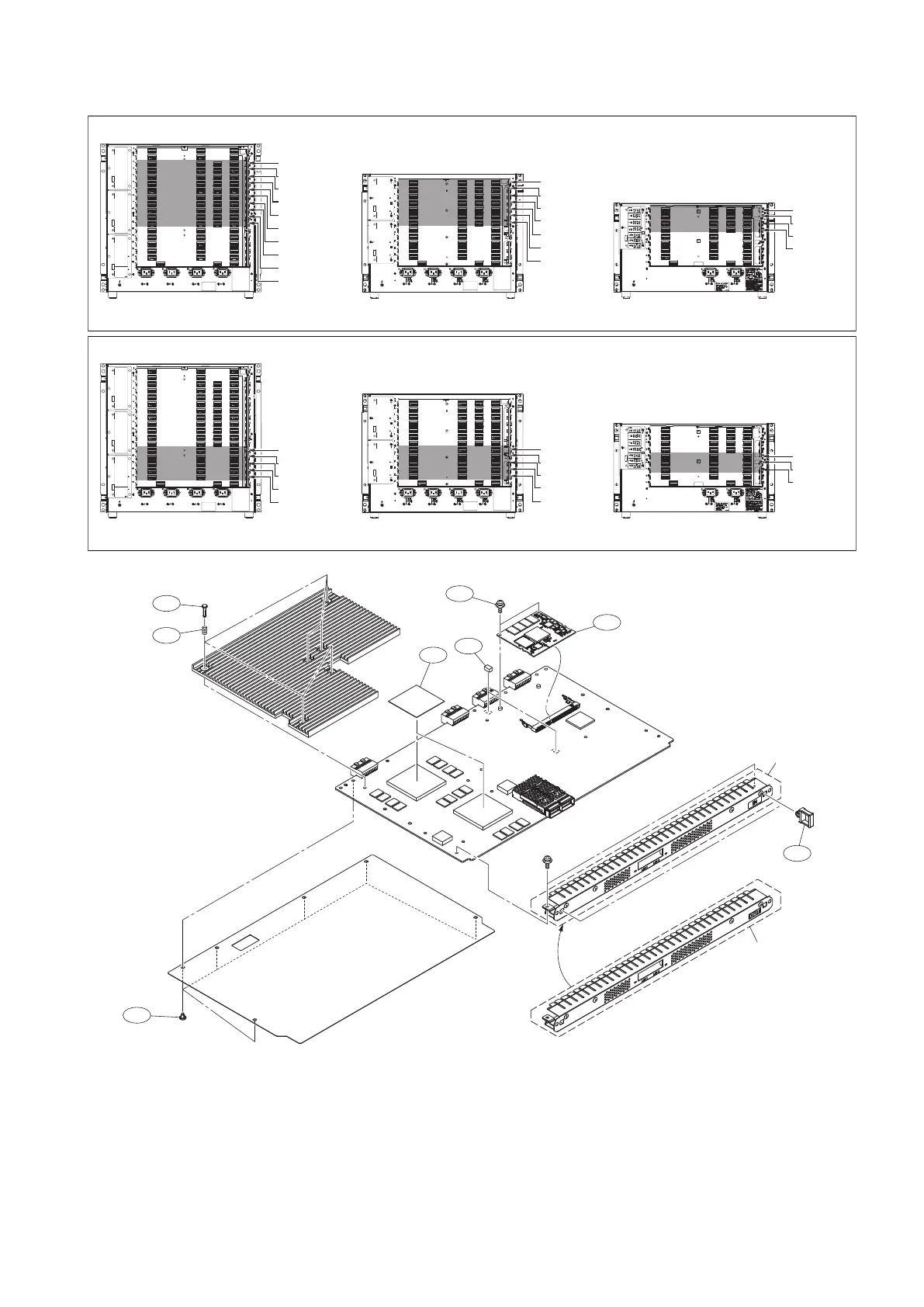

NET-42A/NET-42B Boards
SLOT No. 5
SLOT No. 6
SLOT No. 7
SLOT No. 8
SLOT No. 9
SLOT No. 10
SLOT No. 11
SLOT No. 12
SLOT No. 3
SLOT No. 4
SLOT No. 3
SLOT No. 4
SLOT No. 5
SLOT No. 6
SLOT No. 7
SLOT No. 1
SLOT No. 2
SLOT No. 3
SLOT No. 4
SLOT No. 1
SLOT No. 2
NET-42A
Rear view
(XVS-8000)
Rear view
(XVS-7000)
Rear view
(XVS-6000)
SLOT No. 15
SLOT No. 16
SLOT No. 17
SLOT No. 13
SLOT No. 14
SLOT No. 10
SLOT No. 11
SLOT No. 12
SLOT No. 8
SLOT No. 9
SLOT No. 7
SLOT No. 5
SLOT No. 6
NET-42B
Rear view
(XVS-8000)
Rear view
(XVS-7000)
Rear view
(XVS-6000)
PSW
2.6 x 6
NET-42A
NET-42B
1701
1703
1704
1705
1708
1707
1706
1702
No. Part No. SP Description
1701 A-2228-998-A s MPU-163B COMPL
1702 2-640-315-02 o SCREW (M2X5), SMALL, +P, SW
1703 3-172-089-01 o HANDLE
1704 3-531-576-11 s RIVET
1705 3-561-426-01 s CUSHION
1706 4-143-557-01 s SPRING, COMPRESSION
No. Part No. SP Description
1707 4-143-559-01 s PIN, PUSH
1708 4-744-871-01 s SHEET (1 (38X38)), RADIATION
7-621-759-45 s +PSW, 2.6X6
XVS-9000-C/XVS-8000-C/XVS-7000-C/XVS-6000-C
6-39
