6 — Routine Maintenance
147
10432589_G AMSCO® 7000 Series
Operator Manual

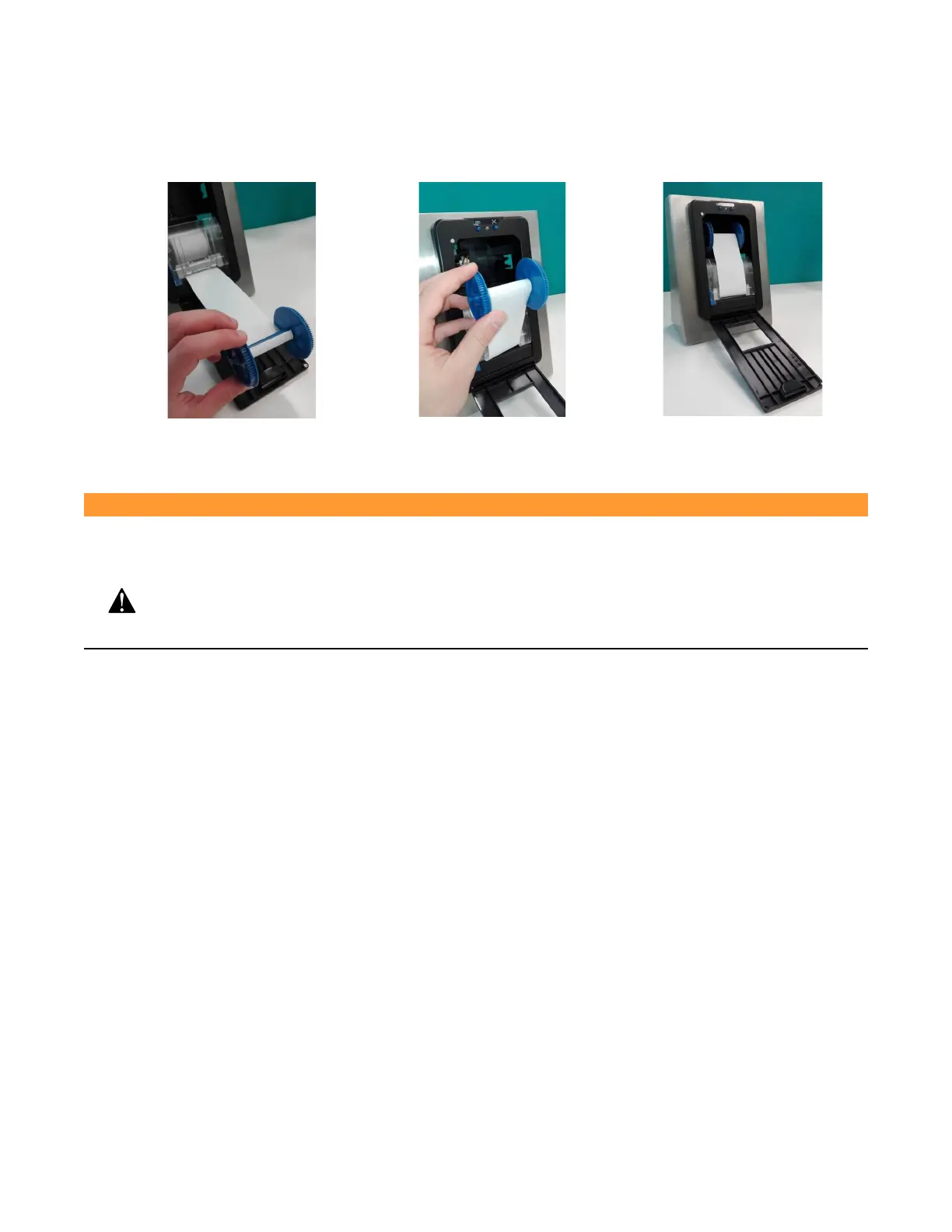

10. Insert spool in printer housing seat. If there is not enough paper, feed some additional paper using Feed button.
11. Once paper is installed and loaded, feed a few centimeters of paper using Feed button to adjust paper path
alignment and to ensure complete paper tensioning.
6.11 Inspecting and Cleaning Rotary Spray Arm Assemblies AMSCO 7052HP W/D
WARNING
SLIPPING HAZARD
To prevent slips, keep floors dry. Promptly clean up any spills or drippage. For spills or
drippage of detergents or other chemicals, follow safety precautions and handling
procedures set forth on detergent or chemical label and/or Safety Data Sheet (SDS).
Once a week, inspect and clean chamber rotary spray arm assemblies as follows:
1. Top rotary spray arm assembly:
a. Remove pin securing top rotary spray arm assembly to chamber ceiling.
b. Remove and lower top rotary spray arm assembly.
c. Remove safety latches securing both arm assembly spray jets.
d. Remove end spray jets and put safely aside.
NOTE: End spray jets do not need to be disassembled for cleaning but need to be reinstalled at their
original location.
IMPORTANT: Spray jets have two specific positions: First position is for thruster spray function. Second position is
for corner spray function.
e. Use special tool provided with unit or a fine wire (approximately wire gauge of a paper clip) to gently clean
sediment from spray nozzles and end spray jets. Rinse under running water.
f. Rinse left and right spray arms under running water to clean out sediment.
g. Reinstall end spray jets on arm assembly using previously removed safety latches.
h. Once cleaning procedure is completed, reinstall rotary spray arm assembly to chamber ceiling using
previously removed pin.
2. Bottom rotary spray arm assembly:
a. Release latches securing both arm assembly end spray jets.
